OM-193 472 Page 10
3-3. Gun Recommendation Table
Process Gun
GMAW − Hard or Corded Wires M25 Or M40
FCAW − Self-Shielding Wires GA-40GL
1 CV Welding Power Source
With 24 VAC Power
2 CV Welding Power Source
Without 24 VAC Power
3 115 Volts AC /24 Volts AC
Power Adapter
4 14-Pin Control Cord
5 Weld Cable (Required)
6 Work

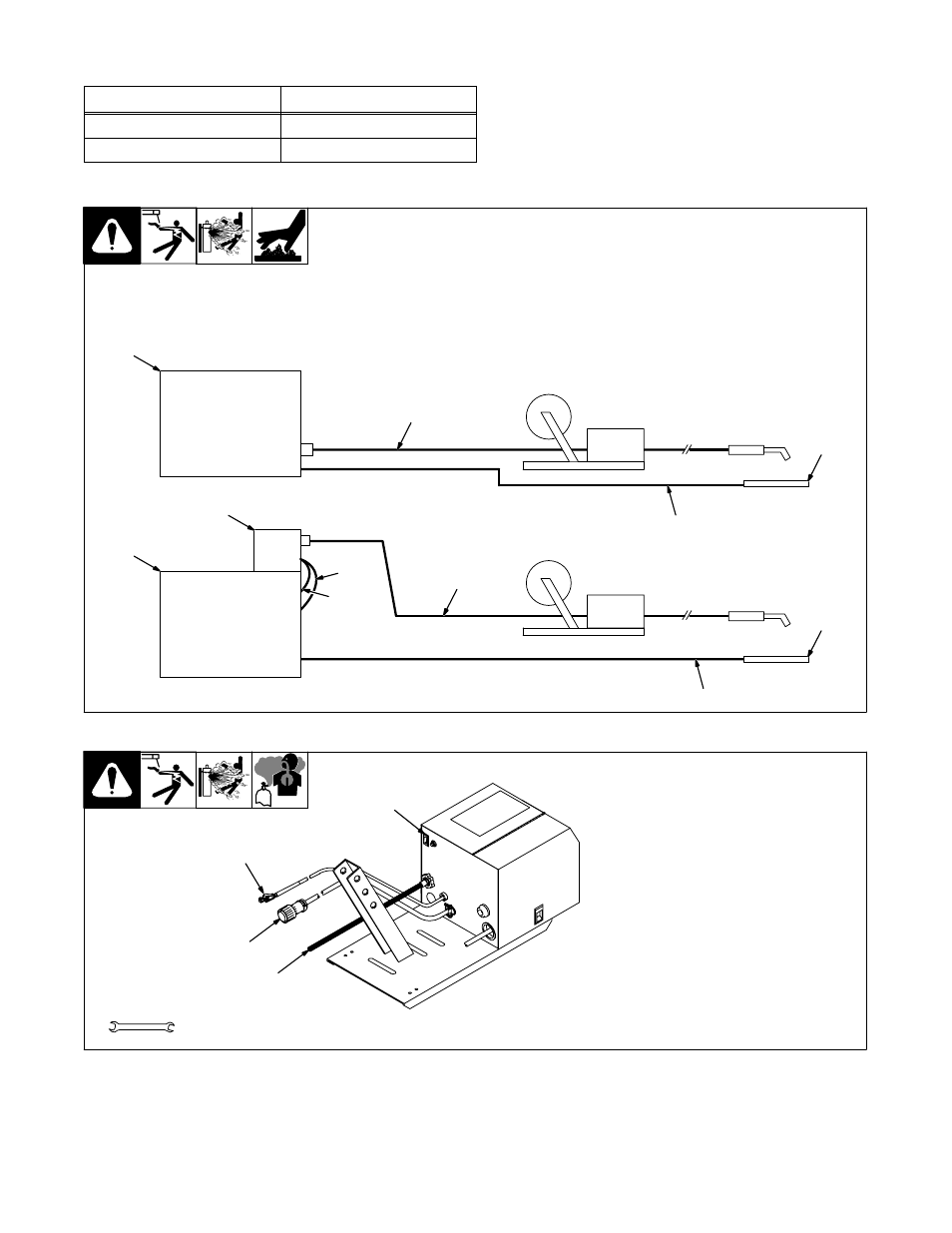

3-4. Equipment Connection Diagrams
115VAC
Contactor
3
2
6
6
5
5
4
1
4
1 Gas Hose With 5/8-18 Right-
hand Thread Fittings
(Customer Supplied)
.
Shielding gas pressure not to
exceed 100 PSI (689 kPa).
2 14 Pin Plug PLG2
Use plug to make connection to
welding power source.
3
Optional Volt Sense Lead
(Part Of Meter Option)
Connect to work.
4
Power Switch
3-5. 14-Pin Plug, Shielding Gas And Optional Volt Sense Lead
802 349-A
Tools Needed:
1
3
4
5/8, 11/16 in
2
