6

FUNCTIONAL
DESCRIPTION

CAUTION:

Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

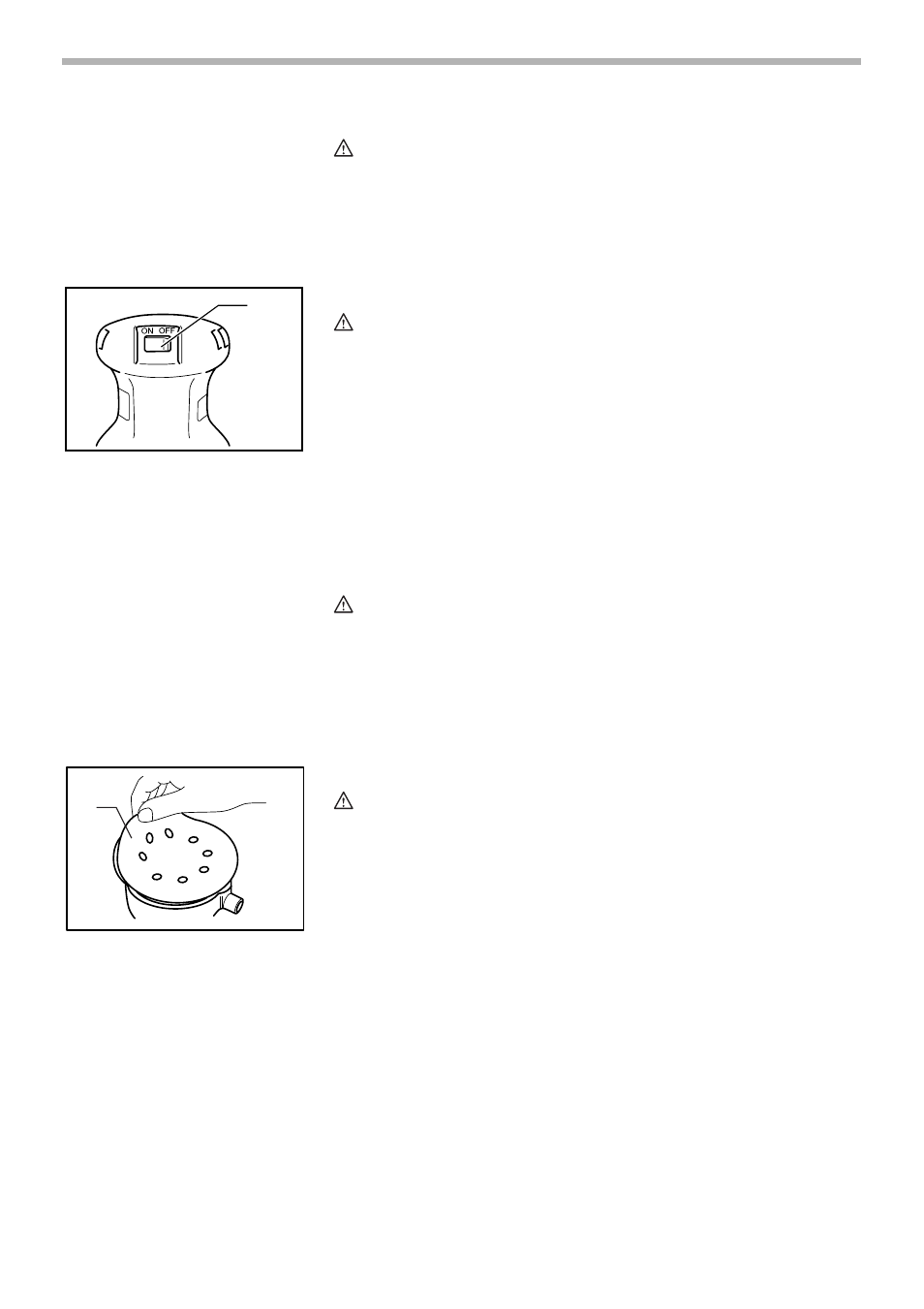

Switch action

CAUTION:

Before plugging in the tool, always check to see that the
tool is switched off.

Switch can be locked in “ON” position for ease of
operator comfort during extended use. Apply caution
when locking tool in “ON” position and maintain firm
grasp on tool.

To start the tool, press the “ON ( I )” side of the switch. To
stop the tool, press the “OFF (O)” side of the switch.

ASSEMBLY

CAUTION:

Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.

Installing or removing abrasive disc

For BO5010

CAUTION:

Always use hook-and-loop system abrasive discs. Never
use pressure-sensitive abrasive discs.

To install the abrasive disc, first remove all dirt or foreign
matter from the pad. Then attach the abrasive disc to the
pad, using the hook-and-loop system of the abrasive disc
and the pad. Be careful to align the holes in the abrasive disc
with those in the pad.

For BO5011

To install the abrasive disc, first remove all dirt or foreign
matter from the pad. Then peel off the backing paper from
the abrasive disc and attach the abrasive disc to the pad. Be
careful to align the holes in the abrasive disc with those in
the pad.

1. Switch

1

003285

1

003299
