7

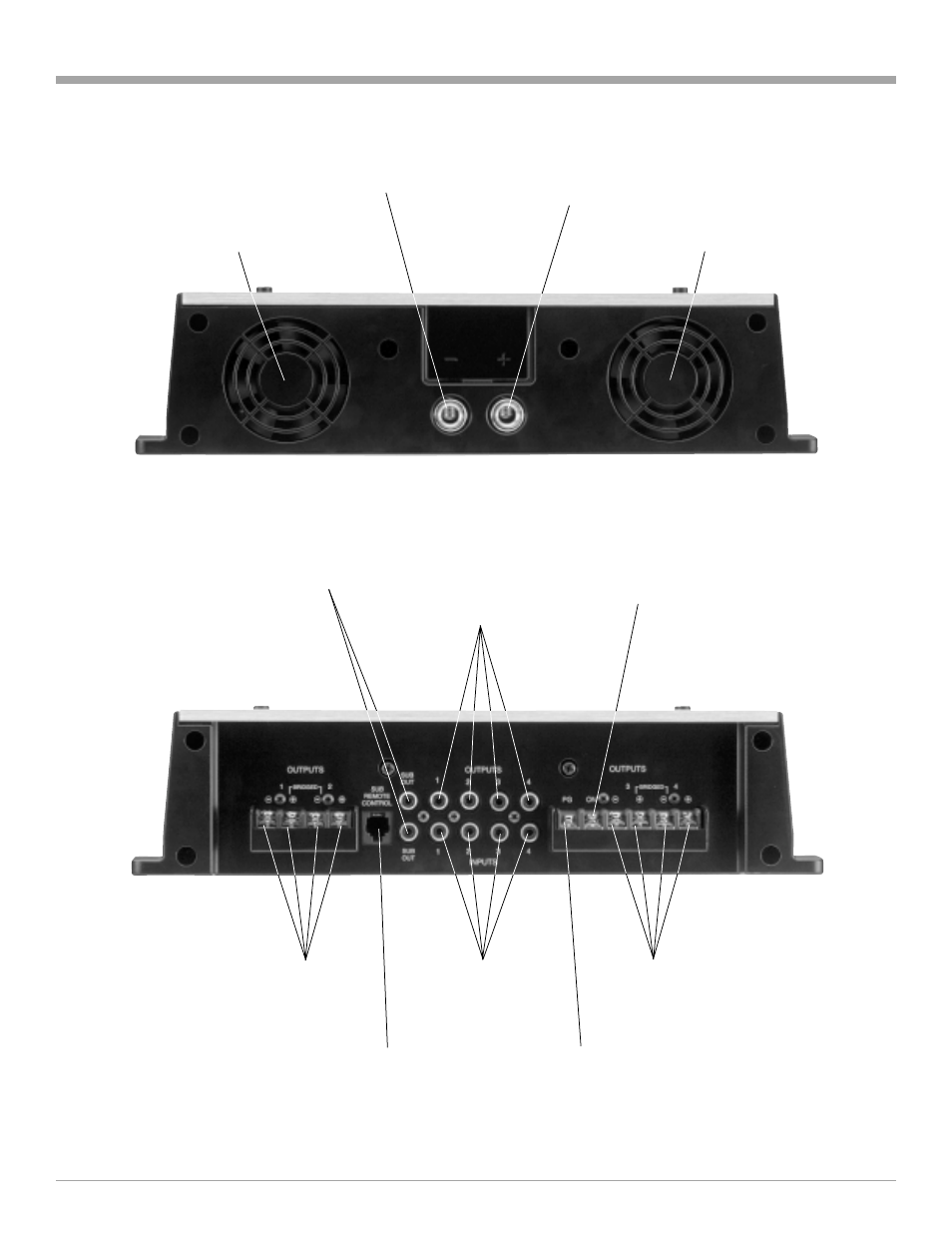

Side Panel Cooling and Connections
Connect to the positve (+)
vehicle battery terminal
with an inline fuse
INPUTs for
audio cables
from a signal
source
Cooling Fan
Air Intake
Controls the Power Guard
Circuit when connected to
certain McIntosh Control
Centers
Cooling Fan
Air Intake
OUTPUT Connections
for 2, 4 or 8 ohm loud-
speakers
SUBWOOFER OUTPUTS
supplies a four channel
summed output
Receives the Amplifier
Turn-ON signal from a
McIntosh Control Center
Connect to the Negative (-)
vehicle battery terminal
OUTPUT Connections
for 2, 4 or 8 ohm loud-
speakers
Connector for optional
Subwoofer Remote
Volume Control
OUTPUTs from the
INPUT Signal Source
to connect to the an-
other Power Amplifier
