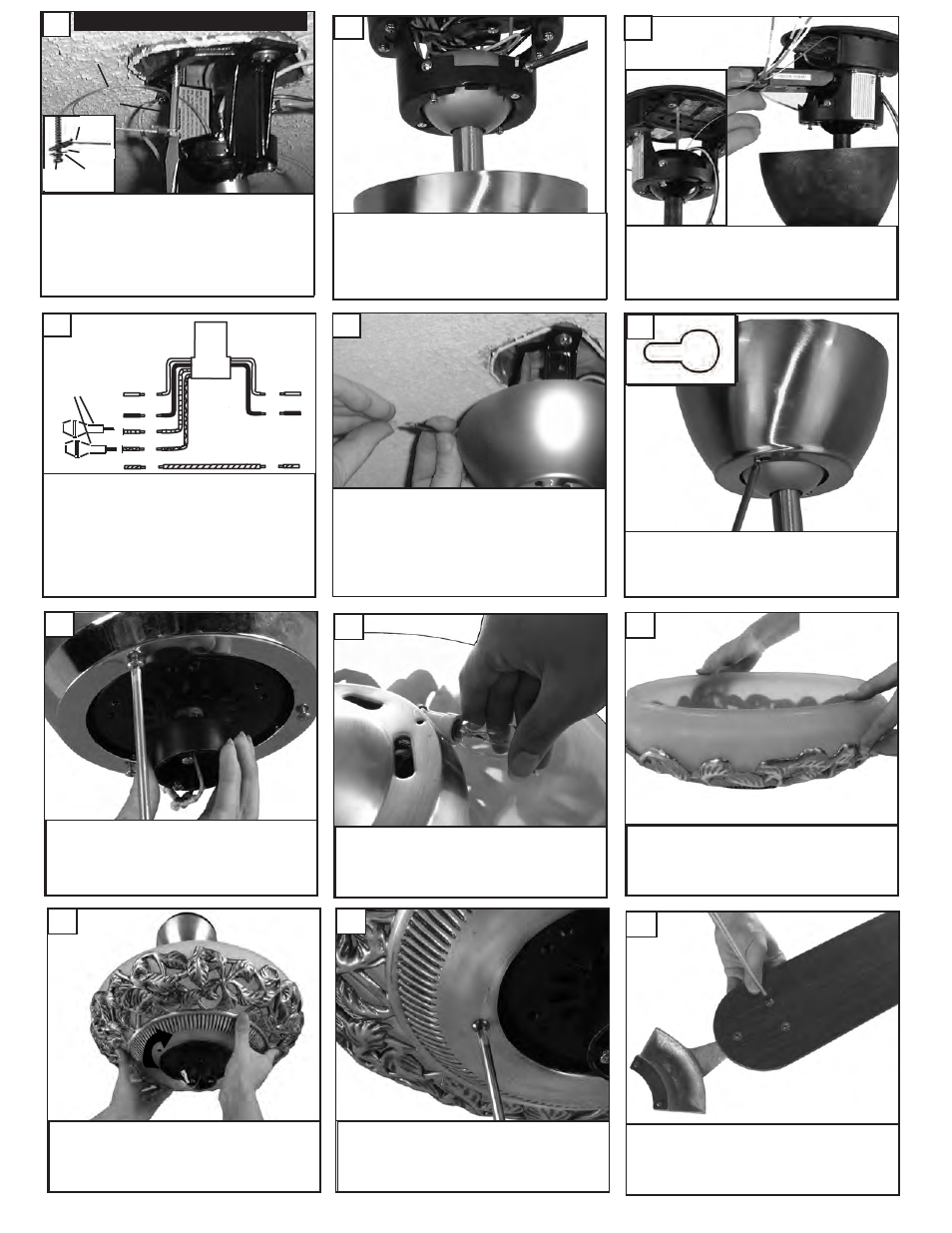

Lift Canopy to ceiling aligning the key hole slots
with the screws on the bottom of the Mounting
bracket. Rotate the canopy Counter Clockwise
to lock in place. Tighten the screws to secure
the Canopy. See inset for Keyhole shape
24
Attach blades to blade arms with
screws and washers supplied. Repeat
for all 5 blades.
30
Re-install safety bar removed in step
3 by placing safety bar on screws,
sliding into place, and tightening the
2 screws.
20
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wire nut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
23
Install 4 x 25 watt candelabra bulbs.
26
Install assembled ornate glass cover
and glass to fan body by twisting in
direction of arrow to hold in place.
28
Tighten all 3 screws securely loos-
ened in step 25.
29
Loosen 2 screws with key hole slots
and remove 1 screw.
25
Place glass into ornate glass cover.
27
Install remote receiver by sliding into
opening in the Mounting bracket. Make
sure that the dip switches on the
Transmitter and the Receiver are set to
the same position.
21
Fan and light kit combinations over 70 lbs, in
both flush and downrod mode the safety cable
must be installed into the house structure
beams using the 3” lag screws,washers, and
lock washers. provided. Make sure that when
the safety cable is fully extended the lead wires
are longer than the cable and no stress is
placed on the lead wires.
19
Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw
lock
washer
washer
white
black
Make wiring connections as indicated above.
White from fan to white from remote marked
N. Orange from fan to Orange from remote
marked Light/up. Blue from fan to blue from
remote marked down light. Black from fan to
Black from remote marked L. White from
house to white from remote marked AC N .
Black from house to Black from remote
marked AC L. Connect all green ground wires
to Ground wire from House.
orange
blue
Green
white
black
House
Fan
22
