MDDM-00071B page 2 of 2

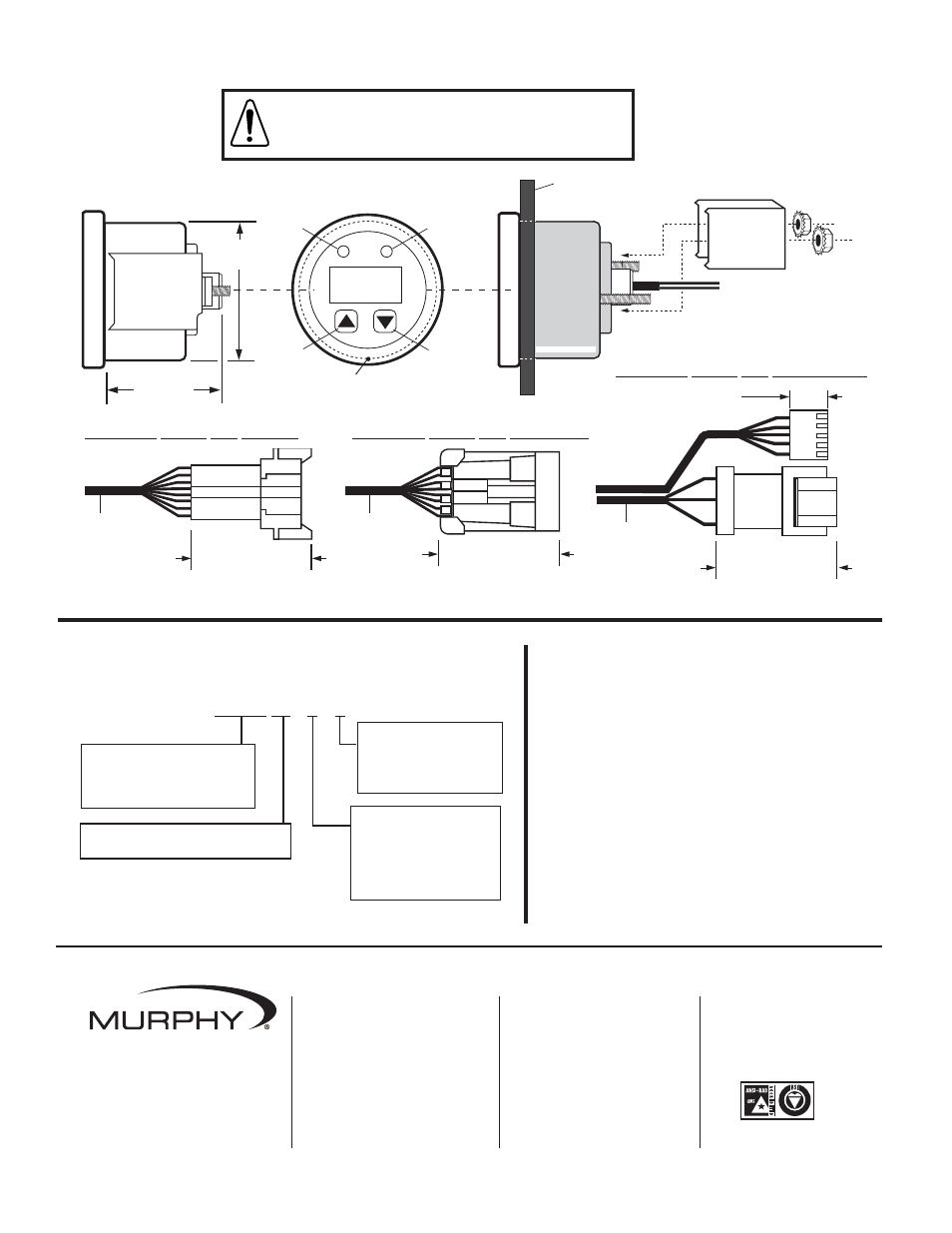

Dimensions

How to Order

To order the MDDM use the model number designation diagram below.

Connector
B =
Deutsch

TM

(DT04-08PA)

C = Metri-Pack

TM

(12047931)

D = AMP/Deutsch

TM

(12047931)

Model
MDDM =
Murphy Display and

Diagnostic Module

Size
20 =
2-1/16 in. (52 mm) Mounting hole.

Bezel Type

Blank = A-20 Type
A = A-20 Type Black
B = SAE Type Low Profile

MDDM 20 – B – B

Mounting Hole

Ø2.062 in. (52 mm) Dia.

Scroll Up

Scroll

Down

Shutdown

(LED) Red

Alarm (LED)

Amber

2.13 in.

(54 mm)

Ø2.03 in.

(52 mm)

Panel

0.30 in. (8 mm)

maximum thickness

MDDM

Mounting
Clamp

Mounting
Clamp

P/N: 12047931

8-Way Connector

1.88 in. (48 mm)

Wires Length
3 in. (76 mm)

Wires Length
3 in. (76 mm)

Wires Length

25 in. (635 mm)

P/N: DT04-08PA
8-Way Connector

1.78 in. (45 mm)

P/N: DT04-3P

3-Way Connector

1.78 in. (45 mm)

P/N: MTA-156

5-Way Connector

0.656 in. (17 mm)

Accessories
MurphyLink

TM

Analog Gages

MLA20-A-100-A = Oil Engine Pressure
MLA20-B-250-A = Coolant Temperature
MLA20-C-12-A = Voltmeter 12 VDC
MLA20-C-24-A = Voltmeter 24 VDC
MLA20-D-100-A = Percent Load @Current Speed
MLA20-E-400-A = Gear Oil Pressure
MLA20-F-250-A = Gear Oil Temperature
MLA35-T-3000-A = Tachometer
MLA35-S-85-A = Speedometer
MLAA20 = Audible Alarm
MLVC2412 = Regulator for 24 VDC systems

Connector Option “D” AMP/Deutsch

TM

Connector Option “C” Metri-Pack

TM

IMPORTANT:

The MDDM display is best viewed

either straight on or at the 6 o’clock position.

Connector Option “B” Deutsch

TM
