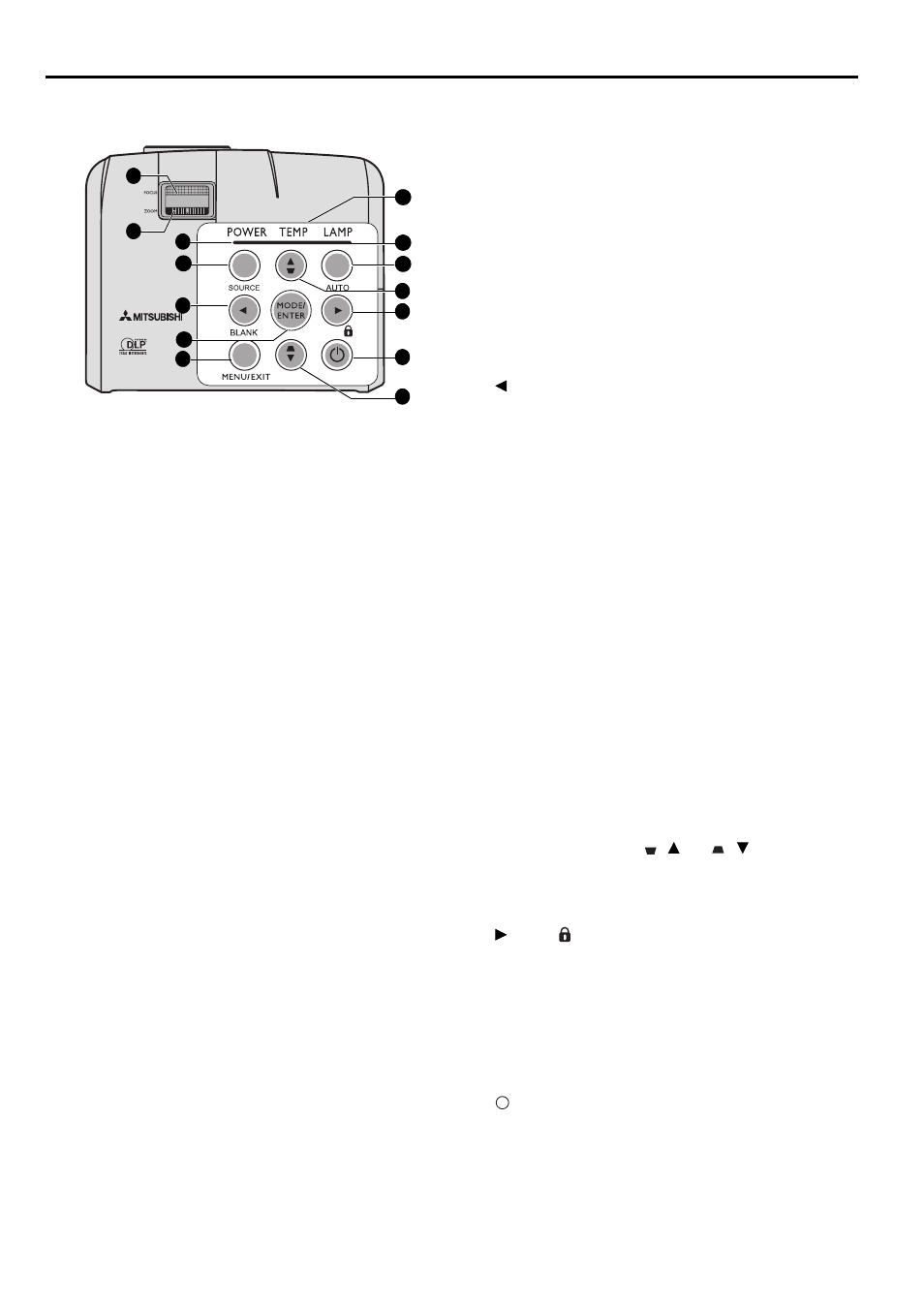

Controls and functions
Projector
1.
Focus ring
Adjusts the focus of the projected image. See
tuning the image size and clarity" on page 23
for details.
2.
Zoom ring
Adjusts the size of the image. See
image size and clarity" on page 23
3.
POWER indicator light
Lights up or flashes when the projector is under
operation. See
4.
SOURCE
Displays the source selection bar. See
for details.
5.
Left/BLANK
Used to hide the screen picture. See
6.
MODE/ENTER
Selects an available picture setup mode. See
Enacts the selected On-Screen Display (OSD) menu
item.
7.
MENU/EXIT
Turns on the On-Screen Display (OSD) menu. Goes
back to previous OSD menu, exits and saves menu
settings. See
for details.
8.
TEMPerature indicator light
Lights up red if the projector's temperature becomes too
high. See
for details.
9.
LAMP indicator light
Indicates the status of the lamp. Lights up or flashes
when the lamp has developed a problem. See
for details.
10. AUTO
Automatically determines the best picture timings for the
displayed image. See
for details.
11.
Keystone/Arrow keys (
/ Up,
/
Down)
Manually corrects distorted images resulting from an
angled projection. See
"Correcting keystone" on page 24
for details.
12.
Right/
for details.
When the On-Screen Display (OSD) menu is activated,
the #5, #11, and #12 keys are used as directional arrows
to select the desired menu items and to make
adjustments. See
details.
13.
POWER
Toggles the projector between standby mode and on. See
"Starting up the projector" on page 19
down the projector" on page 31
for details.
