NOTE: The MCP 5000iE and 7000iE's AC input must be connected to an AC circut breaker
which will provide for an emergency power off.
(Must be performed by Authorized
Service Personnel ONLY)
Model MCP 5000iE MCP7000iE
Input Circuit Breaker 40 Amp 50 Amp
Input Wire Size/Temp 8 AWG/min75
°
C 6 AWG/min75
°
C
Wire Conductor Three conductor, copper wire only
Tightening torque for
pressure wire connectors
having screws

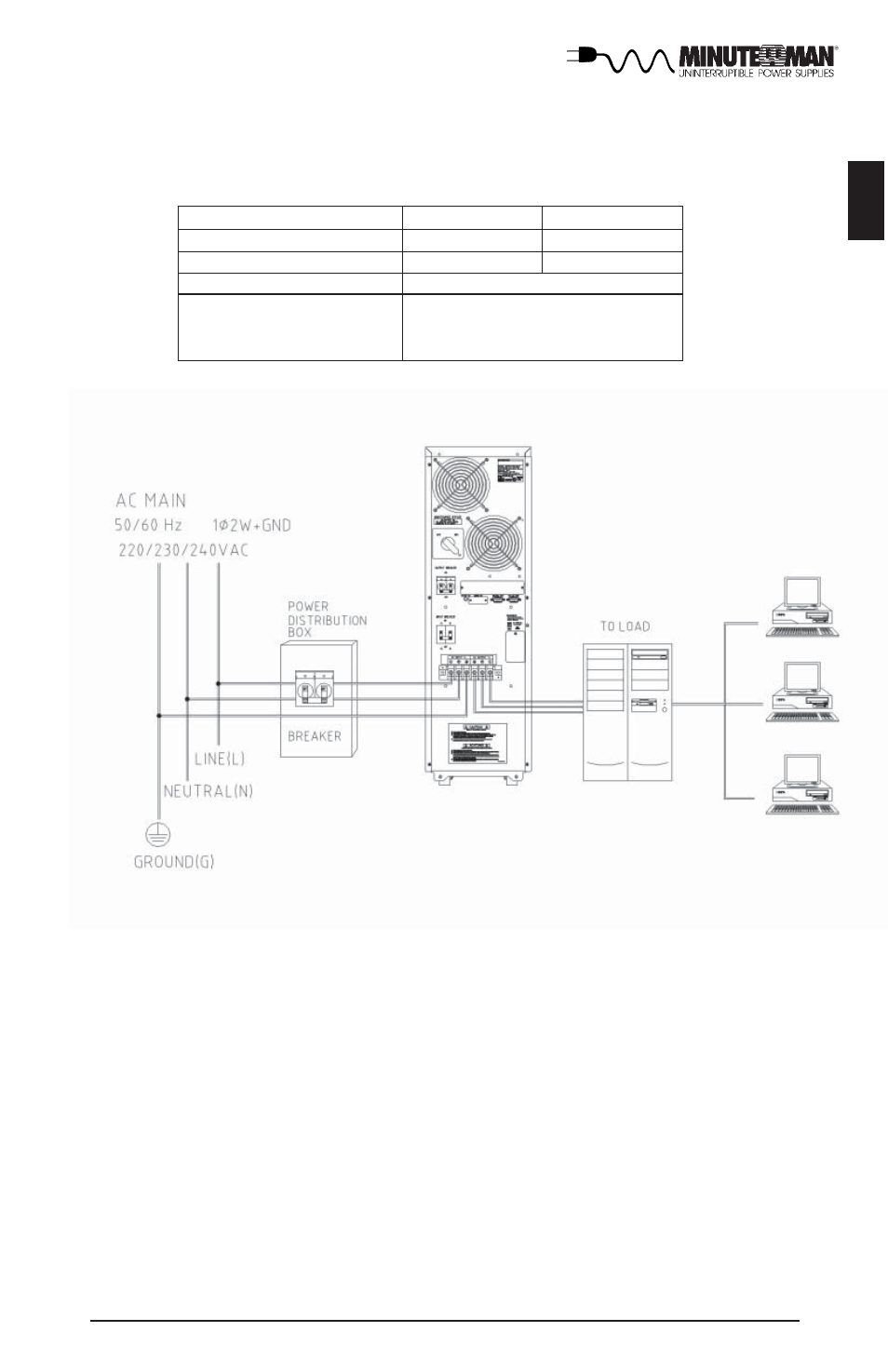

Block diagram of the MCP 5000iE and MCP 7000iE input and output wiring.
English
Torque 17.6Lbs (8kg)
