39
Specifications: PD-6130
Screen Size 53.2"(H) ן29.9"(V) inches
1351(H) ן760(V) mm
diagonal 61"
Aspect Ratio 16 : 9
Resolution 1365(H) ן768(V) pixels
Pixel Pitch 0.039"(H) ן0.039"(V) inches
0.99(H) ן0.99(V) mm
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*1 , DVD*1 , DTV*1
Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)
RGB
Visual 1 (Analog) mini D-sub 15-pin ן1
Visual 2 (Analog) BNC (R, G, B, H/CS, V) ן1* 2
Visual 3 (Digital) DVI-D 24-pin ן1
Video
Visual 1 BNC ן1
Visual 2 RCA-pin ן1
Visual 3 S-Video: DIN 4-pin ן1
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR]) ן1* 1
Visual 2 BNC (Y, PB[CB], PR[CR]) ן1* 1, * 2
Audio Stereo RCA ן3 (Selectable)
RS-232C Control D-sub 9-pin ן1 (RS-232C)
Sound output 9W+9W at 6 ohm
Power Supply AC120V 50/60Hz
Current Rating 6.7A (maximum)
Power Consumption 540W (typical)
Dimensions 57.9 (W) ן34.7 (H)ן4.8 (D) inches
1470 (W) ן880 (H)ן122(D) mm
Weight 136.9 lbs / 62.2 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Altitude 0 to 9180 feet / 0 to 2800 m
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Altitude 0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ Menu control
Remote Control Functions Power on/off, Input source select, Menu
control,Volume up/down, Adjust (Up,
Down, Left, Right), Pointer, Zoom up/
down, Sleep, Wireless/ Wired remote
control
OSM Functions Picture (Contrast/Brightness/Sharpness/ Color/Tint/
Picture mode/Noise reduction/Color temperature/
White balance/Gamma/Low tone/Color View), Audio
(Bass/Treble/Balance/Audio input), Image Adjust
(Aspect mode/V-Position /H-Position/V-Height /H-
Width/Auto Picture/Fine picture/Picture adjustment),
Option1 (Menu/BNC Input/RGB Select/HD Select/
Input Skip/All Reset), Option2 (Power management/
Film mode/Long life [Peak Bright, Orbiter, Inverse,
White, Soft focus]/Gray level/S1/S2/Picture size/DVI
Set up), Option3 (Timer Power on mode/Button lock/
IR Remote/Loop out, Language*, Color system, Source
information
*English, German, French, Italian, Spanish, Swedish,
Chinese
The features and specifications may be subject to change without
notice.
* 1 HD/DVD/DTV input signals supported on this system
480P (60 Hz)
480I (60 Hz) 525P (60 Hz)
525I (60 Hz) 576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz) 720P (60 Hz)
1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)
* 2 The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.
Select one of them under “BNC INPUT”.
Supported Signals
• 640 ؂480P @ 59.94/60Hz
• 1280 ؂720P @ 59.94/60Hz
• 1920 ؂1080I @ 59.94/60Hz
• 720 ؂480P @ 59.94/60Hz
• 720 ؂480I @ 59.94/60Hz
Note: In some cases a signal on the plasma monitor may not be displayed
properly. The proglem may be an inconsistency with standards from
the source equipment (DVD, Set-top box, etc...). If you do experience
such a problem please contact Mitsubishi Digital Electronics, Inc. and
also the manufacturer of the source equipment.

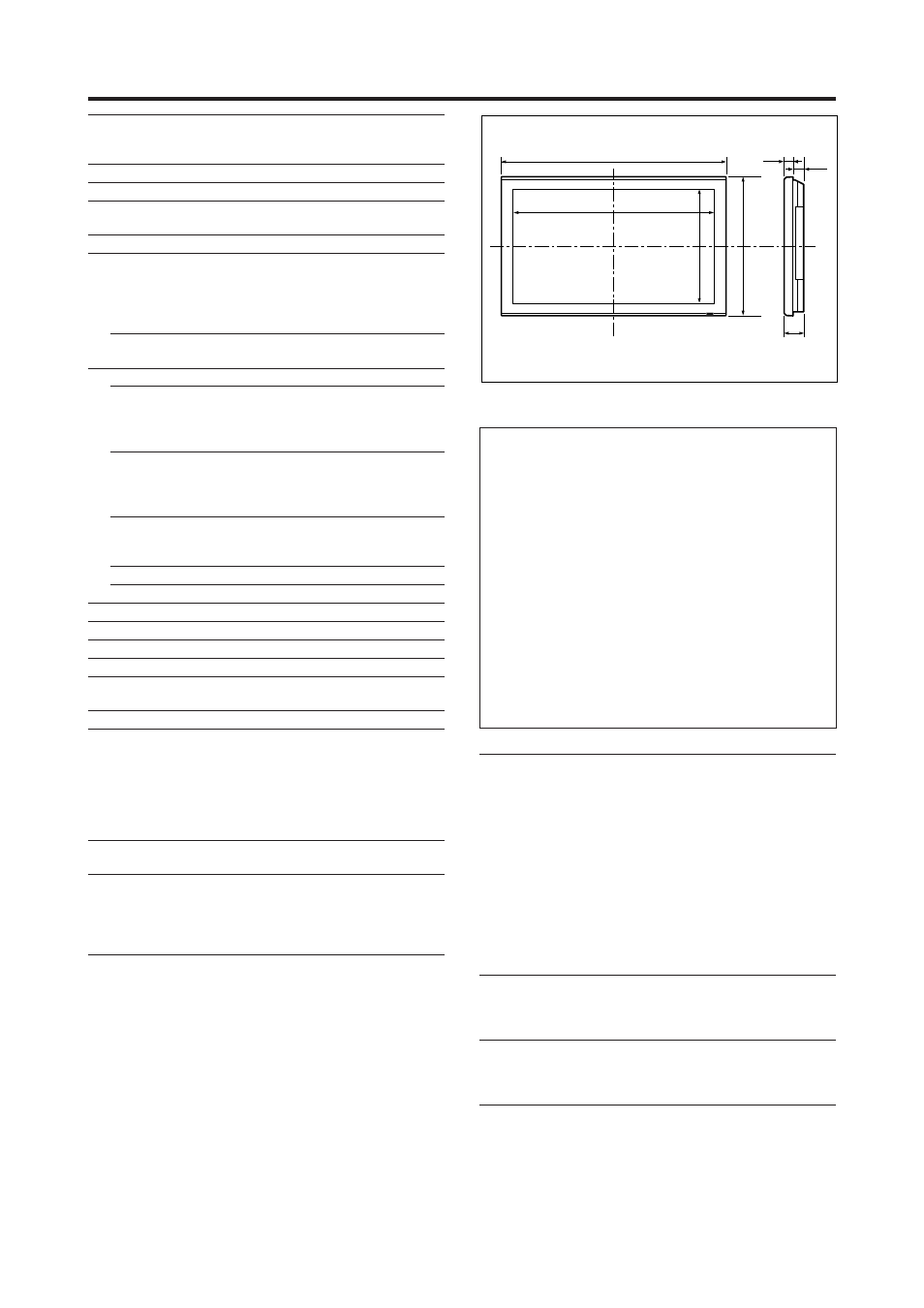

Units are in inch
(mm)
4.8"
(122)
1.9"
(48)
2.9"
(74)
57.9" (1470)
34.7" (880)
53.2" (1351)
29.9" (760)
Other Features Motion compensated 3D Scan Converter (NTSC,
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Self Diagnosis,
Anti Image Burn (Peak Bright Lock 1-3, Inverse,
White, Orbiter (Auto1,2/Manual), Color
Temperature select (high/medium/mid low/low,
user has 4 memories), Button lock (Except power
SW), Auto Picture, Input Skip, ColorView, Low
Tone (3 mode), Programmable Timer, Gamma
Correction (4 mode), Loop through interface, Plug
and play (DDC1, DDC2b, RGB3: DDC2b only)
Accessories Remote control with two AAA batteries, Power
cord, Owner’s guide, Safety metal fitting parts,
Ferrite cores, Bands, Cable clamps, RGB cable,
Remote cable, Registration card
Regulations UL Approved (UL 60950 and UL65000/CSA
C22.2 No.60950-00/ CAN/CSA-E60065-00)
DOC Canada requirements
Meets FCC Class B requirements
