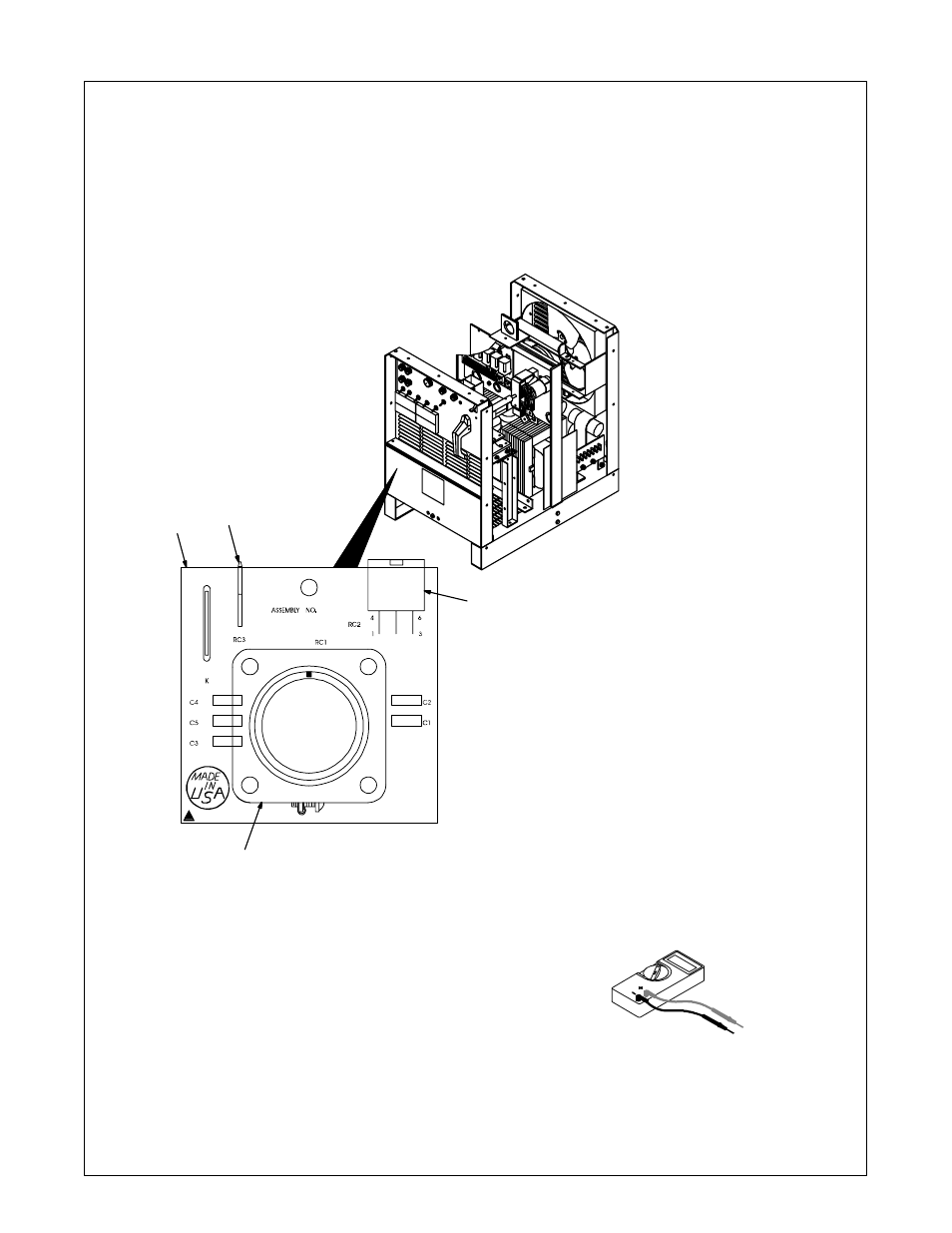

6-6. Remote Board PC2 Testing Information (Use With Section 6-7)
ST-157 960-B / ST-800 344-A
Y Disable high frequency by
placing High Frequency
switch S2 in Off position
before testing unit.
Be sure plugs are secure before
testing. See Section 6-7 for specific
values during testing.
1 Remote 14 Filter Board PC2
2 Remote 14 receptacle RC1
See Section 3-8 for information.
3 Receptacle RC2
4 Receptacle RC3
Test Equipment Needed:
2
3
1
4
