CONNECTION

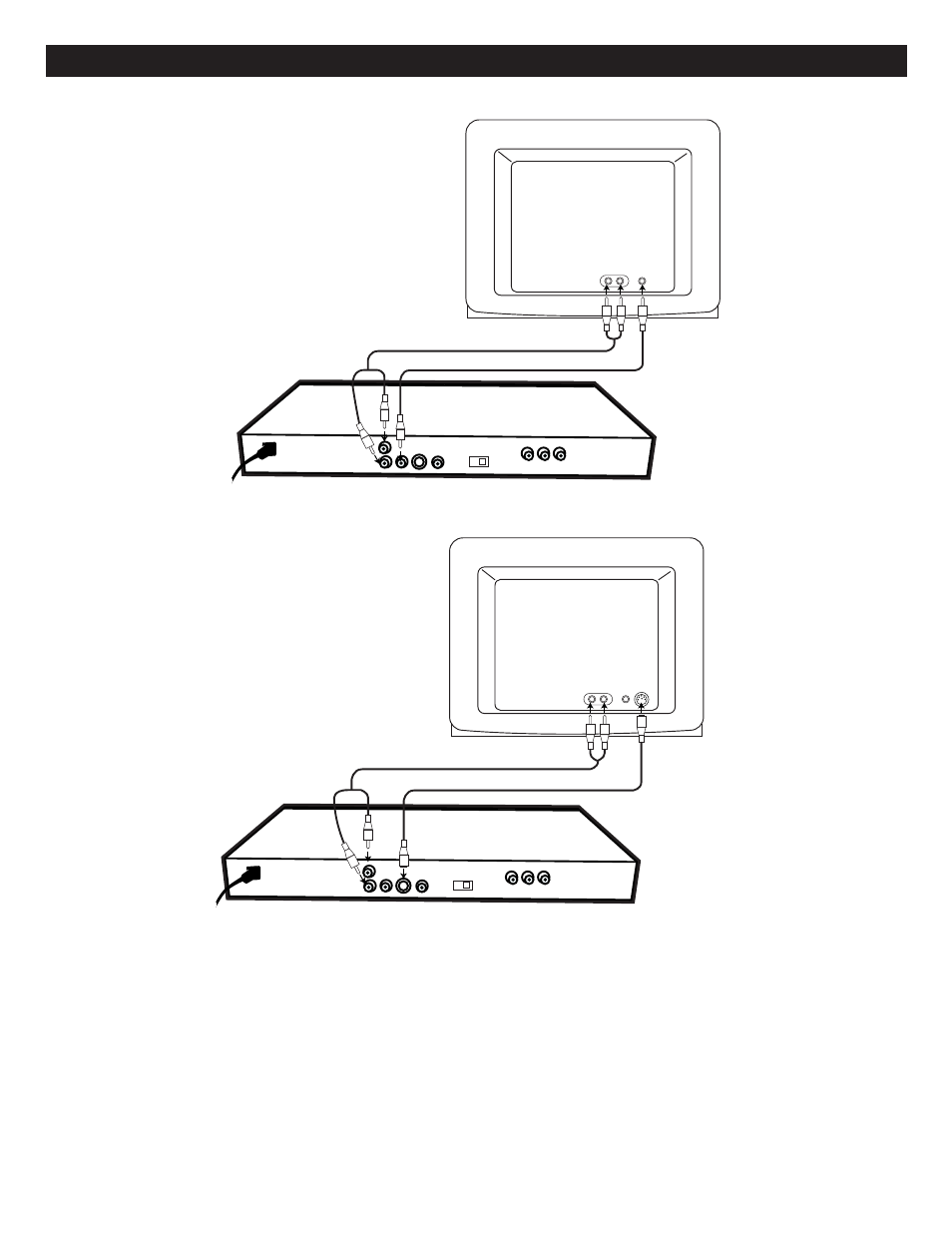

CONNECTING THE DVD TO A TV USING THE AUDIO/VIDEO OUTPUT JACKS
Audio Cable (Included)
Video Cable (Included)
From
Video OUT
From
Audio
OUT
To
Audio IN
To
Video IN
CONNECTING THE DVD TO A TV USING THE S-VIDEO OUTPUT JACK
Audio Cable (Included)
S-Video Cable (Not Included)
From
S-Video
OUT
From
Audio
OUT
To
Audio IN
To S-Video IN
NOTES FOR CONNECTING TO A TV:
•
If your TV has a component input, connect the DVD player with the component cable for best results, otherwise use the
S-Video or Video Out jack on the DVD player.
•
Set the TV’s TV/VIDEO button or switch to the VIDEO setting.
•
When connecting the DVD, refer to the owner’s manual of the TV, as well as this manual.
•
When connecting the DVD to the TV, make sure the power is off and both units are unplugged before making any connections.
•
If your TV only has one audio input, the use of a “Y” connector may be necessary. Visit your local electronics supply store.
•
Connect the DVD player to your TV directly. If you connect the DVD player through a VCR, the playback picture will be
distorted because DVD video discs are copy protected.
•
After connecting, press the AUDIO MODE button to the desired audio setting. (Please refer to AUDIO MODE on page
19.)
