Check Fuel Cap
Traction Control System
(TCS)/Dynamic Stability
Control (DSC)
On: TCS/DSC malfunction
Flashing: TCS/DSC operating
Tire Pressure Monitoring
System (TPMS
) Warning Light
On/Warning Beep: Low tire pressure
in one or more tires.
Flashing: TPMS Malfunction
Turn Signals/Hazard
Warning Indicator Lights
Power Steering Malfunction
Headlight High Beams On
Brake Warning Light
Parking brake on/low brake
fluid/malfunction
Check Engine Light
Security Indicator Light
ABS (Antilock Brake
System) Malfunction
Airbag/Front Seat Belt
Pretensioner System
Malfunction
Low Engine Oil Pressure
5 6
FUEL
GAUGE
TACHOMETER SPEEDOMETER DASHBOARD
ILLUMINATION 1

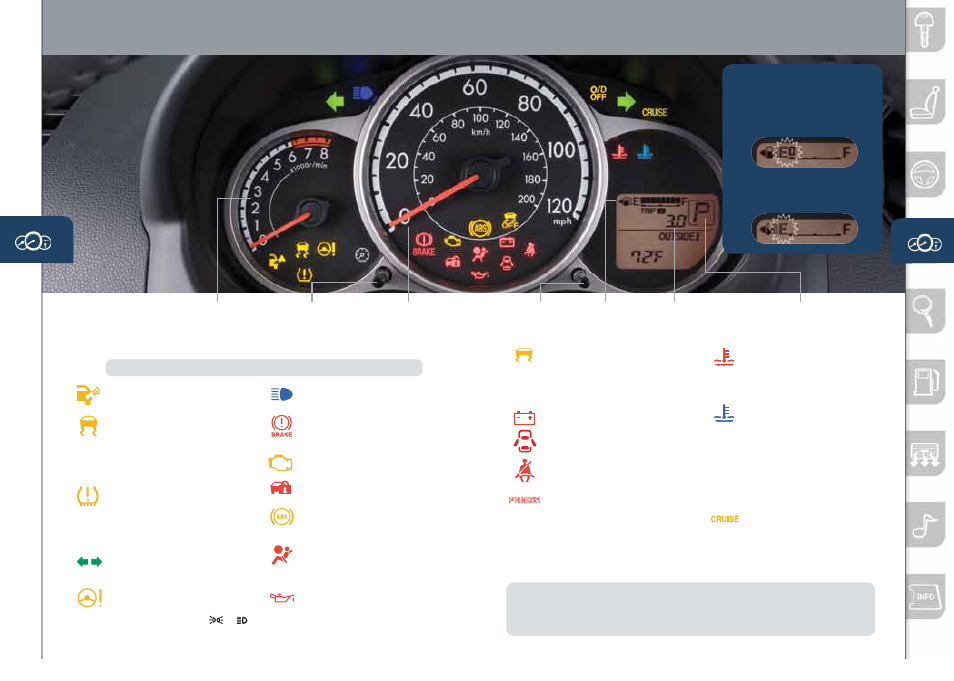

GLOSSARY OF WARNING AND INDICATOR LIGHTS
NOTE: See Owner’s Manual for more details and explanations.
SHIFT LEVER
POSITION INDICATOR
(AUTOMATIC TRANSMISSION ONLY)
Dynamic Stability Control
(DSC)/Traction Control System
(TCS) Off Indicator Light
DSC OFF switched pushed and TCS/DSC
turned off.
Charging System Malfunction
Door/Liftgate Ajar
Driver Seat Belt
Unbuckled/Malfunction
Shift Lever Position Indicator
(Automatic Transmission only)
Overdrive Cancel Indicator
Illuminates when overdrive is off.
High Engine Coolant
Temperature
Flashing: Engine is starting to run hot.
On: Engine is running hot/overheating.
Low Engine Coolant
Temperature
The light comes on when the engine
coolant is cold and goes out when
the engine coolant reaches normal
operating temperature. The vehicle
may be driven when the light is on or
off. The heater and defroster work
best when light is off.
Cruise Main Indicator Light
On (
AMBER )/Cruise Set
Indicator Light On ( GREEN )
1 When the headlight switch is in the or position, rotate the knob to adjust the brightness of
the dashboard lights.
Instrument Cluster
2 • Push to toggle between odometer and trip meter (A & B).
• When a trip meter is selected, push and hold to reset to zero.
ODOMETER/
TRIP METER
NOTE: Low ambient temperature and or high altitude causes tire pressures to drop
and may turn the TPMS warning light on. If the warning light comes on, check the tire
pressure and fill the tires as soon as possible, preferably before moving the vehicle
and warming up the tires. Tire pressure should be checked when the tires are cold.
O/D
OFF
OFF
TRIP METER
SELECTOR 2
FUEL GAUGE:
Ifthelowestscalemarkand
theEisflashing,thisindicates
thefuellevelislow.Refuelas
soonaspossible.
IfonlytheEisflashing,this
indicatesthefueltankisnearly
empty.Refuelimmediately.
