ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.

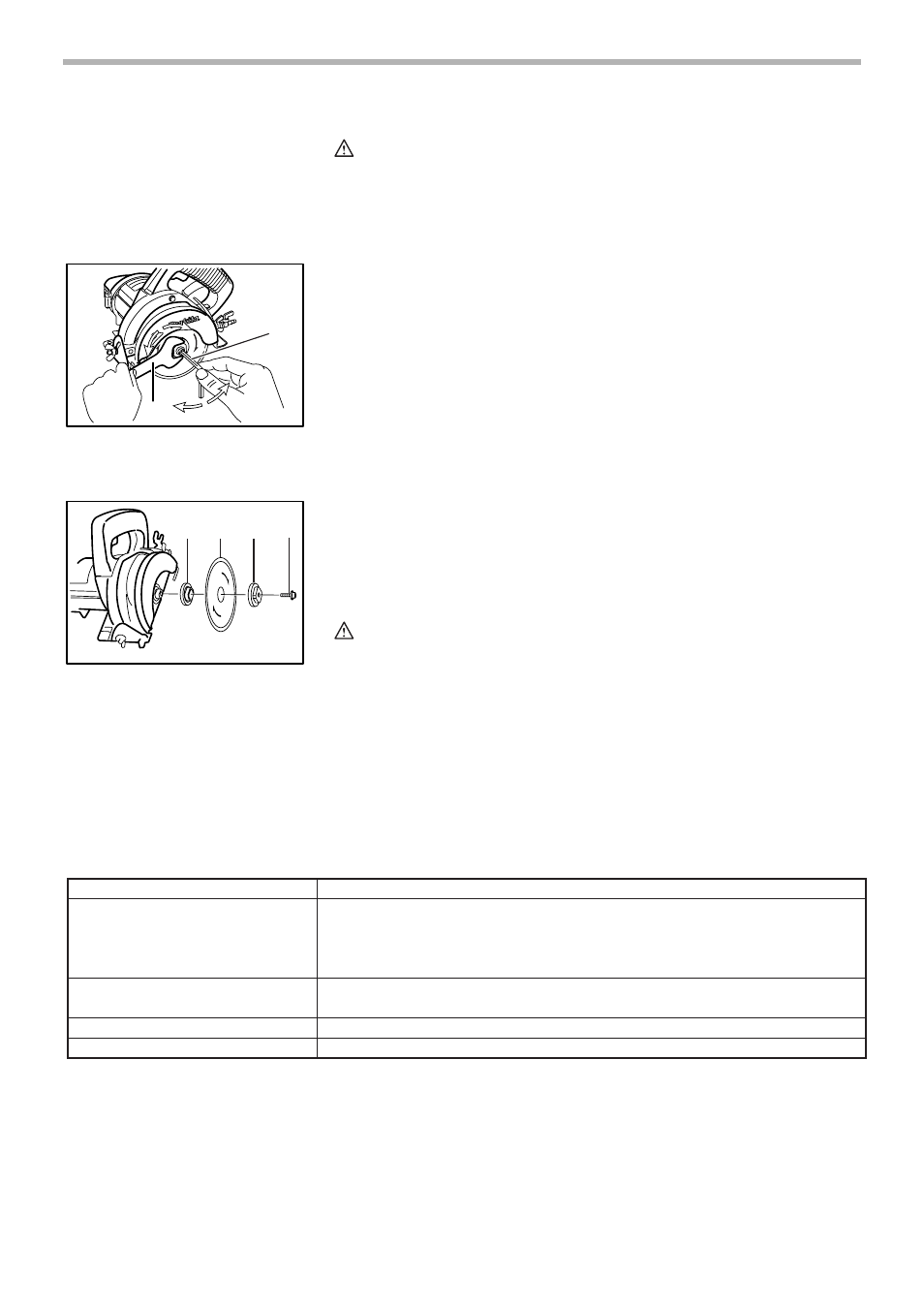

Installing or removing diamond wheel
Hold the outer flange with the wrench and loosen the hex
socket head bolt clockwise with the hex wrench. Then
remove the hex socket head bolt and outer flange.
Install the diamond wheel, outer flange and hex socket head
bolt onto the spindle. Hold the outer flange with the wrench
and tighten the hex socket head bolt counterclockwise with
the hex wrench. BE SURE TO TIGHTEN THE HEX SOCKET
HEAD BOLT SECURELY.
CAUTION:
• Use only the Makita wrench to install or remove the
wheel.
Pressure regulator assembly
Use the pressure regulator assembly to connect to water
source. It consists of the following parts.
1. Wrench 22
2. Hex wrench
1
2
003528
1. Inner flange
2. Diamond wheel
3. Outer flange
4. Hex socket head bolt
2 3 4 1
003529
Part name
Pressure regulator
Adaptor
Vinyl tube
Water pipe
Description
Preset at about 15 psi.
3/4” female hose thread (inlet) x 3/4” male hose thread (outlet)
Flow capacity: Maximum 390 GPH, minimum 10 GPH
Inlet pressures: Maximum 100 psi, minimum 25 psi.
For connecting 1/4” vinyl tube to a faucet
3/4” swivel x 1/4” adaptor
1/4” in outer diameter x 11/16” in inner diameter x 18” in length
For adjusting the amount of water flow
