OM-181 712 Page 11

4-4.

Connecting WC24 To A Millermatic 200 Or Spoolmate 200

To connect WC24 to a MIllermatic 200 or Spoolmate 200 use Adapter Cord
Kit 042 236.

NOTE

4-5.

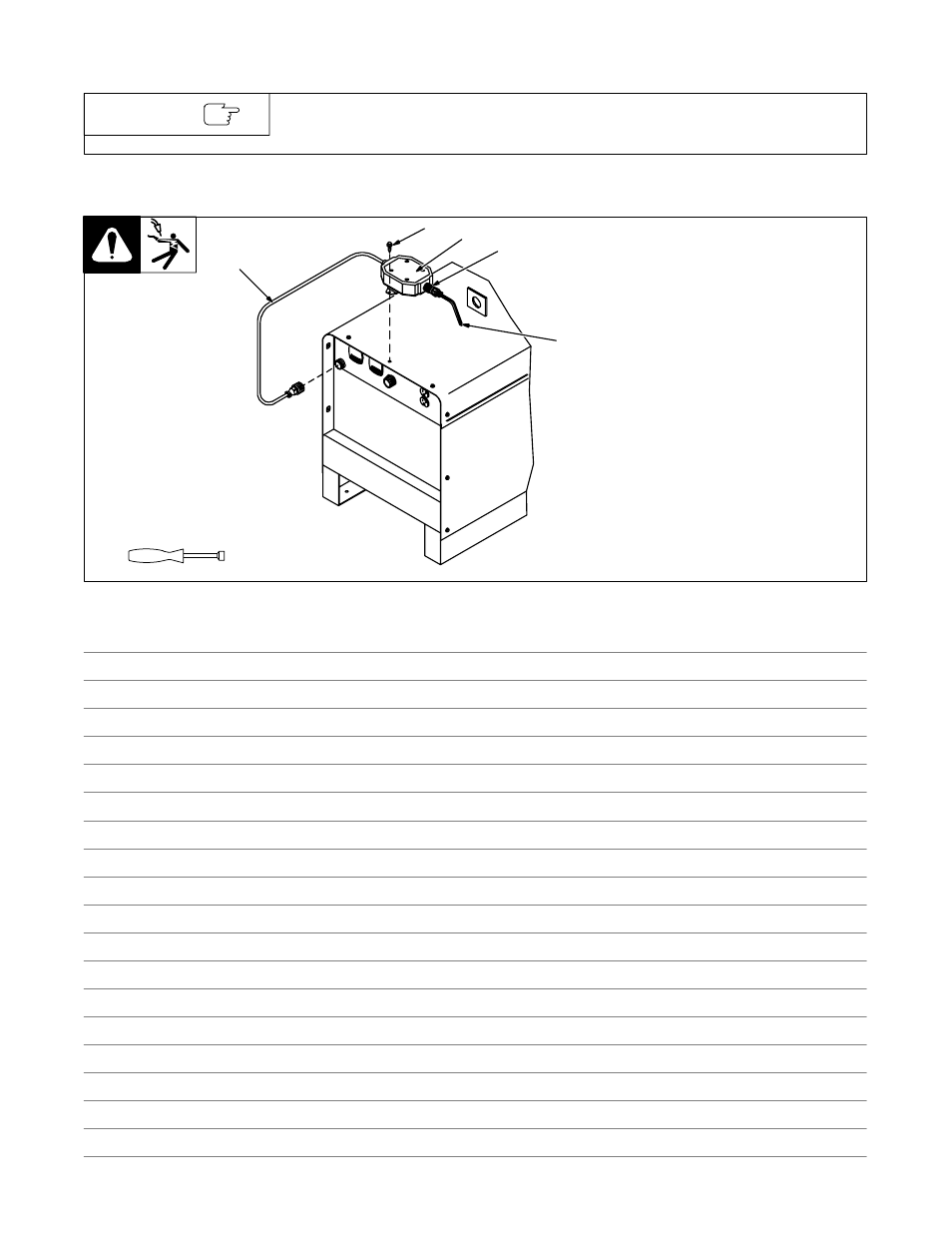

Weld Control Connections

Ref. 151 355

1

14-Pin Plug PLG4 And
Interconnecting Cord

Insert plug into 14-socket recep-
tacle on welding power source, and
tighten threaded collar.

2

Welding Power Source Top Or
Side Panel Screw

Install unit onto welding power
source.

3

Gun Control Receptacle

4

Gun/Feeder Control Cord And
10-Pin Plug

Insert 10-pin plug from gun/feeder
into receptacle, and tighten
threaded collar. (See gun/feeder
Owner’s Manual).

5

Rating Label Location

Tools Needed:

1/4 in

2

1

3

4

5

Notes
