PAGE 8 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)
Radio Control Receiver Mounting
Drill two 1/4” holes into the control box support panel on the C30HDG 1.
as shown in Figure 1.
After both holes have been drilled, deburr each hole opening. 2.
Using a 1/4-20 x 1-1/4 bolt (2), 1/4 lock washer (2), 1/4 fl at washer (2) 3.
and 1/4 nut (2), mount the radio control receiver onto the control box
support panel as shown in Figure 1.
Connect BNC end of coaxial antenna cable to BNC connector on radio 4.
control receiver.

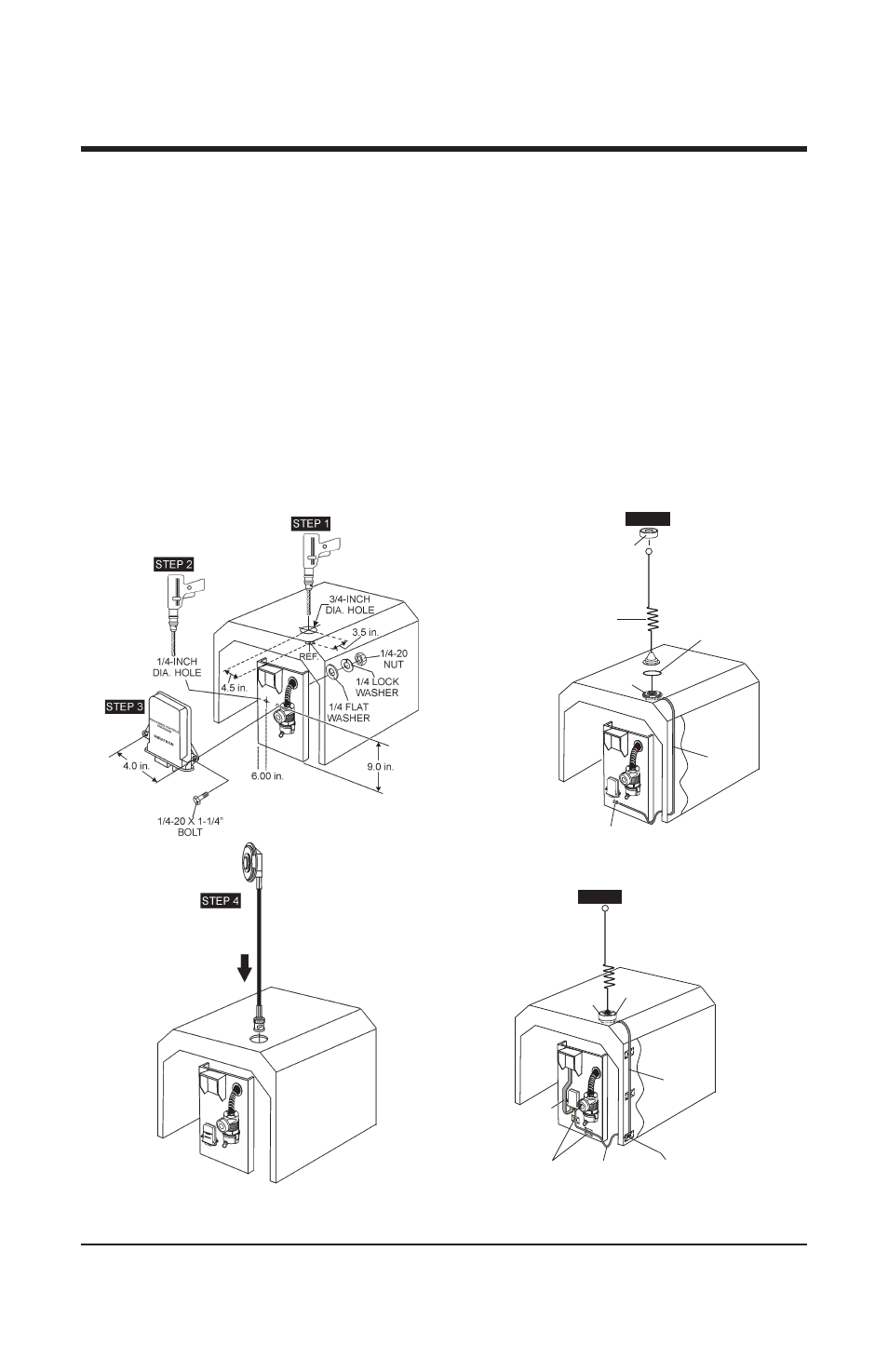

Antenna/Receiver Installation Figure 1.
RX4 RA DIO CO NTROL RECEIV ER RX4 RA DIO CONTR OL RECEIVE R MIRATR ON MIRA TRON
RUBBER
GASKET
LOCKING
FLANGE
ANTENNA
COAXIAL
CABLE
ANTENNA
END
CABLE
SERVICE
LOOP
LOCKING
FLANGE
COAXIAL
CABLE
TIE-WRAP
PADS
(INSIDE)
TIE-WRAP
PADS
(OUTSIDE)
BNC CONNECTOR
RECEIVER
END
TIGHTEN
STEP 5
STEP 6
RX4 RA DIO CO NTROL RECEIV ER RX4 RADIO CONTROL RECEIVER MIRATR ON MIRA TRON DATA
CABLE
RECEIVER INSTALLATION
