PAGE 14 — INSTALLATION OPERATION MANUAL — REV. #0 (08/19/09)

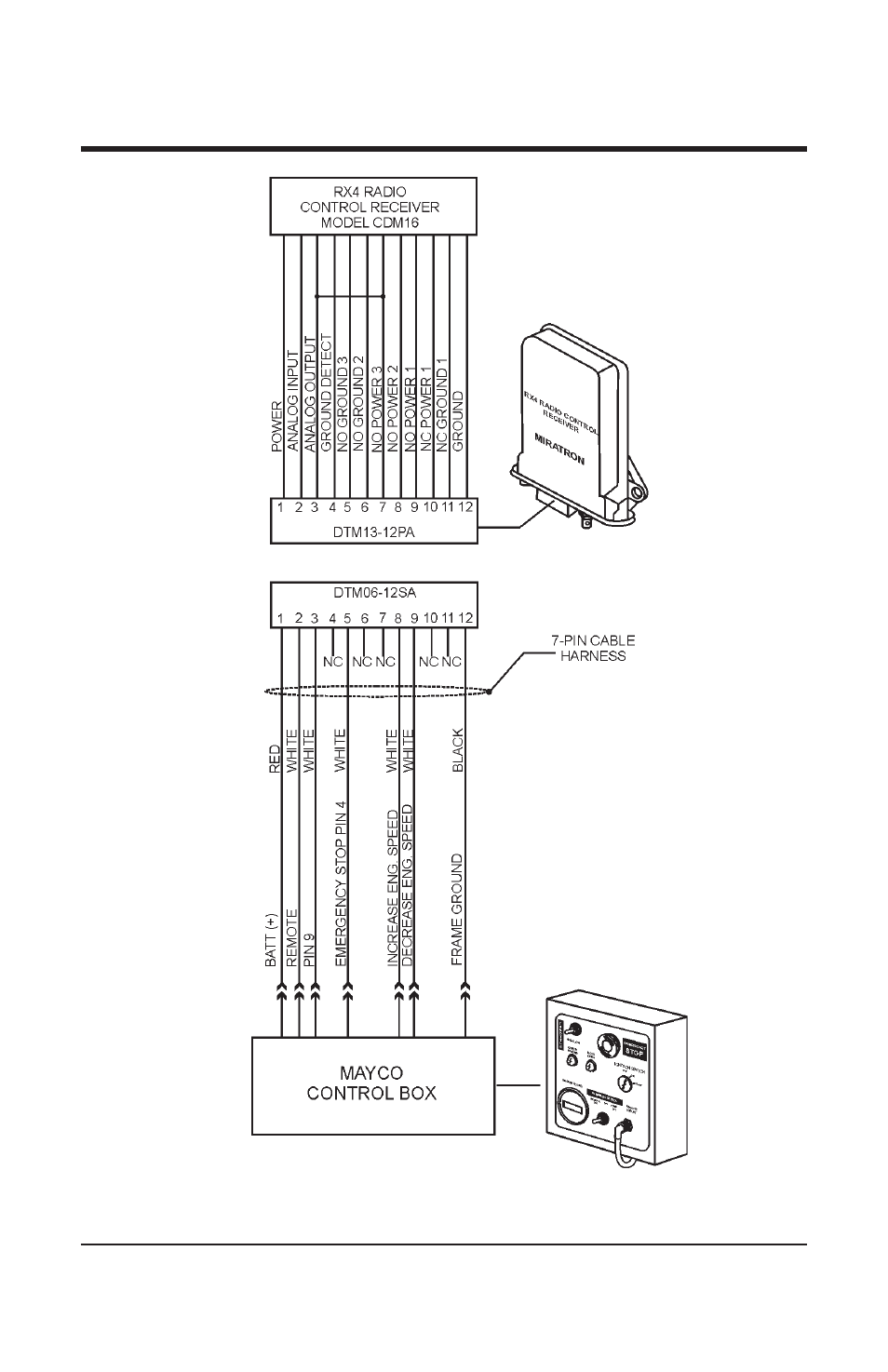

SYSTEM WIRING DIAGRAM

System Wiring Diagram

Figure 4.
