10
Installation
(continued)

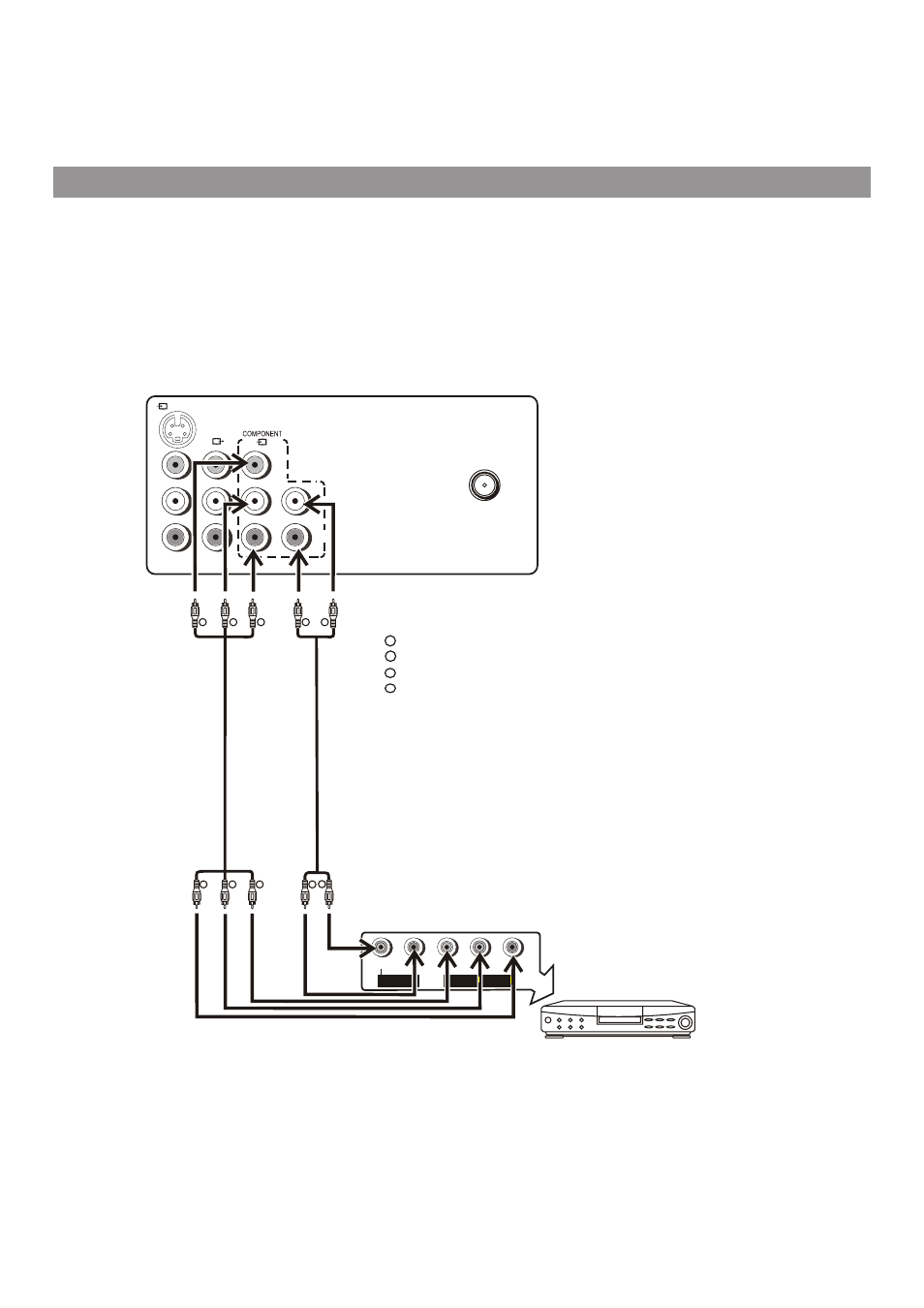

Connecting DVD input
Connect the component video cable between Y,C
B
,C
R
input terminals on the unit and Y,C
B
,C
R
output terminals on
the
DVD
player.
Connect the Audio cable between the audio input terminals on the unit and audio output terminals on the DVD
player.
To view the program from the COMPONENT input terminals, please press INPUT button on the remote control
repeatedly until COMPONENT appears on the screen.
Note:
This unit can only receive YC
b
C
r
signal but not YP
b
P
r
signal through
DVD input.
G
G
B
B
R
R
R
R
W
W
L
COMPONENT OUTPUT
AUDIO OUTPUT
Y
C
b
C
r
R
w
R
G
B
:White (audio L/MONO )
:Green (Y)
:Blue (C
b
)
:Red (audio R,Cr)
Vi
d
e
o
Cable
Audio
Cable
DVD Player, STB, etc
S-VIDEO
VIDEO
L/MONO
R
VIDEO
L
AUDIO
R
AUDIO
(1)
RF
Y
C
b
C
r
L/MONO
R
AUDIO
