Page 9
3 - 1
III. INSTALLATION
A. CABLE CONNECTION
Take the cable CCBLA-055-2 out of the accessory bag and
connect the 6 pin DIN male plug of the cable to the central 6 pin female
connector at the bottom of the programmable keyboard (ref. Fig. 3-1),
connect the other end (5 pin DIN male plug) to the PC or a compatible
system. Connect the PC keyboard or any other keyboard wedged input
device such as a CCD scanner to the 5 pin DIN female connector at the
bottom of the programmable keyboard if such connection is required.
For installation in a PS2 or a compatible system with a PS2
interface type KB3100, the cable in the accessory bag should be
CCBLA-055-1. Connect the 6 pin DIN male plug of cable CCBLA-055-
1 to the central 6 pin DIN female connector at the left of the bottom of
the programmable keyboard as the way for PC. Connect the mini DIN 6
male plug of the cable to the PS2 or a compatible system. Connect the
PS2 keyboard or other PS2 keyboard wedged device like a CCD scanner
to the 6 pin mini DIN female connector at the bottom of the
programmable keyboard.
M
M A
A G
G N
N E
E T
T
I
IC
C
S
S T
T R
R I
I P
P
E
E
R
R E
E A
A D
D E
E
R
R
P
P O
O W
W E
E
R
R
L
L 4
4
L
L 3
3 L
L 2
2 L
L 1
1
L
L O
O
L
L P
P

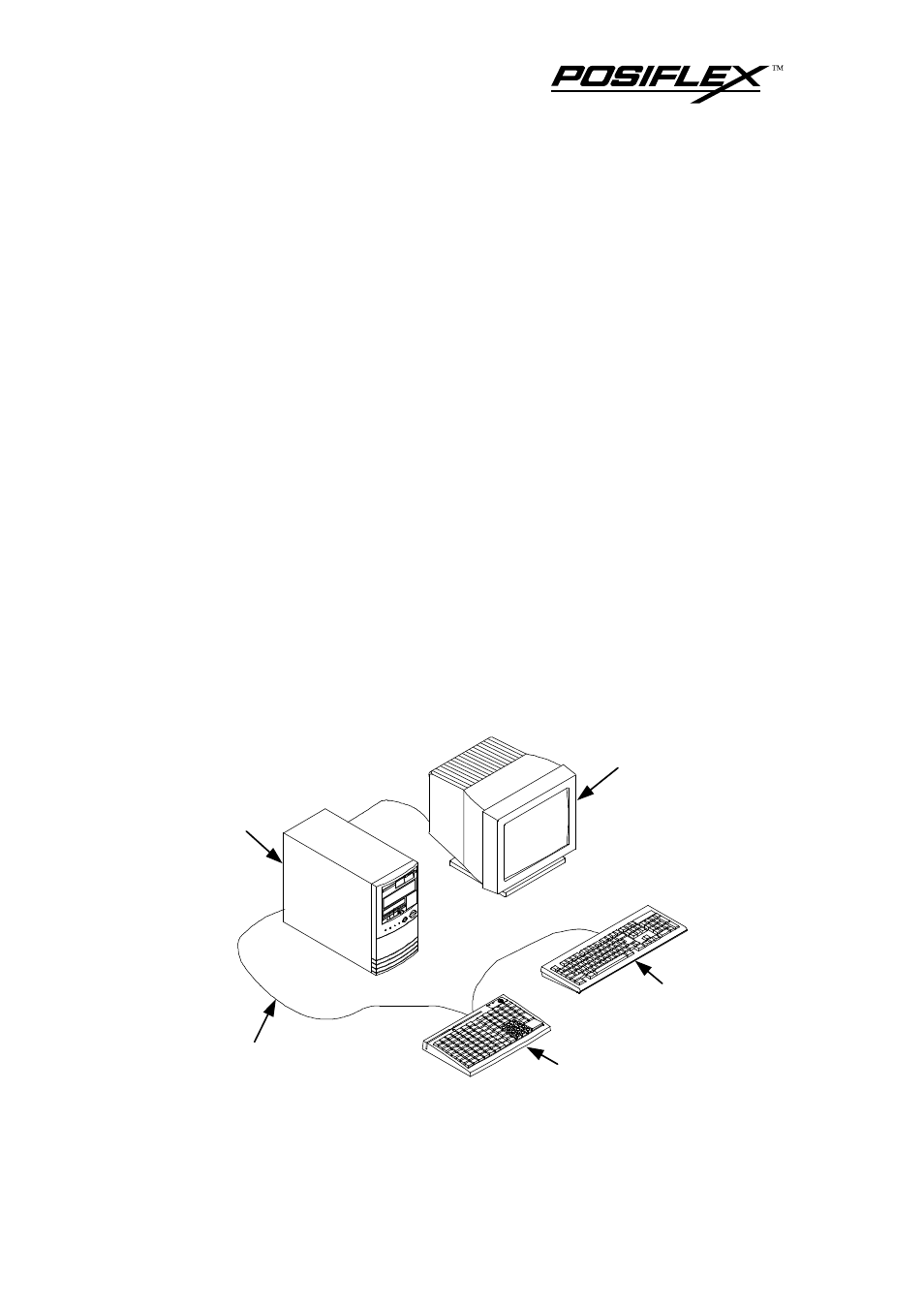

Fig. 3 - 1
KB3100
PC KB
Monitor
PC
CCBLA-055-2
