6 - 2
P O S ITIO N C O N T R O L K E Y :
• 6 positions (LP, L0, L1, L2, L3, L4), key extractable at L0 and
L1
• Hardware lock off all keyboard input after return signal sent at
L0
• Capable of giving programmable answer back code of each
position on position change of the key
• Capable of giving programmable answer back code of each
position on receiving a specific code (E7h) from host computer
O U T P U T INTERFACE:
• 6 pin DIN female connector: connect to host computer
• 5 pin DIN female connector: connect to input PC keyboard or
Daisy Chain device
• 6 pin mini DIN female connector: connect to input PS2
keyboard
M A G N E T IC STRIPE READER:
•
Decoder & interface.. Built in keyboard wedge interface
•
Tracks........................1 & 2 (KB3100M2 for ISO7811) or
2 & 3 (KB3100M2/3 for ISO7811) or
1, 2 & 3 (KB3100M3 for ISO7811) or
2 & rear (KB3100MJ for JIS X 6302)
•
Start/end sentinels..... Can be disabled by hardware jumper

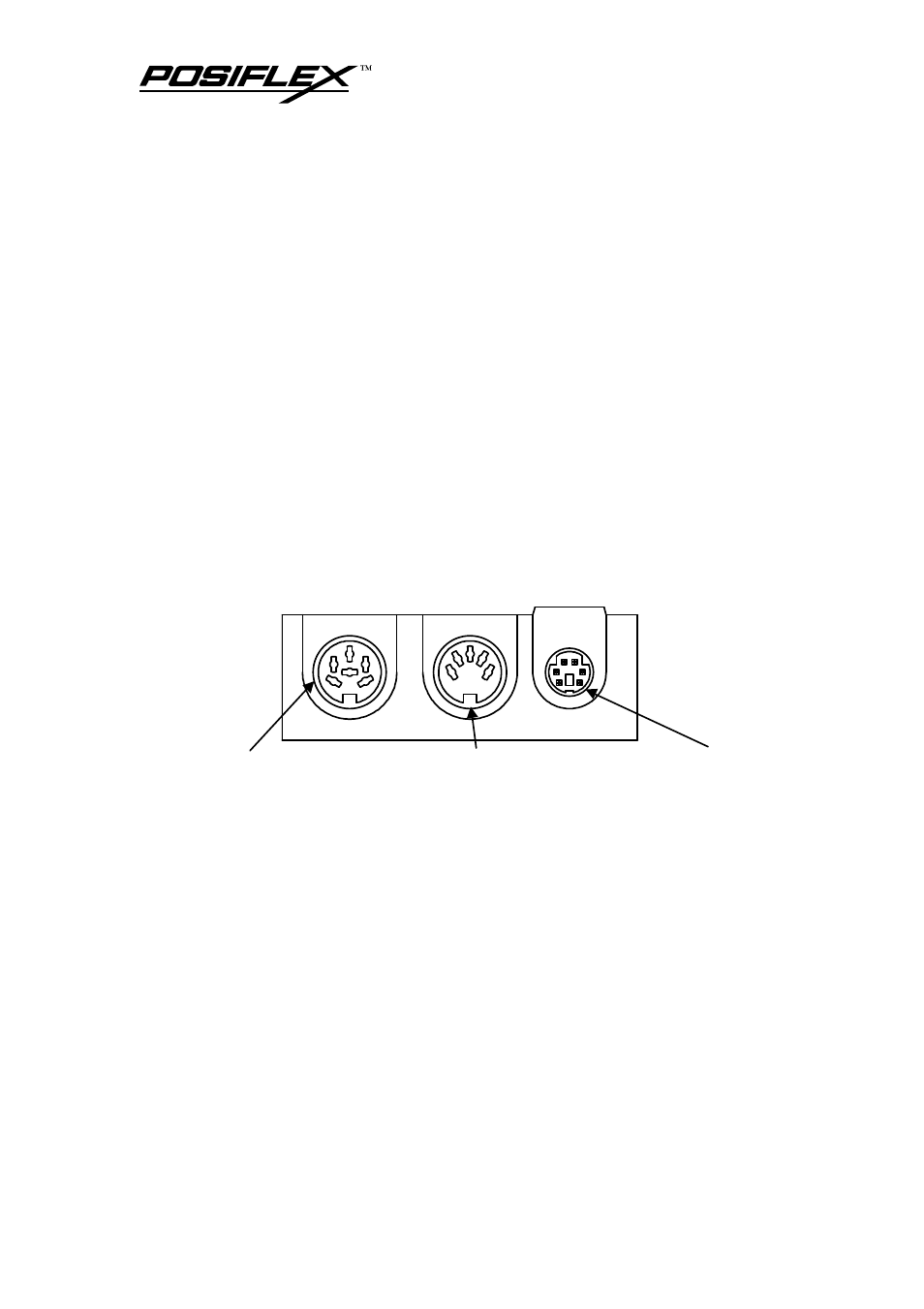

Connects to PC through
CCBLA-055-2
Connects to PC keyboard
or Daisy Chain device
Connects to
PS2 keyboard
