Minuteman UPS MBK-E SERIES - Manual (Page 7)

6

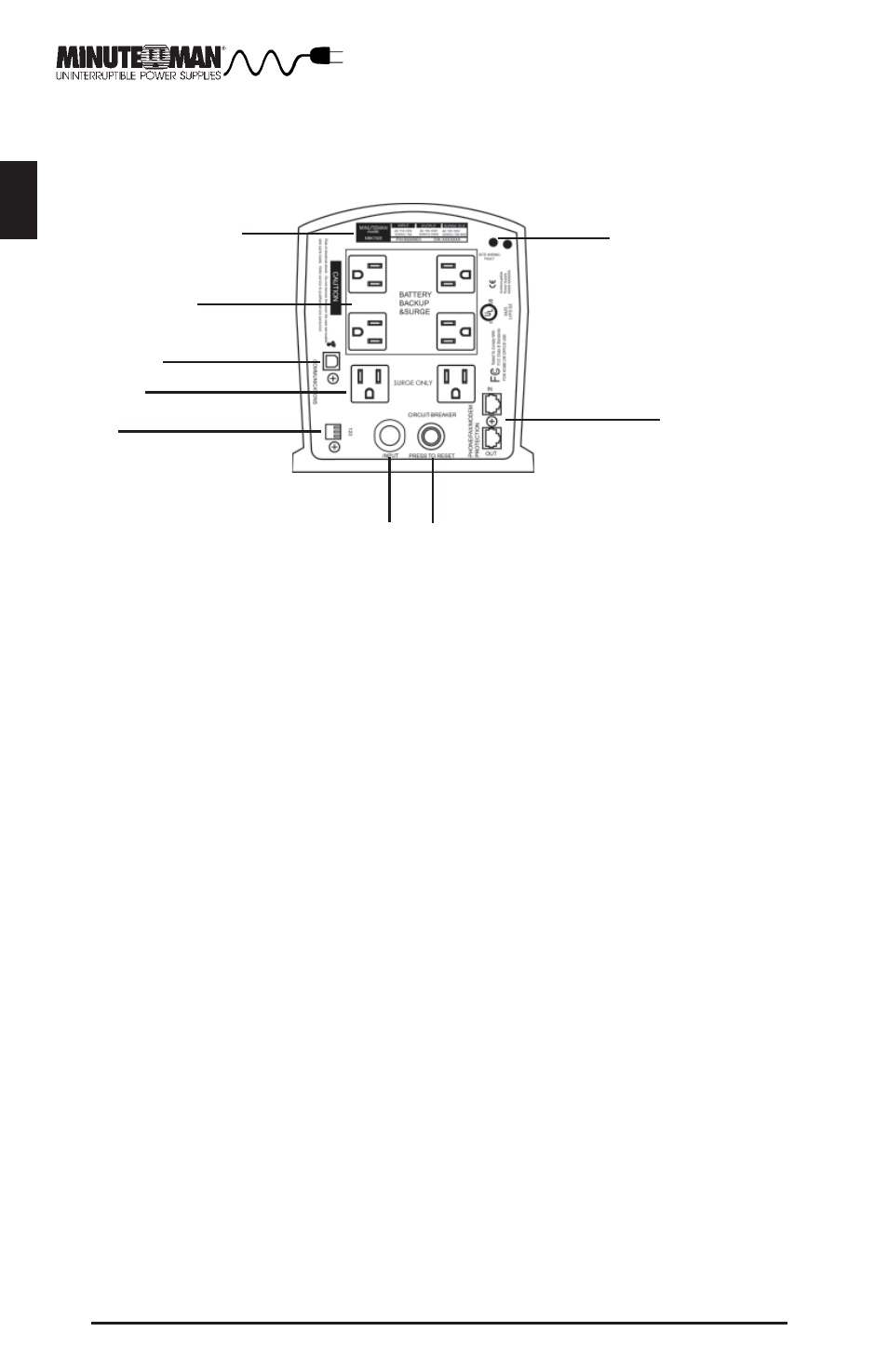

REAR PANEL
English
5
4
3
2
1
9
8
6 7
1. The Information/Rating Label.
2. The Battery Backup and Surge output power receptacles are NEMA 5-15R
type.
3. The USB Communications Interface Port is for UPS monitoring and control.
4. The Surge ONLY output power receptacles are NEMA 5-15R type.
5. The Dipswitches are for setting the Inverter output voltage and the transfer
set points.
6. The input power cord has a NEMA 5-15P Plug.
7. The input circuit breaker will trip in the event the load exceeds the UPS’s
power rating.
8. The RJ11/RJ45 modular connectors are used for 10 Base-T Network/Fax/
Modem protection.
9. The Site Wiring Fault (SWF) LED illuminates when the UPS detects an
improperly wired AC wall outlet.
