Installing the decor panel
The door can be fitted with a
customized door panel (optional
accessory) to match the adjacent
cabinets.
Decor panel measures
Width 23
1
/
4
" (591 mm)
Height 24
15
/
16
" (633 mm)
Thick
1
/
16
" -
3
/
16
" (0.6 - 4 mm)

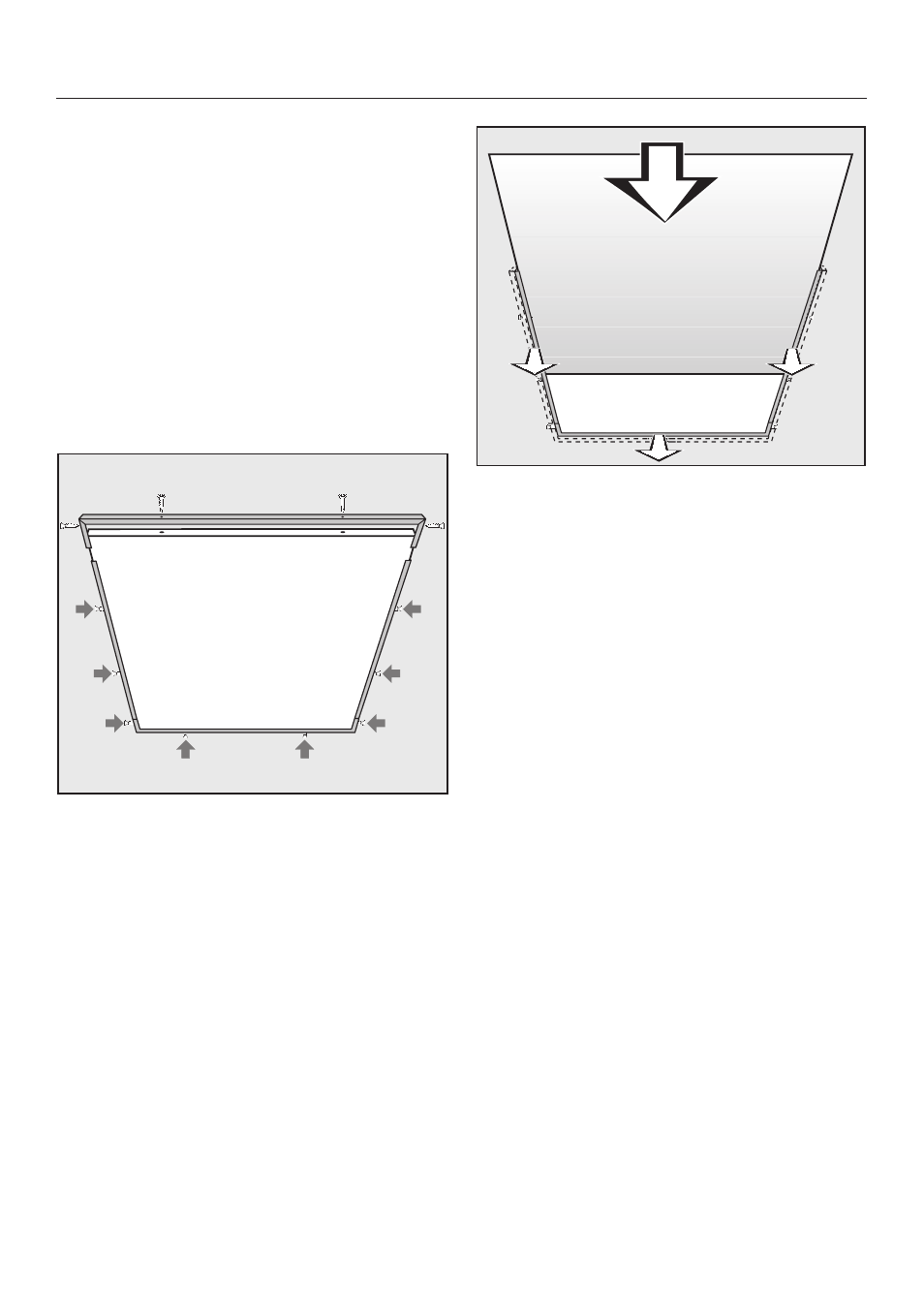

^ Open the door.
^ Unscrew the 4 screws at the top of
the decor frame.
^ and pull it
forward .
^ Loose the screws at the other sides
of the decor frame but do not turn
them out.
^ A decor panel up to 3/16" thickness
can be inserted if the frame sides are
pushed forward.
^ Insert the decor panel from above.
^ Press the frame sides onto the panel
und tighten the screws.
^ Push the top of the decor frame onto
the frame from the front and fix it
with the four screws.
Installation
43
