HOOKUP DIAGRAMS
Quick Start
1. Start with the following settings on the back of the
SRM350v2:
Turn the POWER switch off (down).
Set the CONTOUR and MIC/LINE switches out. If using
a microphone as the input to the SRM350v2, push the
MIC/LINE switch in.
WARNING: Turn the LEVEL control
down (counterclockwise) before every
use. If not, you could be in for a
startling surprise, especially if the
last time you used it was with a
microphone and now you want to
connect a line-level source.
2. Connect the output from your signal source (mixing
console, microphone, preamp, or other mic- or line-
level source) directly to the INPUT connector on the
back of the SRM350v2. This is a combination XLR and
1/4" TRS connector, and accepts balanced or
unbalanced line-level signals from mixers,
preamplifiers, CD players, tape
decks, etc., with the MIC/LINE
switch out, and accepts direct
connections from dynamic
microphones with the MIC/LINE
switch pushed in.
3. Connect the supplied AC power cord to the IEC socket
on the back of the SRM350v2. Plug the other end into an
AC outlet properly configured with the correct voltage
for your particular model.
4. Turn on your signal source. Make sure its Master
Volume control (if it has one) is turned all the
way down.
5. Turn on the SRM350v2 POWER switch.
6. Start the signal source, whether it be speaking into a
microphone or starting a CD player. Adjust any volume
controls on the signal source for normal operation.
7. Slowly turn up the LEVEL control on the back of the
SRM350v2 until the desired volume is reached (and the
LIMIT light does not come on). Always wear hearing
protectors if you are close when it is playing at high
levels.
8. If there is no sound, always turn down the SRM350v2
LEVEL control before investigating. There may be a
mixer or preamplifier mute or tape switch engaged, or a
mic switch off.

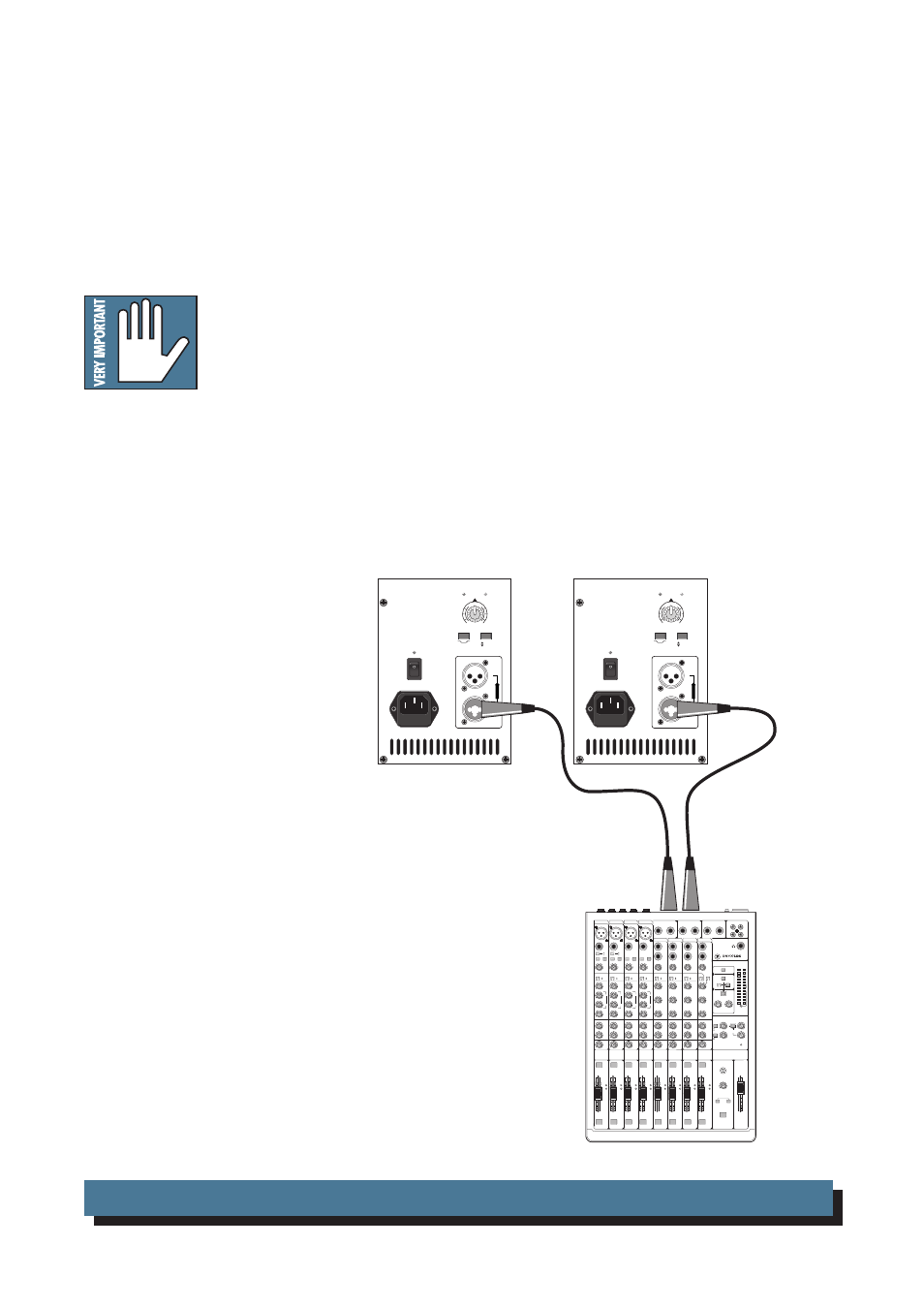

SRM350v2: STEREO OPERATION WITH A MIXER
12k/AIR 100Hz CONTOUR
(+3dB) POWER
LIMIT SIGNAL
LINE MIC
LEVEL
O O +45 +5dB
NORMAL
PARALLEL
INPUT
THRU
MIC GAIN
12k/AIR 100Hz CONTOUR
(+3dB) POWER
LIMIT SIGNAL
LINE MIC
LEVEL
O O +45 +5dB
NORMAL
PARALLEL
INPUT
THRU
MIC GAIN
Mixing Console
(Mackie Onyx 1220i shown)
From Mixer
Right Output
From Mixer
Left Output
