Controls and Indicators cont... Controls and Indicators cont...

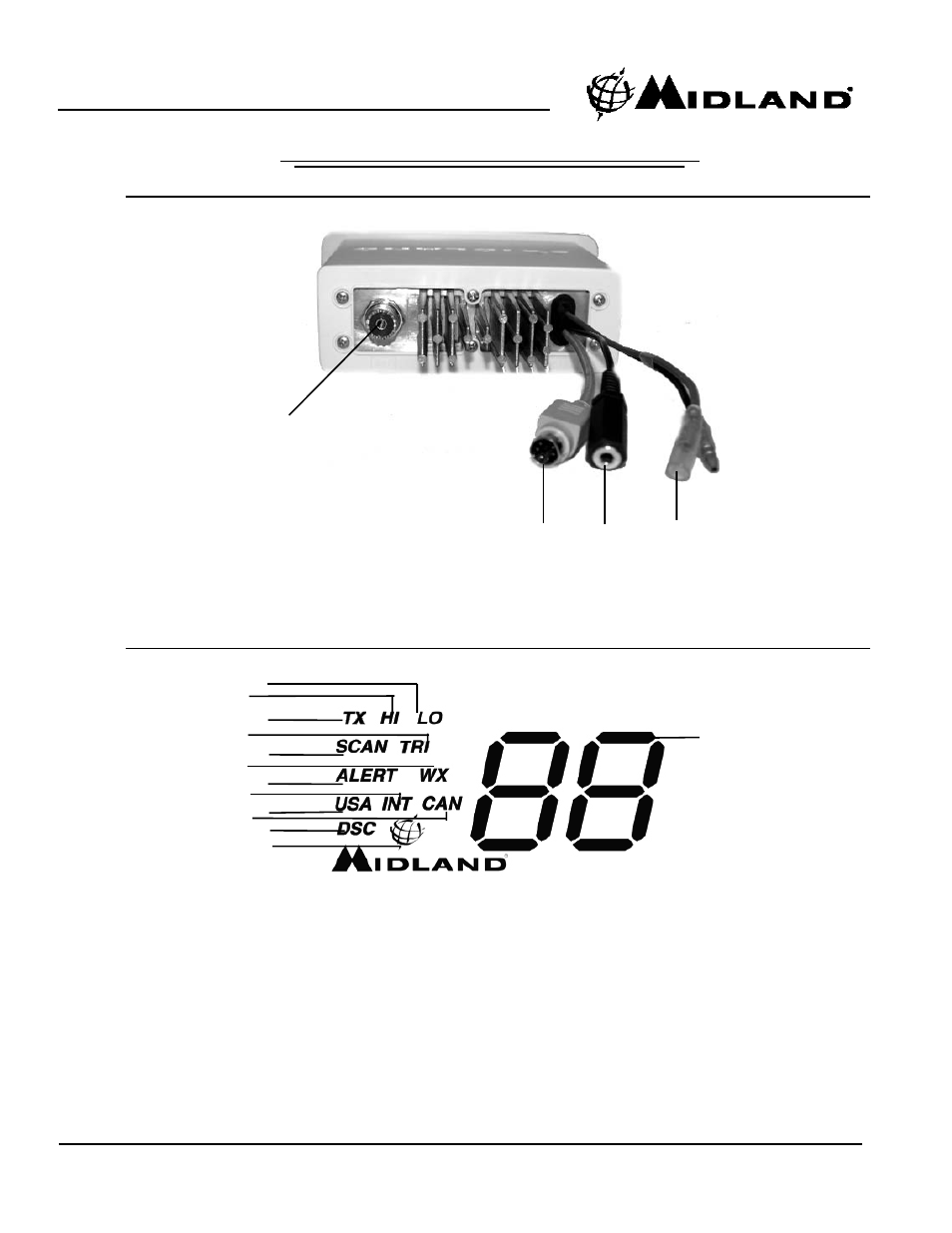

Back Panel
Antenna
Connector
NMEA /GPS
Accessory
Connector
External
Speaker/
PA
Connector
DC
Connectors
LCD Indicators
1. LO (Low)- Indicates transmit output is 1 Watt.
2. HI (High)- Indicates transmit output is 25 Watts.
3. TX (Transmit)- Indicates radio is transmitting.
4. TRI (Triple Watch)- Indicates Triple Watch Mode is in effect.
5. SCAN- Indicates channel scan mode is in effect.
6. WX- Indicate Weather Channel Mode has been activated.
7. Alert- Indicates the weather alert mode is activated.
8. INT- Indicates International Channel Mode.
9. USA- Indicates US Channel Mode.
10. CAN - Indicates Canada Channel Mode.
11. DSC- Indicates the radio is in the DSC mode.
12. Globe- Indicates a GPS data receiver is receiving a signal.
13. Channel Display- Indicates Channel Number in use.
3
2
1
4
5
6
7
8
9
10
11
12
13
