6
DVB4136 Direct Vent Gas Fireplace
20012322

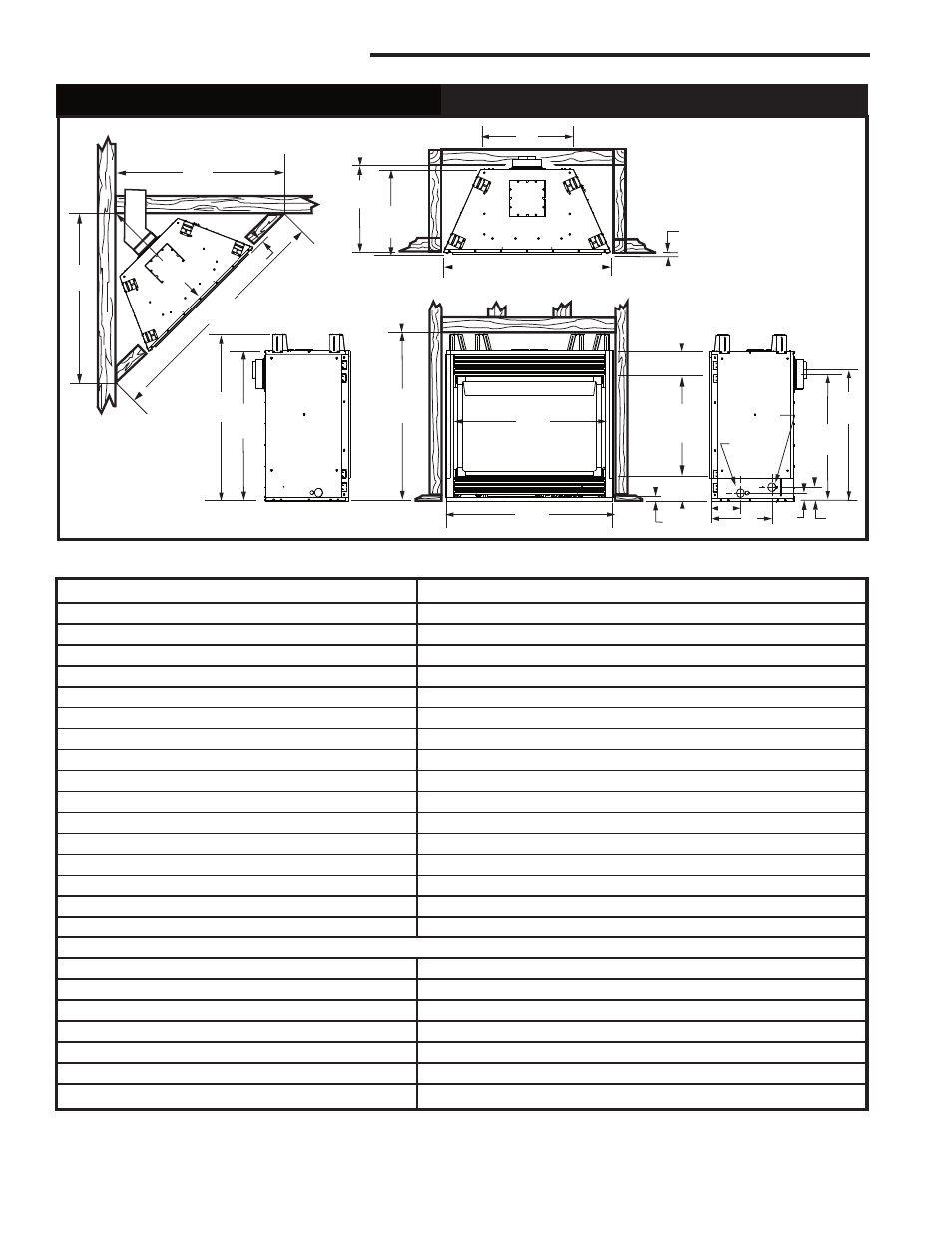

Fireplace Dimensions (Installed as Rear Vent)
Fig. 2 Fireplace specifications and framing dimensions.
Ref. DV4136
A 40” (1016 mm)
B 36¹⁄₈” (918 mm)
C 36¹⁄₈” (918 mm)
D 24¹⁄₈” (613 mm)
E 6” (152 mm)
F 6” (152 mm)
G 1” (25 mm)
H 20⁵⁄₈” (524 mm)
I 22⁵⁄₈” (575 mm)
J 5/8” (16 mm)
K 15” (381 mm)
L 3⁵⁄₈” (92 mm)
M 7¹⁄₂” (191 mm)
N 2¹⁄₈” (54 mm)
O 30³⁄₄” (781 mm)
P 31⁵⁄₈” (803 mm)
Framing Dimensions
Q 40³⁄₈” (1026 mm)
R 40¹⁄₄” (1022 mm)
S 20⁵⁄₈” (524 mm)
T 64³⁄₄” (1645 mm)
U 45³⁄₄” (1162 mm)
V 32³⁄₈” (822 mm)
W 40” (1016 mm)
12322
DVB4136 rear specs
7/07 djt
H
R - Rough Opening Width
Gas Line
Access
Rough
Opening
Height
Rough
Opening
Depth
U
U
V
T
J
S
I
J
P
O
N
M
F
D
E
G
A
C
Q
B
Recessed
Nailing Flange
K L
Electrical
Access
W
