ASSEMBLY
-12-
Scroll saw blades are classified as either “pin
end” or “plain end.” The blade included with
this saw is a pin end blade.
To install a pin end blade, do these steps:
1. UNPLUG THE SCROLL SAW!
2. Turn the tension adjustment knob counter-
clockwise to decrease the tension.
3. Remove the throat plate and slide the saw
blade down through the table insert hole so
the teeth face forward and down.
4. Slide the lower blade end through the V-
notch on the lower blade holder (
Figure 3).
5. Press the upper blade holder downward and
slide the upper blade end through the V-
notch (
Figure 4).
6. Turn the tension adjustment knob clockwise
to increase the blade tension to the desired
amount.

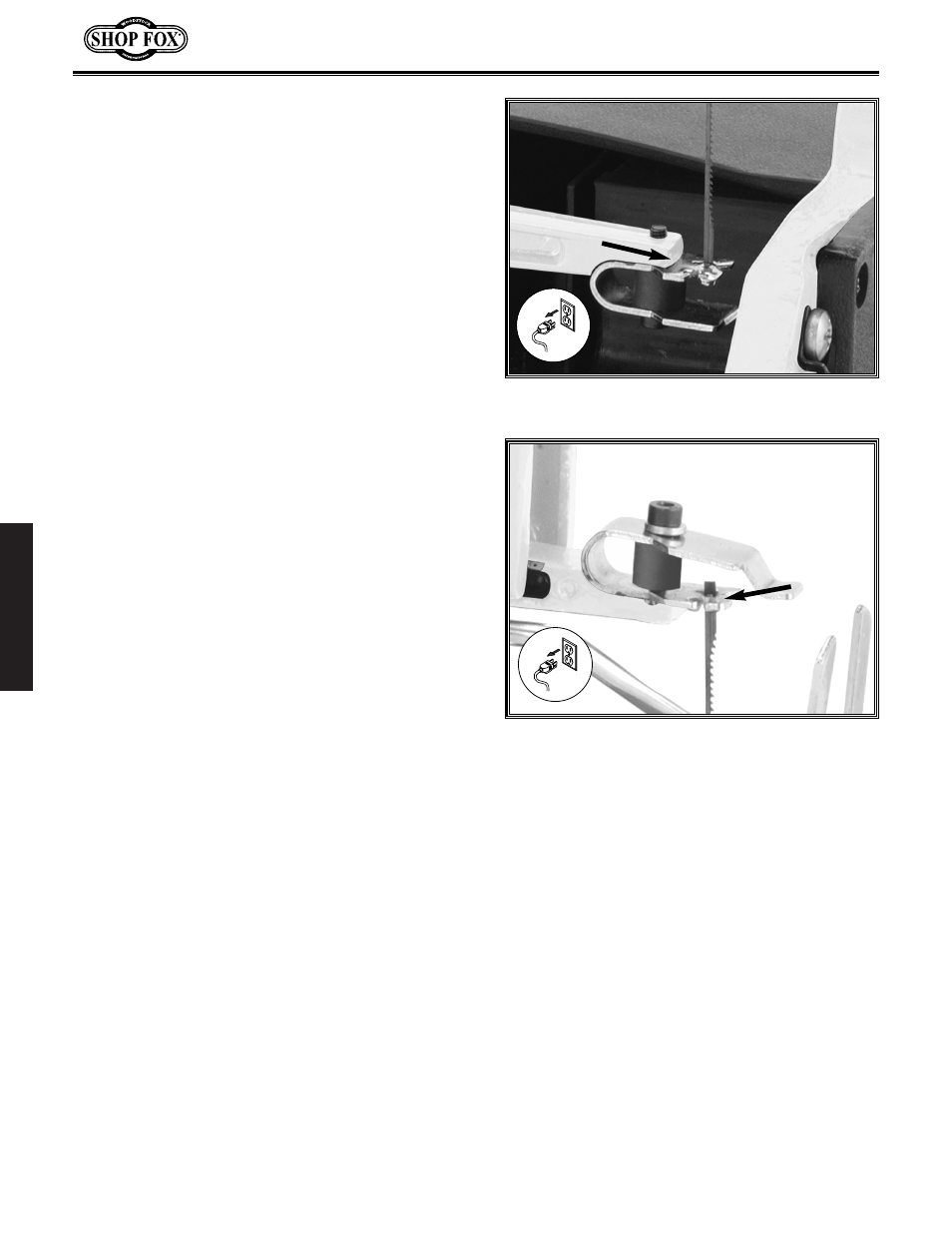

7. Replace the throat plate removed in step 3. Figure 4. V-notch on upper blade holder.
Figure 3. V-notch on lower blade holder.
Installing Pin-End
Blades
