Hardware Installation
3-5

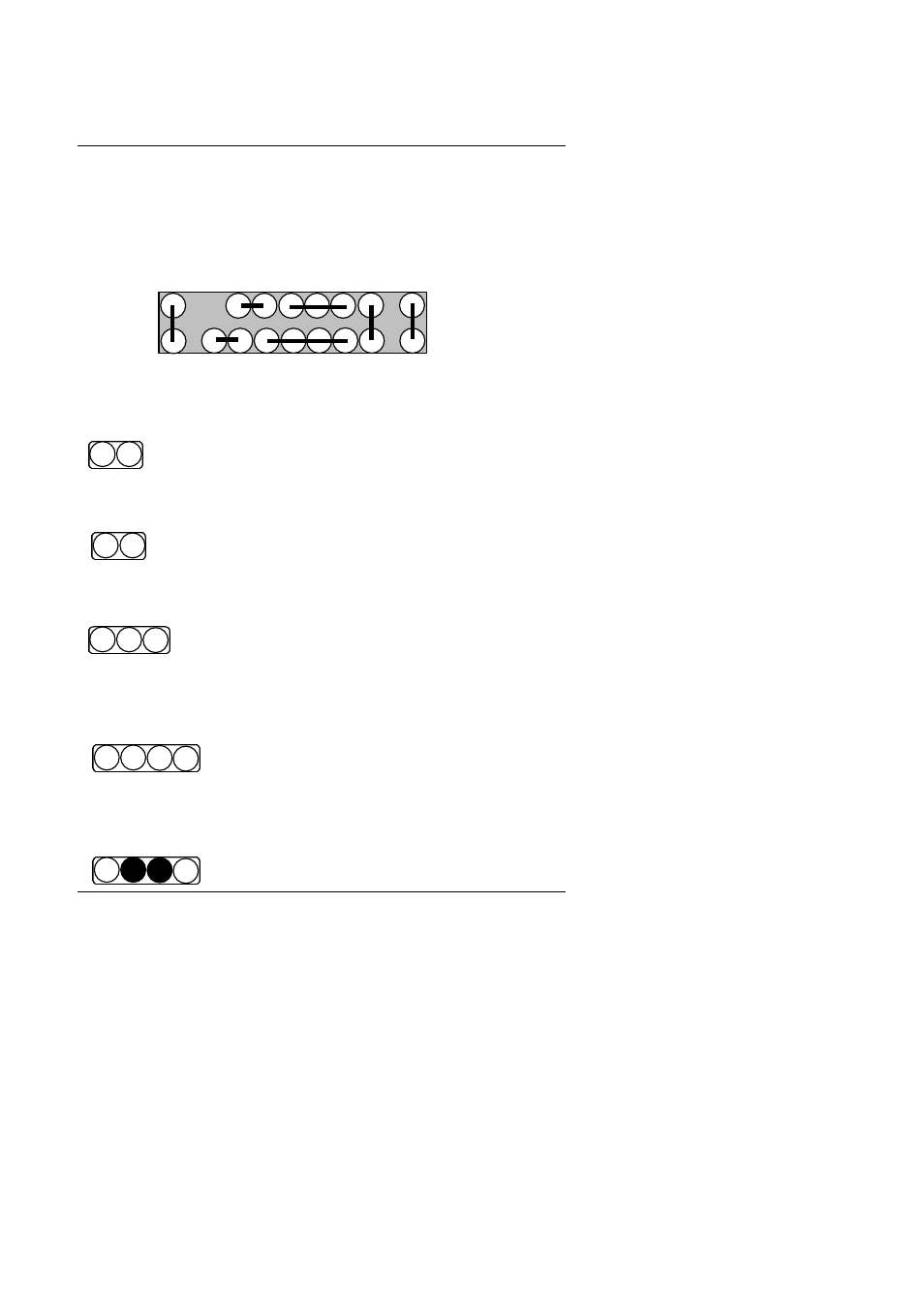

JP6 : For 2X11 PINs Jumper
Soft PWR: Soft Power Connector
Open: Normal Operation
Short: Power On/Off
RES: Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
P+P
−P−: Power LED
PIN 1 : anode (+)
PIN 2 : cathode (
−
)
PIN 3 : cathode (
−
)
SPKR: Speaker Connector
PIN 1 : VCC (+)
PIN 2 : VCC
PIN 3 : Data
PIN 4 : Data (
− )
SPKR : Internal Speaker Connector (Default)
PIN 1 : VCC (+)
1
1
PWR P+P
−
P
−
HD
RES S P K R
GN GD
JP6
1
1 1
1
+
−
1 +
−
