6ZMM
3-2

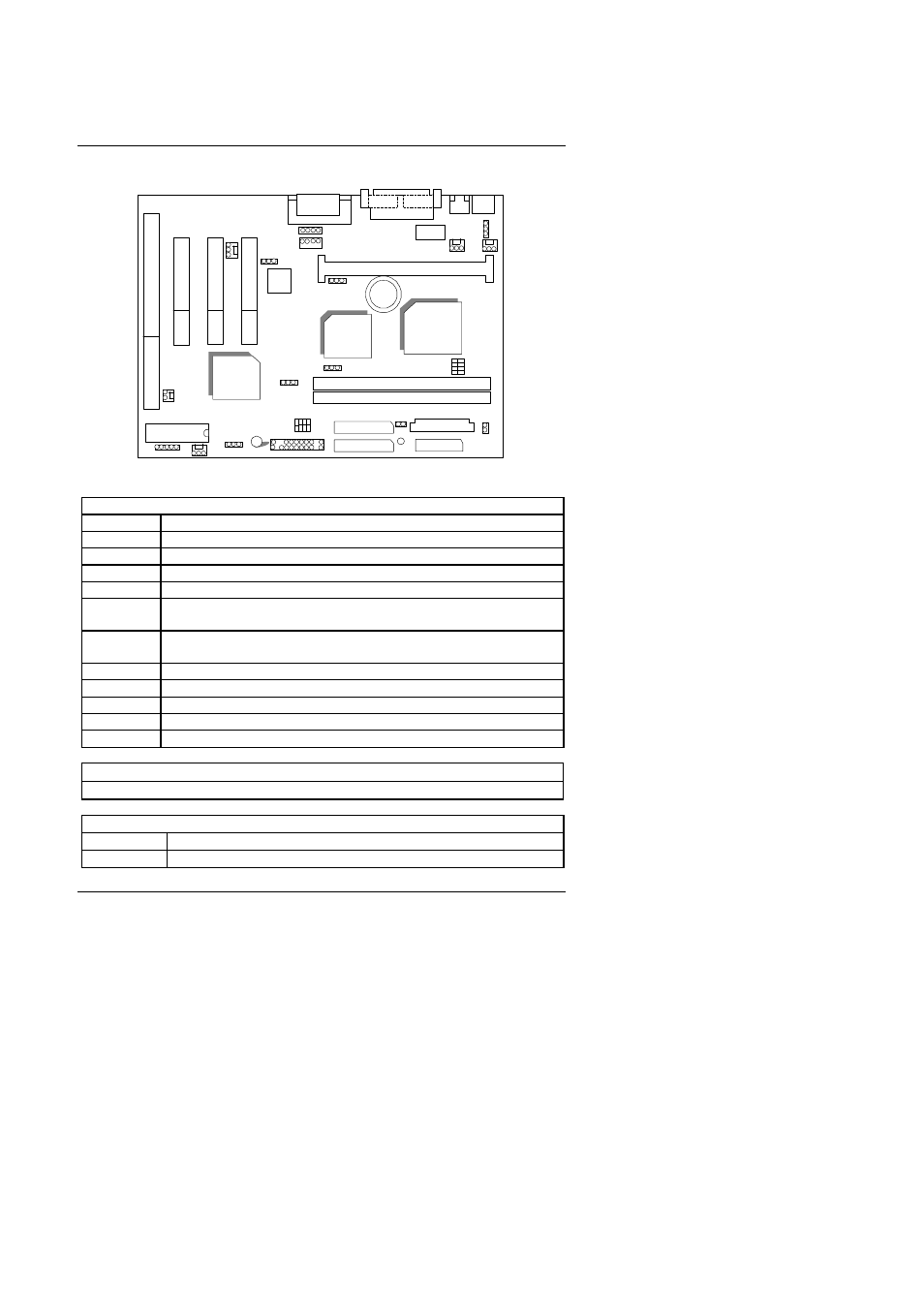

3.2. MAINBOARD LAYOUT
6ZMM
YAMAHA
INTEL
443ZX ATi
3D RAGE PRO
PIIX4
SW2
BIOS
SW1
Slot 1
PS/2 USB
COM A
COM B
VGA
JP1
CPU
FAN
LPT
GAME &
Audio
JP5
CN6
JP11
BAT 1
JP9
PCI 1 PCI 2 PCI 3
ISA 1
JP12
BANK 0
BANK 1
IDE 1
IDE 2
ATX PWR
Floppy
JP8
IR
JP6
JP15
J11
LED 1
JP13 JP14
Buzzer
PWR
FAN
SYS
FAN
×Figure 3.1Ø
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
t I/O Ports Connector
USB USB port.
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
FLOPPY For Floppy port
PS/2 For PS/2 Keyboard / Mouse port.
COMB For Serial port2 (COM B).[Support External Modem Ring
On.]
COMA For Serial port1 (COM A).[Support External Modem Ring
On.]
LPT For LPT port.
VGA For VGA port.
GAME For GAME port.
AUDIO For MIC,LINE-IN,LINE-OUT port.
J11 For Internal Modem Ring Power ON port.
t Slot 1
For Pentium

II / III / Celeron processor installed
t CPU FAN : CPU cooling FAN Power Connector
Pin No. Function
1 GND.
