Design Guide
PRODUCT CLEARANCES
The stainless steel wine chiller, wine reserve and
beverage center is factory set for a 110° door swing.
Models that accept custom panels have a 95° door
swing.
When installed in a corner:
• Allow 4" min. clearance on the hinge side for the 90°
door swing and to allow racks to slide out.
• Allow 10" minimum clearance on the hinge side for
a full 110° door swing. (Models ZDWI240WII and
ZDBI240WII have a 95° door swing.)
NOTE: Custom handle clearances may vary, depending
on custom handle depth.
• The door swing is reversible on all models. If desired,
change the door swing before installation or before
installing the custom frame panel.
Choose the location:
• These products may be closed in on the top and
three sides as long as the front is unobstructed for air
circulation and proper access to the door.
• Do not install these products where the temperature
will go below 55°F (13°C) or above 90°F (32°C).
• Do not install where it will be subject to direct sunlight,
heat or moisture.
• These products are not designed to be stacked one
over the other.
Black or Stainless Steel Toekick Options
• These products are shipped with a black toekick
installed. An optional stainless steel toekick is also
supplied with each product. For shipping purposes, the
stainless steel toekick is secured to the back of the unit.
4
90° Door Swing

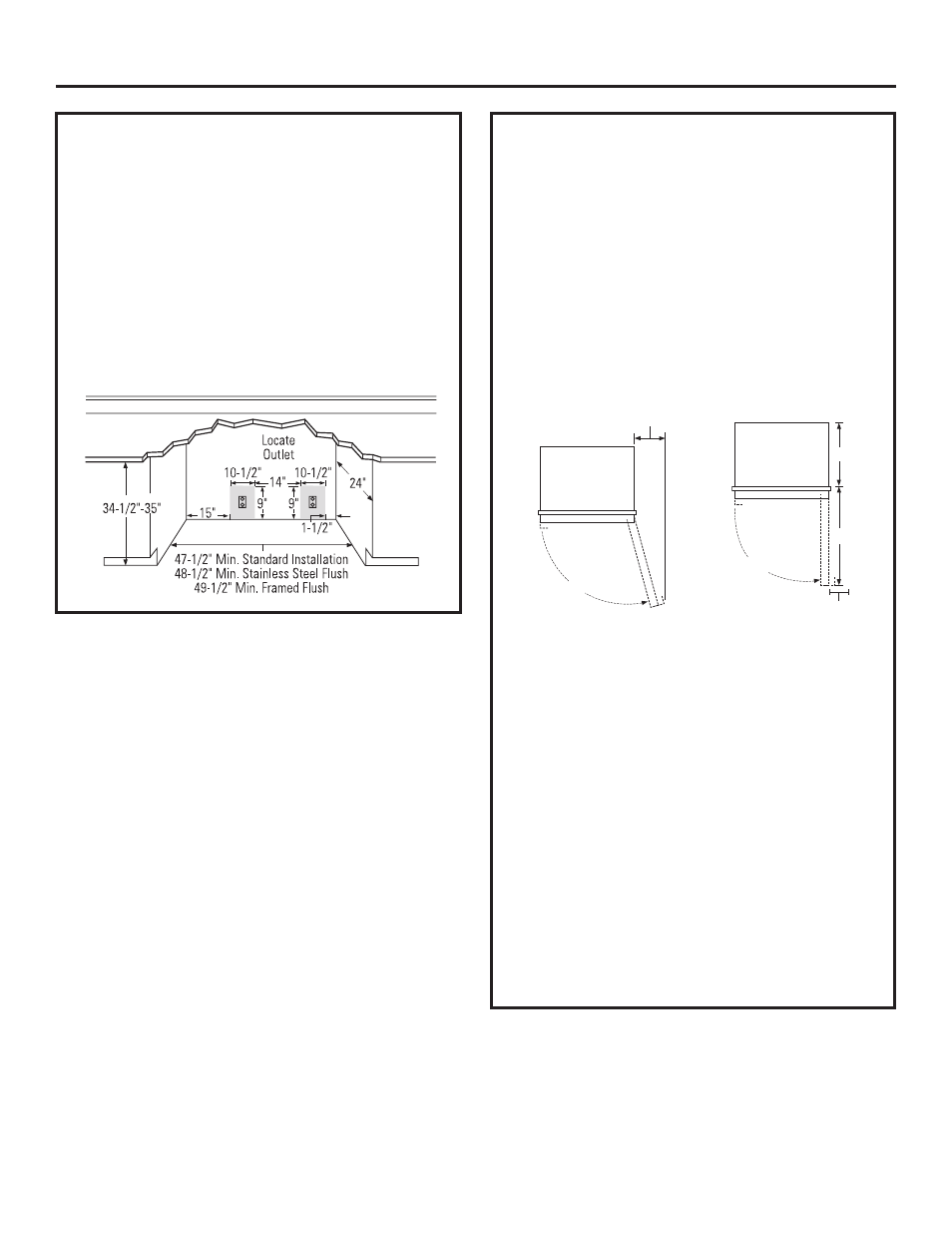

SIDE-BY-SIDE INSTALLATIONS
Increase storage capacity by installing two Monogram
beverage centers, wine chillers or wine reserves together.
Or, for a complete refreshment center, install any two
of these units together.
• A side-by-side installation requires at least a 47-1/2"-
wide minimum opening for standard installation and
a 48-1/2"-wide minimum opening for flush installation
of stainless steel models. A 49-1/2"-wide minimum
opening is required for side-by-side flush installation
of custom framed models.
• Products must operate from separate, properly
grounded receptacles.
502Dia21
10" Minimum
to Wall
110 °*
*95 ° Door Swing on Custom Frame Models
21-5/8"
23-5/8"
615Dia8
4" Minimum
to Wall
90ϒ
