Dimensions and Specifications (in inches)

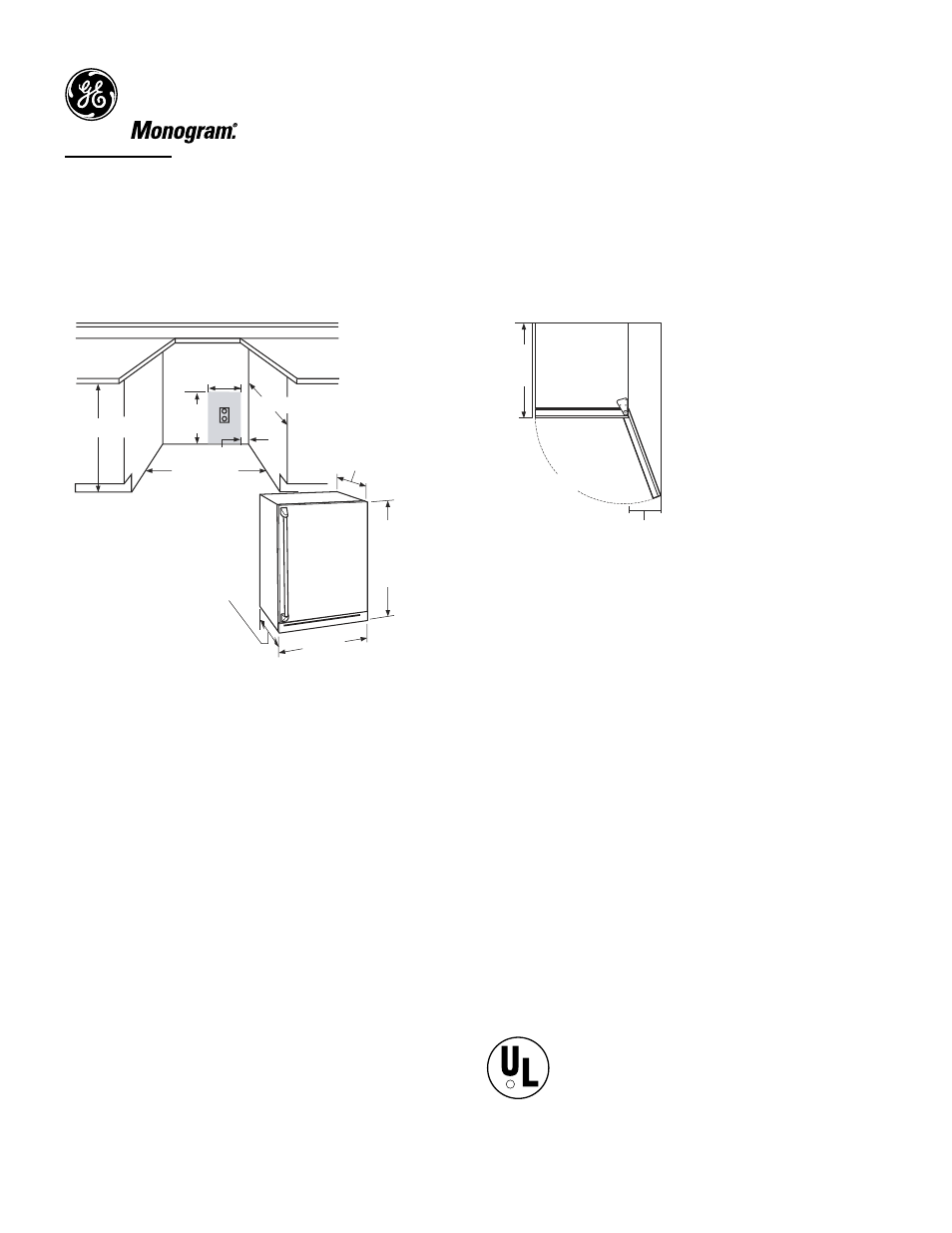

Installation Space
34-1/2" Min.
24" Min.
23-3/4"
34-1/2"
(36"with
top
canopy)
23-3/4"
1-1/2"
Locate Outlet
9"
Max.
10-1/2"
26-1/2"
Including
Handle
23-3/4" Min.
Note: Handle and
handle standoff
depth is 2-3/4"
The cutout depth must be 24"
The cutout dimensions shown allows for a full door swing and access
to the pull-out racks when installed as a built-in.
• The outdoor/indoor refrigerator can be used freestanding.
• Stainless steel top canopy can be removed for built-in installation.
• Vented stainless steel toekick.
Additional Specifications:
• A 120 volt 60Hz., 15 or 20 amp power supply is required.
An individual property grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall as shown. Electrical must
be located on rear wall as shown.
Warning:
This product must be connected to a power source with Ground
Fault Circuit Interrupter (GFCI) protection when installed in an
outdoor location.
Product Clearances
15" Minimum
110˚
Wall
24"
Cabinet
14" Minimum
110˚
Wall
24"
Cabinet
All models are factory set for a 110° door swing.
For a minimum 90° door swing:
• Allow 5-1/4" min. clearance to wall on the hinge side.
For a full 110° door swing:
• Allow 15" min. clearance to wall on the hinge side.
Listed by
Underwriters
Laboratories
Note: If installing between frameless cabinets, a 1/2" wide filler
strip or side panel may be required. The filler strip will act as a
spacer between the door case and adjacent cabinet and will prevent
interference with cabinet door swing. The width of the opening must
include filler panels.
Note: This product can be installed as a built-in or used free-standing.
The top canopy can be removed for installation below a countertop.
ZDOD240PSS – GE Monogram Stainless Steel Outdoor/Indoor Refrigerator Module
Specification Revised 7/05
