G & MG Series Granita Machine Page 33
Item Description Item Description
LB
RB
PS
CFM
TRANSF
BLL
BLR
LLL
LLR
B.B. TIMER
CL
RL
SCL
OPL
CR
OPR
GML
GFML
GMR
GMFR
MSL
MSR
CP
ERP
ELP
LEFT BOWL
RIGHT BOWL
POWER SWITCH
CONDENSER FAN MOTOR
TRANSFORMER (IN 120V OUT 12V)
BACK LAMP LEFT
BACK LAMP RIGHT
LID LAMP LEFT
LID LAMP RIGHT
CONTROLLER BOARD
COMPRESSOR LEFT
COMPRESSOR RELAY LEFT
STARTING CAPACITOR LEFT OVERLOAD PROTECTOR LEFT
COMPRESSOR RIGHT
OVERLOAD PROTECTOR RIGHT
GEAR MOTOR LEFT
GEAR MOTOR FAN LEFT
GEAR MOTOR RIGHT
GEAR MOTOR FAN RIGHT
MICROSWITCH LEFT
MICROSWITCH RIGHT
CONDENSER PROBE
EVAPORATOR RIGHT PROBE
EVAPORATOR LEFT PROBE

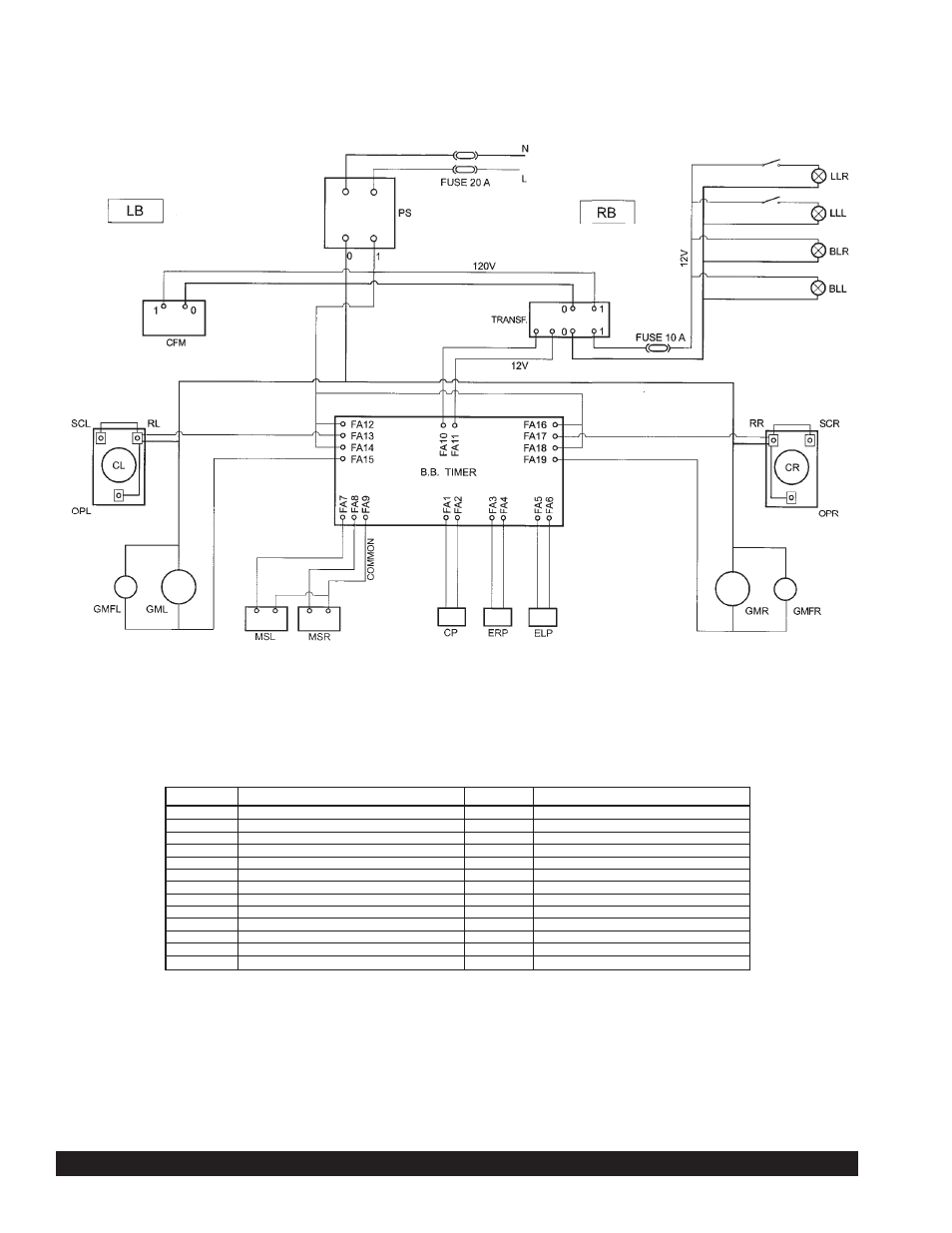

ELECTRICAL DIAGRAM MODEL - G SERIES (115V/220V)
