PAGE 2

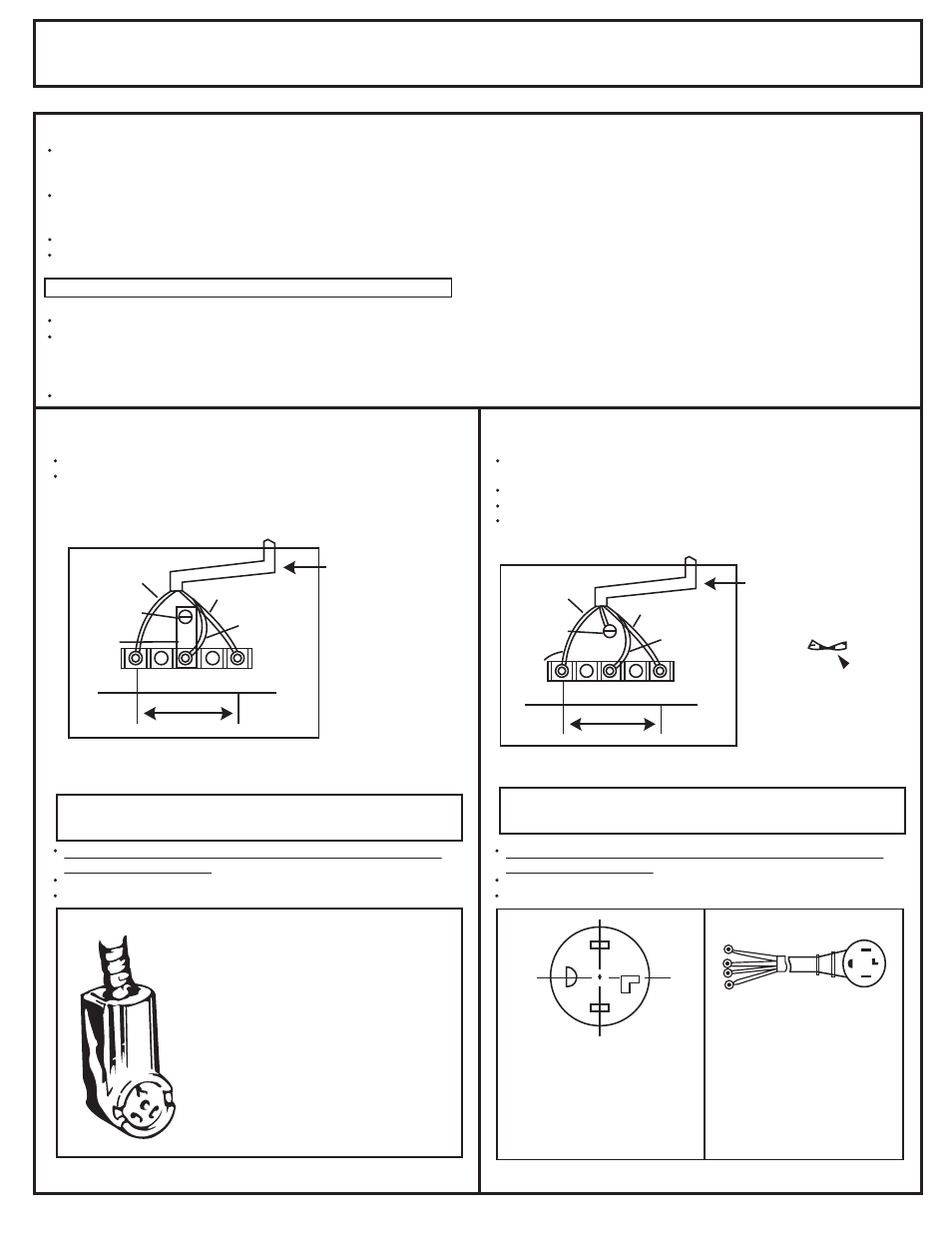

ELECTRICAL CONNECTION DETAILS

OBSERVE ALL GOVERNING CODES AND ORDINANCES

GROUNDING INSTRUCTIONS

DO NOT USE EXTENSION CORD WITH THIS APPLIANCE

FOR THREE-WIRE SUPPLY

FOR FOUR-WIRE SUPPLY

(208V & 240V MODELS)

The operating voltage (Volts), Amperage (Amps) and Frequency

(Hz) of this dryer are indicated on the Rating Plate located to the

right of the loading port.

Connect this dryer to a circuit corresponding to that indicated on

rating plate and protected by fuses or a circuit breaker

in accordance with local codes.

Use a power supply cord kit marked for use with clothes dryer.

For 208V and 240V models, use a power supply cord kit marked for use

with clothes dryers.

Connect two (2) HOT lines to outer screws (L1 and L2) of terminal block.

Connect Neutral line to center screw (N) of terminal block.

Remove ground strap and discard. Rescrew green grounding screw in

place.

Connect two (2) HOT lines to outer screws (L1 and L2) of terminal block.

Connect NEUTRAL line to center screw (N) of terminal block.

Attach ground wire of power supply to green grounding screw beside

terminal block.

Typical 30 amp receptacle for use where

local codes permit use of flexible type

power supply cord (pigtail).

Typical 30 amp receptacle for use

where local codes permit use of

flexible type power supply

cord (pigtail).

Typical 30 amp cord assembly for

use where local codes do not

permit grounding through

neutral.

Properly strain relief the cord set or cable to the cable entry hole with

UL recognized strain relief.

Make sure cordset or the cable is away from the rotating drum.

Replace access panel.

Properly strain relief the cord set or cable to the cable entry hole with

UL recognized strain relief.

Make sure cordset or the cable is away from the rotating drum.

Replace access panel.

POWER SUPPLY CORD 3#10

AWG MINIMUM COPPER

CONDUCTORS

30 AMP, 240V, WITH

TYPE UL RECOGNIZED

MINIMUM RATED 90°C

208 OR 240

VOLT OPERATION

120/208 OR 120/240

VOLT SUPPLY

(USE ONLY

30 AMP FUSES)

REMOVE GROUND

STRAP AND DISCARD

208 OR 240

VOLT OPERATION

120/208 OR 120/240

VOLT SUPPLY

(USE ONLY

30 AMP FUSES)

4-WIRE RECEPTACLE

(14-30R)

4-CONDUCTOR CORD

ASSEMBLY ( Type ST Cable)

POWER SUPPLY CORD 4 #10

AWG MINIMUM COPPER

CONDUCTORS, 30 AMP, 240V,

WITH CLOSED-LOOP TERMINALS

TYPE UL RECOGNIZED MINIMUM

RATED 90°C.

REAR

HOT WIRE

FRONT

208V or 240V

GREEN

GROUNDING

SCREW

WHITE

NEUTRAL

WIRE

GROUND

STRAP

L 1

L 2

INSIDE TOP VIEW OF DRYER

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED.

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED.

3 WIRE RECEPTACLE

(10-30R)

Remove rear access panel.

Connect supply wire leads to terminal block as shown on sketch below, depending on type of installation.

WARNING: Appliance grounded to neutral conductor through a link. If used in a mobile home or if local codes do not permit grounding through neutral, a

4-conductor cord or cable assembly for use with clothes dryers must be used with the following specifications: Type St. Cable, 125/250 Min Volt, 30 Amp

with closed-loop terminals and secured with a UL recognized strain relief. See manufacturer’s instructions

Make sure screws on terminal block are tight.

For alternate 208V or 240V power supply hook-up, proceed as follows:

This appliance must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock by providing

a path of least resistance for electrical current.
WARNING: Improper connection of the equipment grounding conductor

can result in a risk of electric shock. Check with a qualified electrician

or serviceman if you are in doubt as to whether the appliance is

properly grounded.

Do not modify the plug provided with the appliance - if it will not fit the

outlet, have a proper outlet installed by a qualified electrician.
