QT060

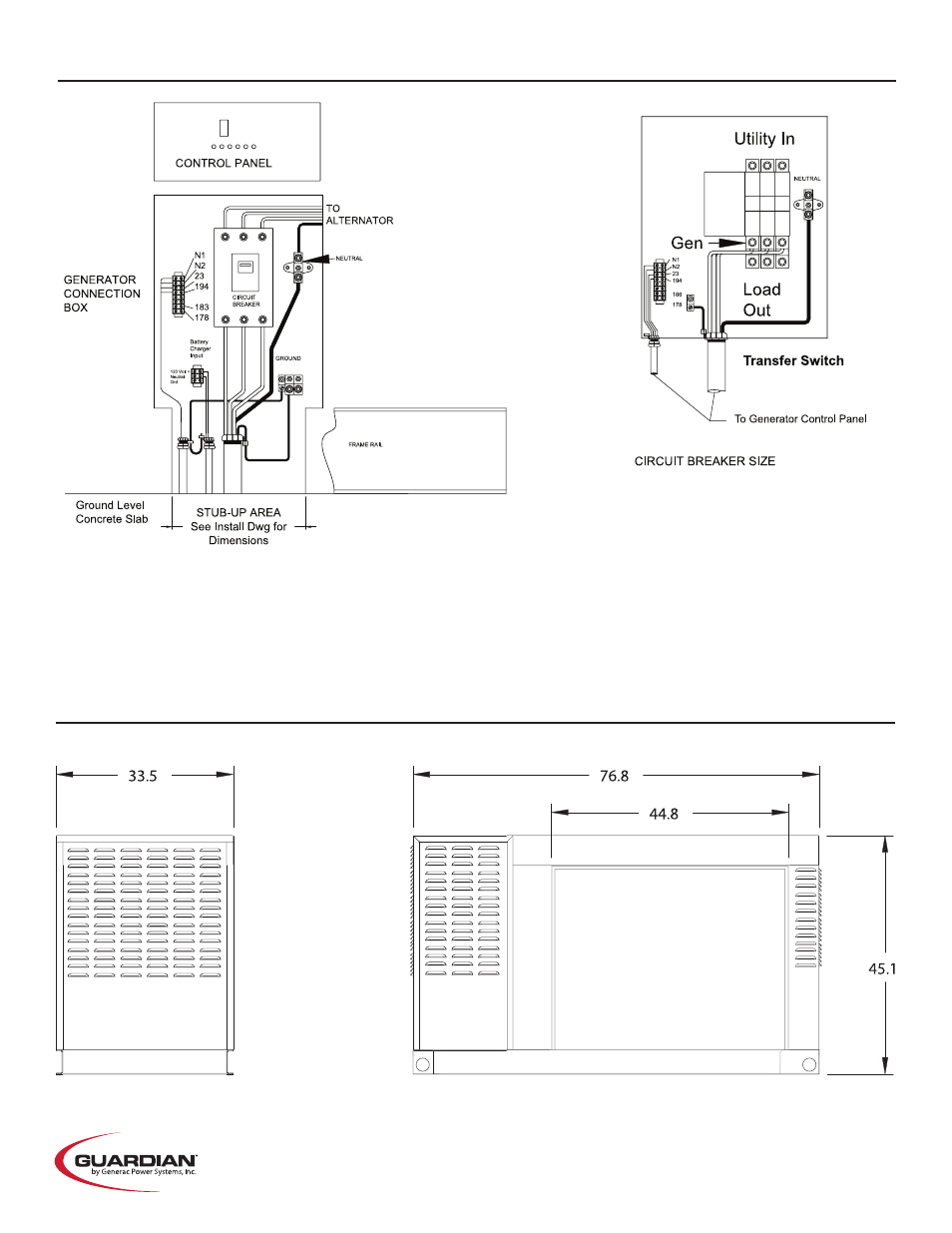

INTERCONNECTIONS
kW
VOLTS / AMPS LUG SIZE
60
240 1
Ø
300
(2) 250 mcm to 2 - 1/0 or
(1) 600 mcm to #4
60
208 3
Ø
250
(2) 250 mcm to 2 - 1/0 or
(1) 600 mcm to #4
60
240 3
Ø
200
#6 to 300 mcm
60
480 3
Ø
100
#6 to 300 mcm
INSTALLATION LAYOUT
Installation Drawing Ref. No. 0F9577
Generac Power Systems, Inc. • P.O. Box 8, Waukesha, WI 53187 • generac.com
©2008 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Bulletin 0179280SBY/Printed in U.S.A. 09.08
WEIGHT: 1650 lbs.
