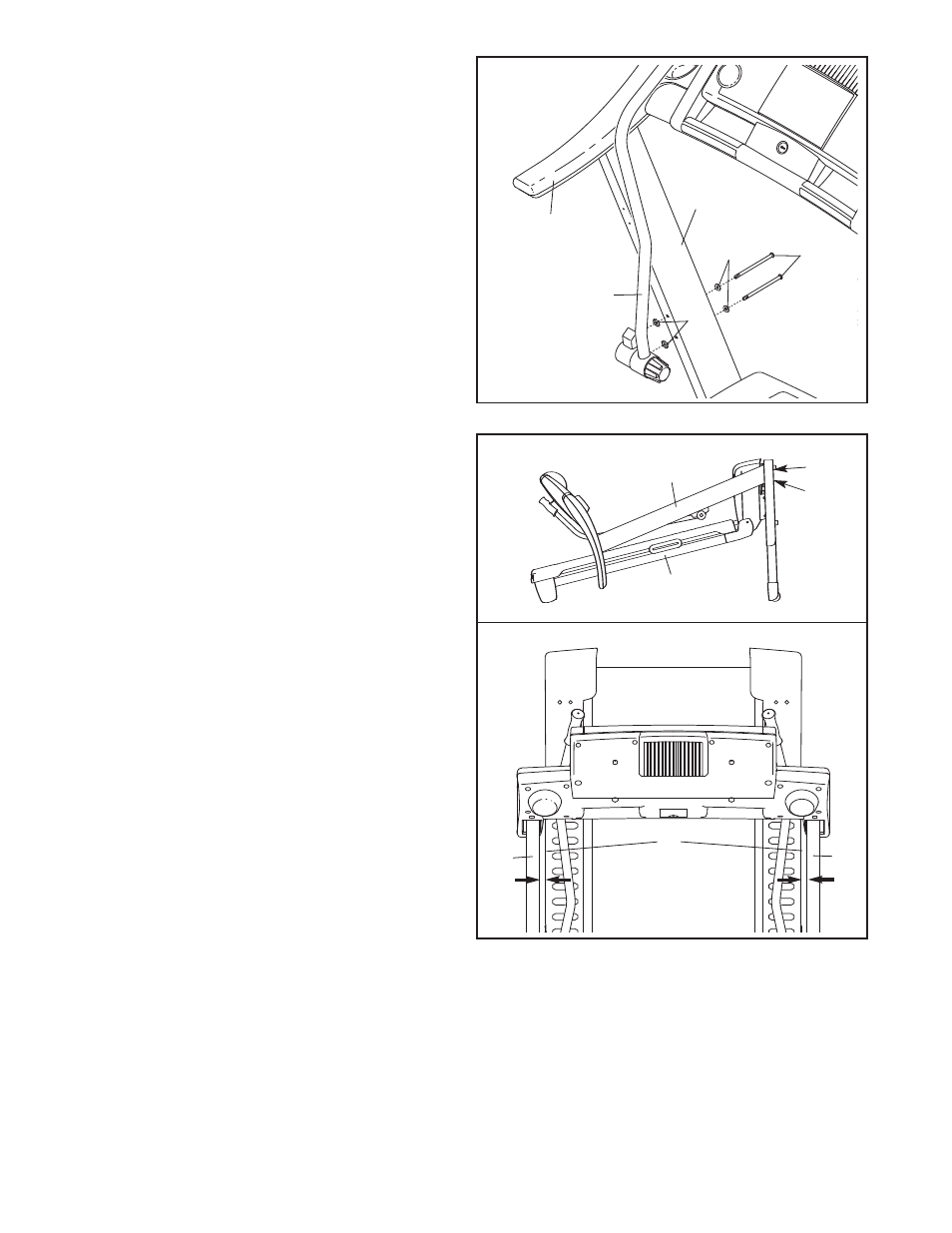

9. With the help of a second person, carefully
lower the Left and Right Uprights (84, 107) to
the position shown.
See the lower drawing. Position the Uprights
(84, 107) so that the treadmill Frame (58) is
centered between the Uprights.
Firmly tighten the two 3/8" x 1" Bolts (106) and
the two 3/8" x 2 3/4" Bolts (105).
Be careful not
to overtighten the Bolts.
With the help of a second person, carefully raise
the Uprights (84, 107).
9
58
105
106
84, 107
84
58
107
Top View
8. Attach the Left Upper Body Arm (97) to the Left
Upright (84) with two 1/4" x 4 1/2" Bolts (103),
two 1/4" Flat Washers (102), and two 3/8" Star
Washers (23) as shown.
Make sure that the
Left Upper Body Arm is on the indicated side
of the Left Handrail (13).
Attach the Right Upper Body Arm (not
shown) to the Right Upright (not shown) in
the same way.
8
13
97
102 103
23
84
