WARNING –
POTENTIAL FIRE AND SHOCK HAZARD
• Use only rigid metal or flexible metal 4 ″ diameter ductwork inside the dryer cabinet or for exhausting to the outside.
Use of plastic or other combustible ductwork can cause a fire. Foil or other easily punctured ductwork can cause a fire
if it collapses or becomes restricted in use or during installation.
• This appliance must be properly grounded and installed as described in these instructions.
Installation instructions
Spacemaker ™
for your new
Laundry
WSM2780 Gas
Before you begin – Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
TOOLS NEEDED
• Slip joint pliers
• Phillips-head and flat-blade screwdrivers
• Ratchet with 3/8
″ socket
• Carpenter’s level
• Adjustable wrenches
• Pipe thread sealer
49-90331
09-07 JR
134923400 (0907)
Printed in the United States
IMPORTANT
• Exhausting the dryer to the outside is required to
prevent large amounts of moisture, lint and other
products of combustion from being blown into the
room.
• Service information and a wiring diagram are located
in the dryer access panel.

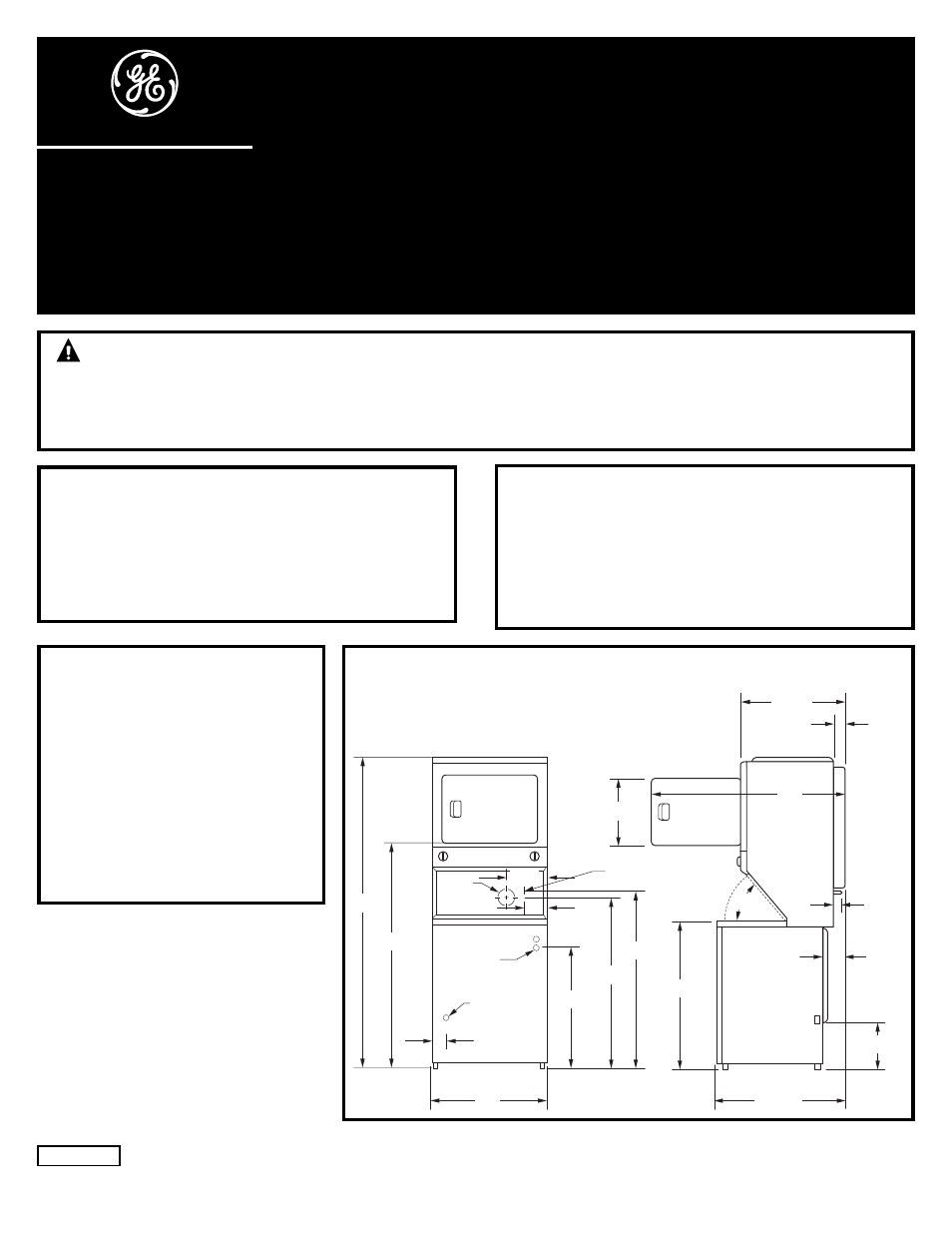

PRODUCT DIMENSIONS
73 1 ⁄
2
″
54 5 ⁄
16
″
3 3 ⁄
4
″
27 ″
Drain outlet
(rear)
Water
inlets (rear)
Vent
Gas supply
pipe (rear)
9 3 ⁄
8
″
5 1 ⁄
4
″
29 7 ⁄
16
″
41 1 ⁄
4
″
43 ″
25 1 ⁄
4
″
16 1 ⁄
4
″
2 1 ⁄
2
″
47 ″
1 7 ⁄
8
″
4 13 ⁄
16
″
11 7 ⁄
16
″
36 1 ⁄
16
″
30 13 ⁄
16
″
51°
CONTENTS
Installation Procedure . . . . . . . .page 2
Plumbing Information . . . . . . . .page 5
Electrical Information . . . . . . . . .page 5
Gas Information . . . . . . . . . . . . .page 6
Exhaust Information . . . . . . . . . .page 6
Mobile Home Installation . . . . .page 7
Alcove or
Closet Installation . . . . . . . . . . . .page 7
Door Ventilation Opening . . . . .page 8
Miscellaneous
Requirements . . . . . . . . . . . . . . . .page 8
