Lower unit carefully onto roof mounting curb. While rigging unit, center of gravity will cause condenser end to be lower
than supply air end.
To assist in determining rigging requirements, unit weights are shown as follows:
A
B
C
D
CG
SUPPLY
RETURN
EVAPORATOR COIL
CONDENSER
COIL
COMPRESSOR
Y
X

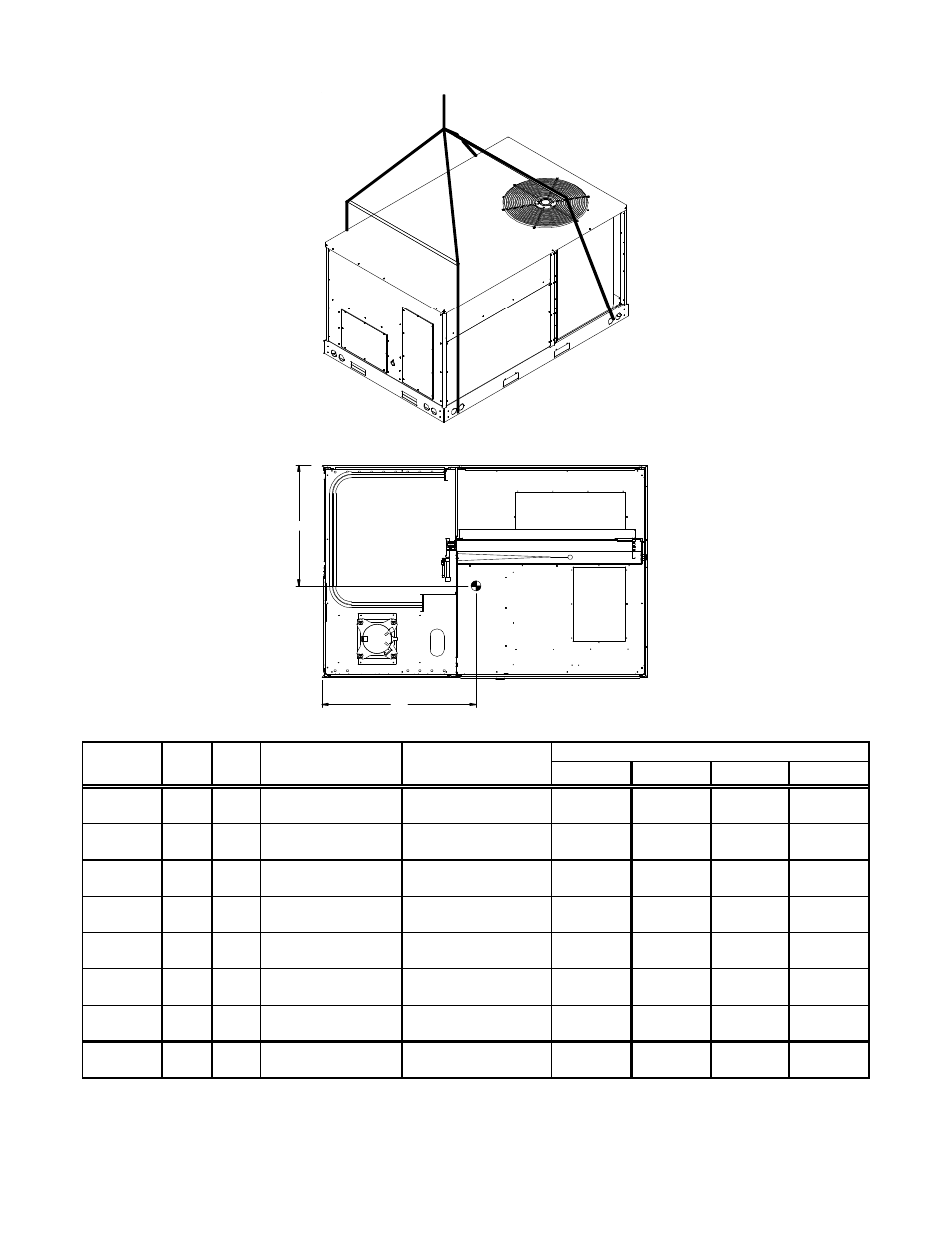

CORNER & CENTER OF GRAVITY LOCATIONS
A
B
C
D
CPC036*
35
27
525
500
115
150
105
130
CPC048*
35
27
560
535
125
160
110
140
CPC060*
35
27
605
580
135
170
120
155
CPC072*
35
27
665
640
150
190
130
170
CPH036*
34
28
605
580
130
180
110
155
CPH048*
34
28
610
585
135
185
115
155
CPH060*
34
28
615
590
135
185
115
160
CPH072*
34
28
675
650
145
205
125
175
Operating Weight
(lbs)
Corner Weights ( lbs )
* Weights shown are belt drive with no accessories.
