. assembling the seat
The seat comprises the seat fabric, which is pulled over the frame. The seat
fabric is fitted with back pad supports, foot support and seat pad. The seat has
2 shoulder belts, 2 waist belts, crotch belt and tensioning belt with metal
O-rings. When fastened together, the waist belts should stay in place at the
height of their attachment.

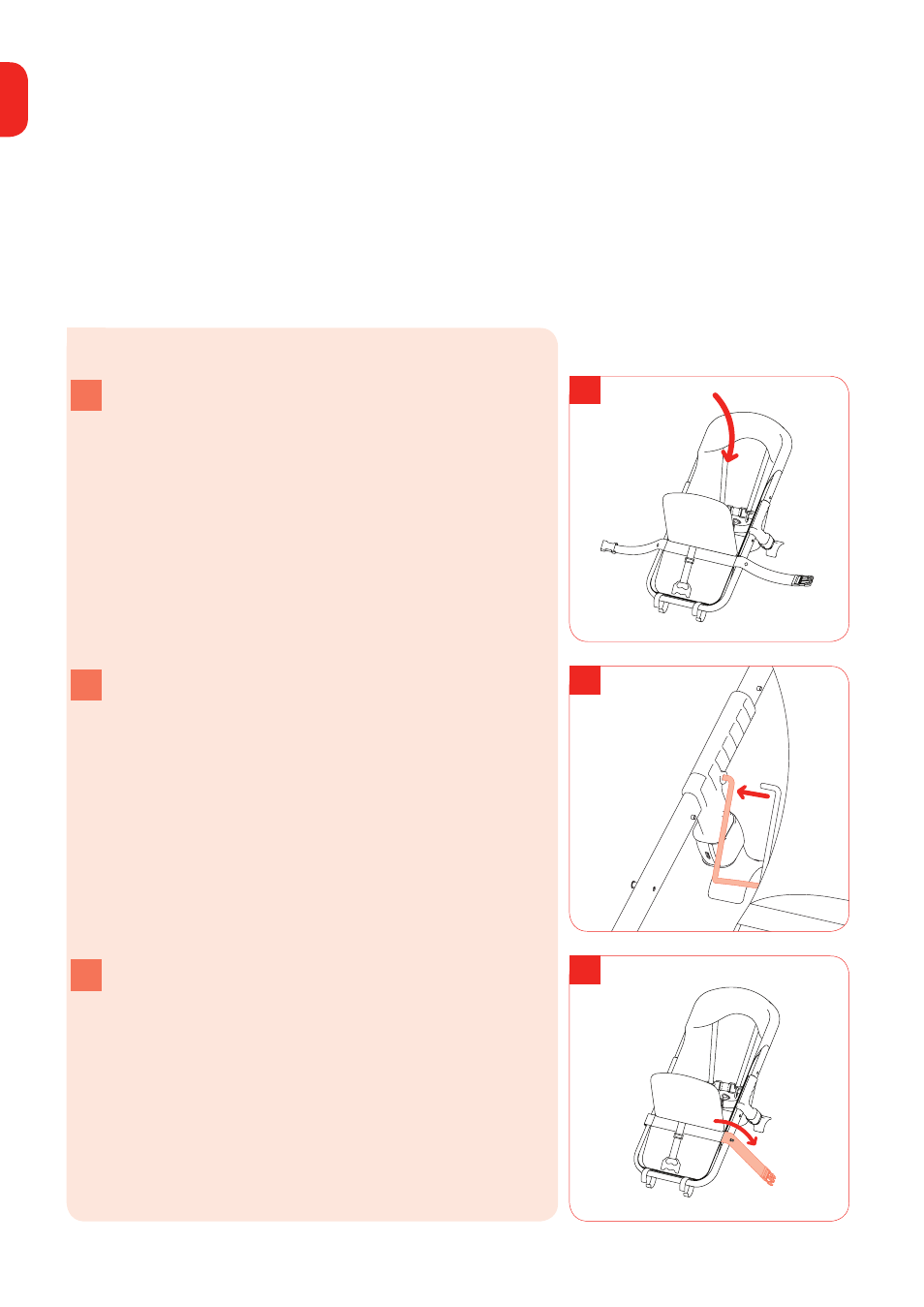

step placing the seat fabric on the frame
a. Place the frame on the floor.
b Slide the rounded upper side of the seat fabric over the
round side of the frame, with the Bugaboo logo facing
forward. Pull on the seat fabric so that it fits tightly.
c Fit the steel seat pad support into the round hole on the
inside of the frame. Do the same on the other side.
d Place one O-ring of the tensioning belt over the
protruding pin on the side of the frame.
e. Place the frame on that side to fasten the O-ring on the
other side.
f. Lean on the frame and push it inwards a little. Take hold
of the tensioning belt and pull the other metal O-ring
over the protruding pin.
