Key to J2 wiring block on TS0862:
EG = Egress.
+
= 5V power supply, red wire.
0V = LAN Ground — 0V connection, black wire.
D0 = Data 0 — Clock connection to Reader, green wire.
D1 = Data 1 — Data connection to Reader, white wire.
L1 = LED 1 — Reader green LED, brown wire.
See Door Data Menu.
L2 = LED 2 — Reader red LED, orange or yellow wire. See Door Data
Menu.
BZ = Buzzer — Reader beeper, blue wire.

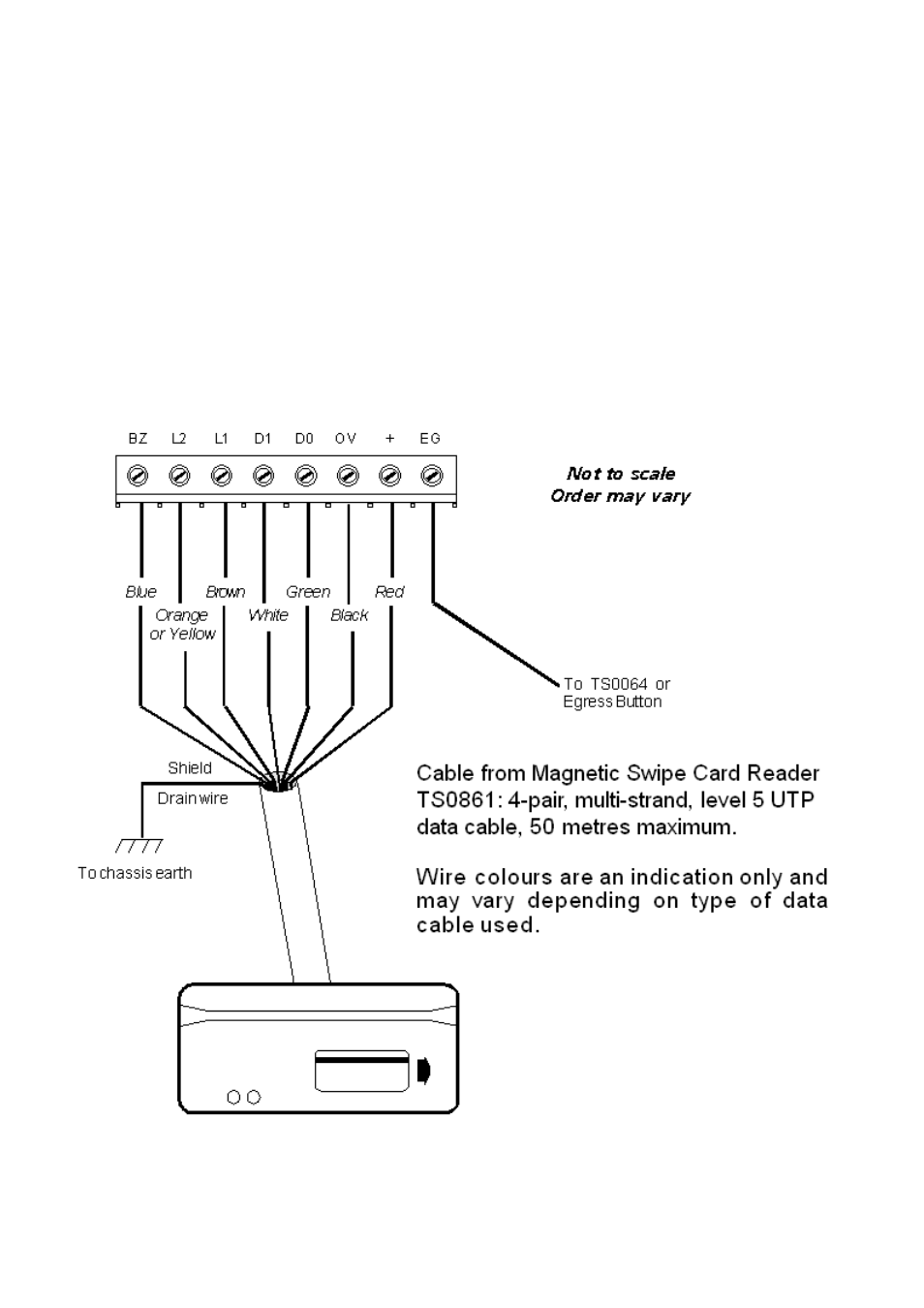

Figure 1 Connecting the TS0861 Magnetic Swipe Card Reader to the wiring block
on the TS0862 Smart Door Controller
TS0861 Magnetic Swipe Card Reader Installation Guide 4
