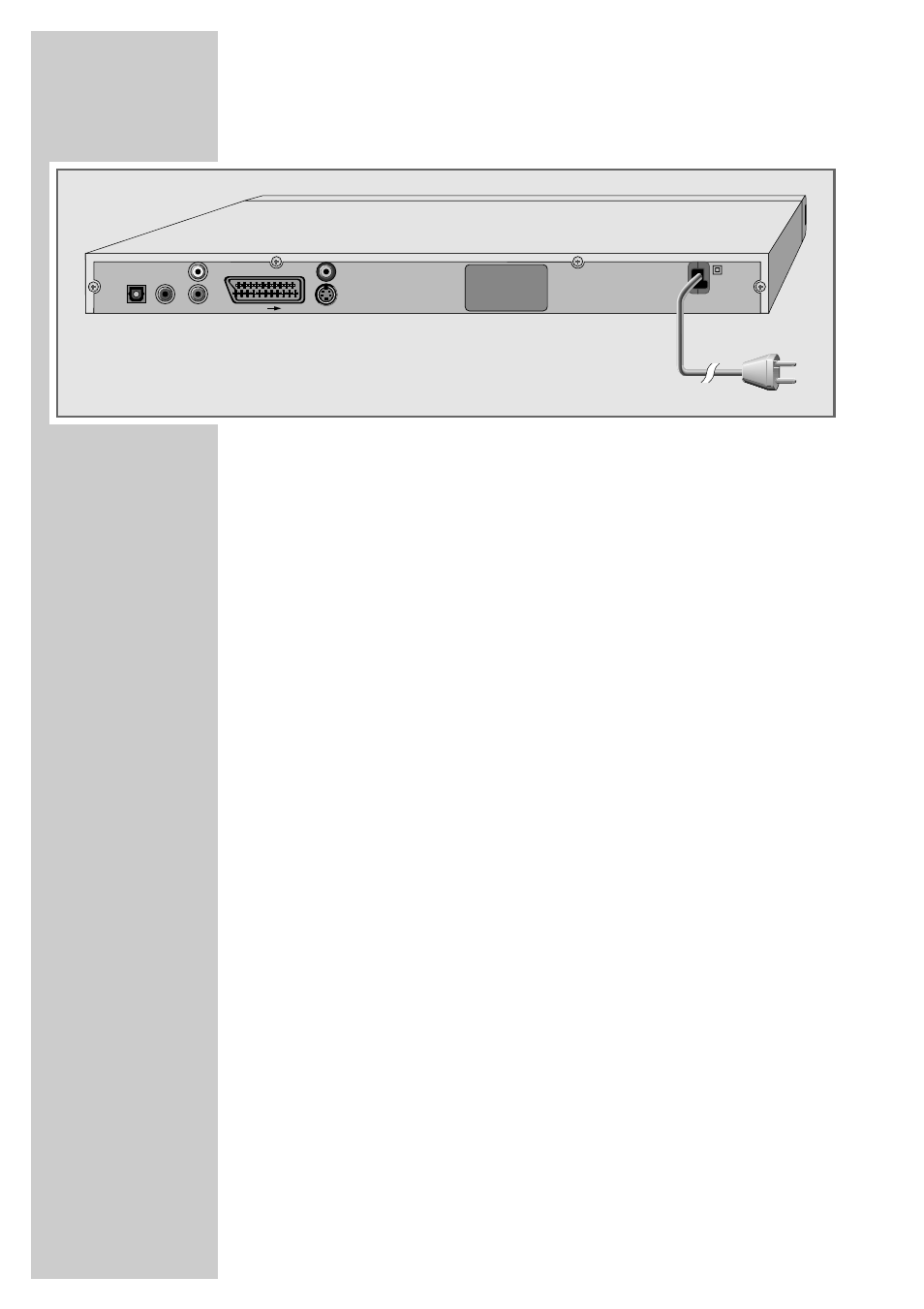

The back of the DVD player

DIGITAL AUDIO OUT

Audio output socket (optical) for PCM/
Dolby digital/ DTS signals.
Audio output socket (coaxial) for PCM/
Dolby digital/ DTS signals.
For connecting a digital multi-channel audio
video amplifier or AV receiver.

AUDIO OUT L R

Audio output sockets (left/right analogue chan-
nel) for connecting an audio system.

EURO AV

TV

For connecting a television with an EURO-AV
socket.

S VIDEO OUT

Video output socket for connecting a television
or AV receiver with an S video socket.

VIDEO OUT

Video output socket for connecting a television
or AV receiver with a Cinch socket.

100-240 V~

Mains cable.

50/60 Hz 10 W

Caution:

Do not connect any devices while the DVD play-
er is switched on. Switch off the other device as
well before connecting it.
Never touch the inside of the sockets and plugs
of the connecting cables. An electrostatic
discharge can damage the DVD player.

OVERVIEW

____________________________________________

S VIDEO OUT

DIGITAL AUDIO OUT

VIDEO OUT

L

R

AUDIO OUT

100-240 V

~

50/60 Hz 10 W

EURO AV TV
