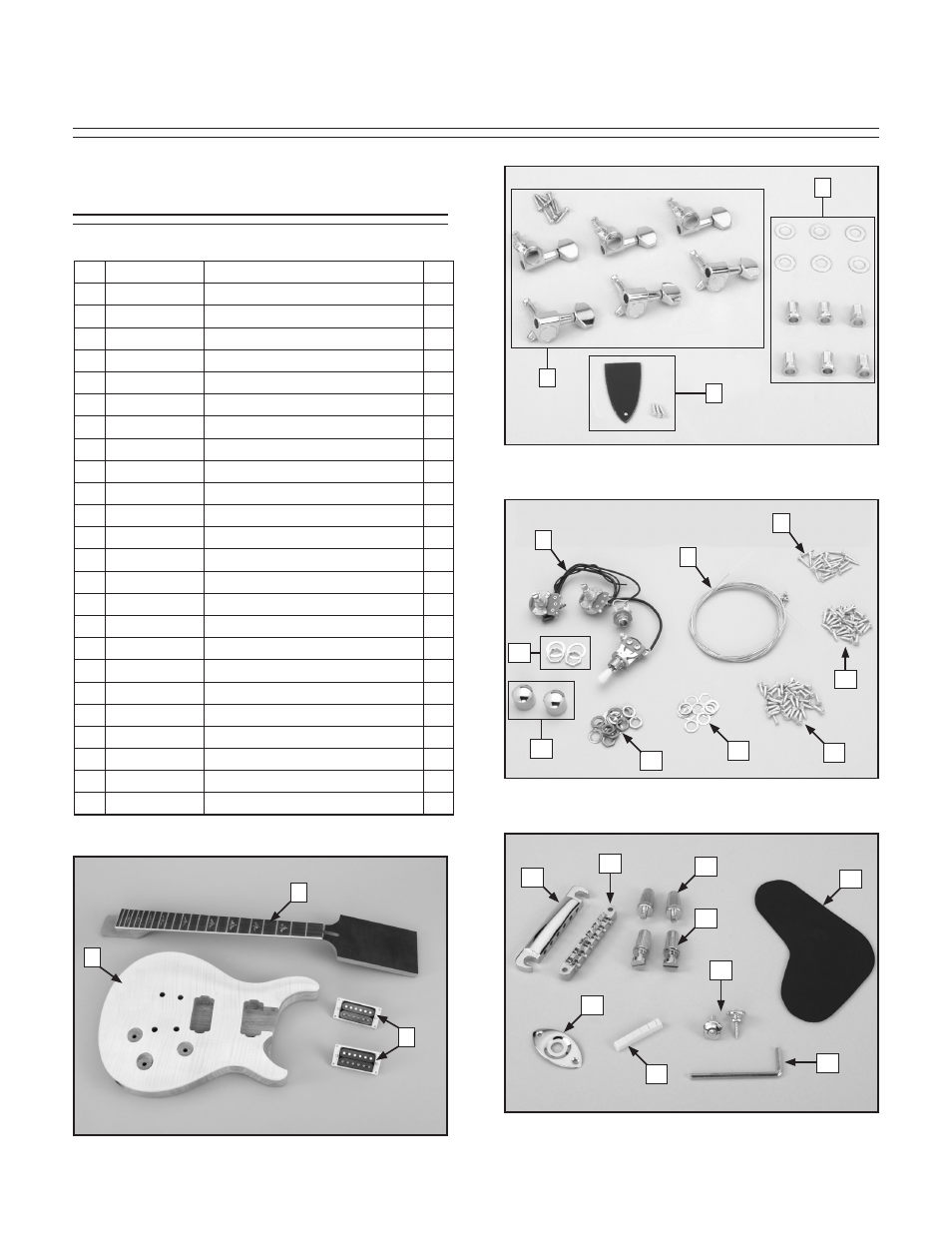

Model H6082, H6083, and H6086 Heirloom Electric Guitar Kits

Figure 4. H6082/3 more guitar parts.

SECTION 3: PARTS INVENTORY

Figure 2. H6082/3 peghead components.

Figure 3. H6082/3 guitar parts.

5

11

6

10

Figure 1. H6082/3 boxed components.

2

1

3

7

14

18

20

22

4

REF

PART #

DESCRIPTION

1

PH6082001 Neck

1

2

PH6082002 Guitar Body for H6082

1

2

PH6083002 Guitar Body for H6083

1

3

PH6082003 Pickups

2

4

PH6082004 Tuners with Screws

6

5

PH6082005 Tuner Bushings with Washers

6

6

PH6082006 Truss Rod Cover w/Screws

1

7

PH6082007 Wiring Harness

1

8

PH6082008 Strings

6

9

PH6082009 Tap Screws M2 X 12

9

10 PH6082010 Tap Screws M5 X 45

10

11 PH6082011 Tap Screws M3 X 12

14

12 PH6082012 Audio Jack Nuts w/Washers

2

13 PH6082013 Control Knob Nuts w/Washers 3
14 PH6082014 Control Knobs

2

15 PH6082015 Audio Jack Nuts w/Washers

2

16 PH6082016 Tailstop

1

17 PH6082017 Bridge

1

18 PH6082018 Bridge Adjusting Assembly

2

19 PH6082019 Tailstop Adjusting Assembly

2

20 PH6082020 Control Cavity Cover Plate

1

21 PH6082021 Strap Buttons w/Screws

2

22

PAW04M

Hex Wrench 4mm

1

23 PH6082023 Nut

1

24 PH6082024 Audio Jack Plate

1

8

9

12

13

15

16

17

19

24

23

21
