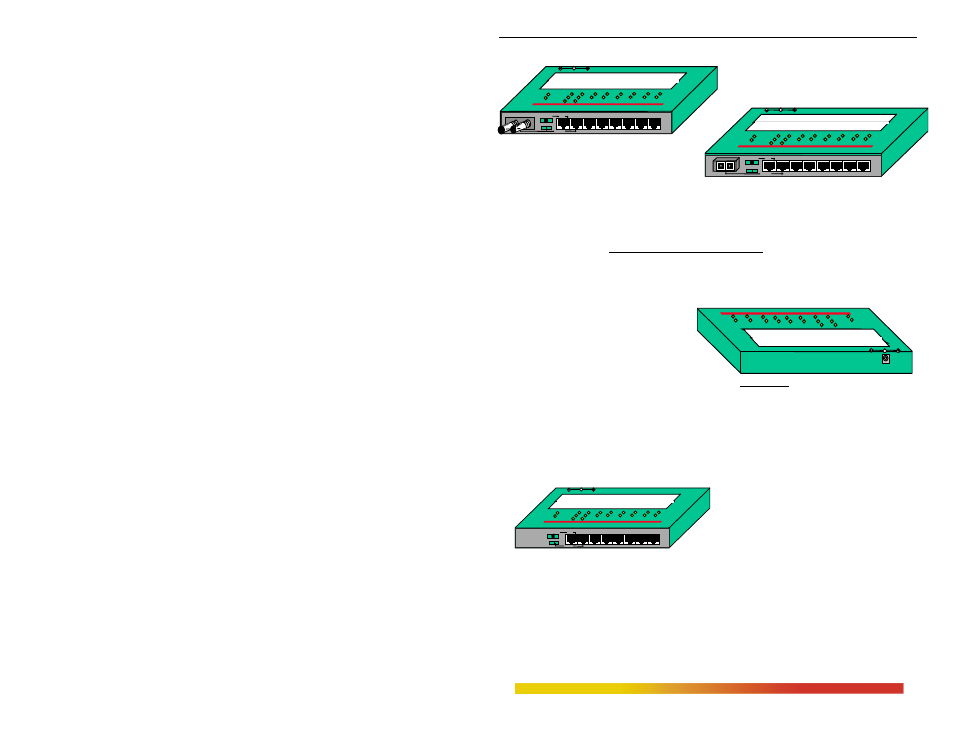

2.2.1 Magnum DS80F chassis with fiber ST or SC (mm or sgl. mode) connector
Fiber ST above, fiber SC at right
The Magnum DS80F chassis
houses one main PC board. The power supply unit is external. The front side of the chassis has
eight RJ-45 twisted-pair ports and one 100Mbps fiber port. Port #2SW always supports fiber
ports only and the RJ-45 connector is inoperative at all times. LEDs to indicate operating status
of all ports are mounted on the top. There are power (PWR) and ERROR (self-test at power up
failed) indicators for the unit. For each port, there are Link and Activity (LINK/ACT) LEDs
indicating traffic, and speed (ON for
100Mbps). Switched ports 1SW and 2SW
have full-half (F-H) duplex indicators.
The DC power plug connector or
“jack” is in the left rear of the chassis. Rear View Magnum DS80-Series
The external power supply is 5VDC at either 95 - 125vac at 60 Hz for “-d” models or 120-
250vac at 50Hz for “-i” models that have IEC power cable connector in the external power
supply housing.
2.2.2 Magnum DS80C chassis with all RJ-45 Copper ports
The Magnum DS80C chassis
houses one main PC board. The power
supply unit is external. The front side of the
chassis has eight RJ-45 twisted-pair ports.
The 1SW and 2SW ports are switched ports
with selectable Fullfixed- and Auto-negotiation (FF-A) capability. See section 4.4.
LEDs to indicate operating status of all ports are mounted on the top. There are power
(PWR) and ERROR (self-test at power up failed) indicators for the unit. For each port, there are
Link and Activity (LINK/ACT) LEDs indicating traffic, and speed (ON for 100Mbps). Switched
ports 1SW and 2SW have full/half (F/H ON for full duplex) duplex indicators.
