AltaDyne AutoFloat
Operator Control Panel
1.
ON/STANDBY switches Control Unit between On
and STANDBY modes.
2.
POWER INDICATOR LED indicates AC power is
present to the Control Unit.
3.
MODE SELECT Press repeatedly to toggle through
operating modes, Auto/Float, Auto/A/P,
Manual/Float and Manual/A/P.
3.1 AUTO MODE (Sensor cord from mattress must
be connected to control unit) Mattress will
automatically inflate to optimal level based on
information received from active sensors in
mattress. The indicator adjacent to the icon,
will light while automatic mode is active.
Note: Connecting the mattress sensor cord while
the unit is not in automatic mode will cause the
Control Unit to enter automatic mode immediately.
If Sensor cord from mattress becomes
disconnected from control unit while in Auto
mode, alarm will sound.
3.2 MANUAL MODE Mattress inflation level user
determined by Comfort Adjust (-, +) setting.
The indicator adjacent to the icon will light
while manual mode is active.
3.3 FLOAT MODE all cells within mattress will be
uniformly inflated when this icon is illuminated.
3.4 AP MODE. (Alternating Pressure) Adjacent cells
within mattress will be alternately inflated and
deflated in this mode. The indicator adjacent to the
icon will light while AP mode is active.
Note: AP mode is temporarily suspended in max
inflate mode.
4.
SOFT (–) decreases the inflation level of the bed
while Control Unit is in manual mode only.
Pressing once will decrease the setting by one
comfort level. Pressing and holding will rapidly
change the setting.
5.
COMFORT CONTROL INDICATOR displays
the current inflation level setpoint.
6.
FIRM (+) increases inflation level of the bed while
in manual mode only. Pressing once will increase
the setting by one comfort level setting
(~2.5mmHg). Pressing and holding will rapidly
change the setting.
7.
MAX INFLATE selects/deselects the max inflate
mode (maximum mattress firmness). The indicator
adjacent to the button will flash while max inflate
mode is active. After 30 minutes, max inflate mode
will cancel.
8.
LOCKOUT activates or cancels lockout mode.
Press and hold for three seconds to activate or
cancel mode. The indicator adjacent to the button
will light while lockout is active. In lockout mode,
only the MAX INFLATE button is operational.
All other buttons are temporarily inactive.
9.
ALARM SILENCE silences indefinitely,
the audible alarm.
10. POWER FAIL INDICATOR flashes when power
supplied from line cord is interrupted while the
Control Unit is operating. To avoid an inadvertent
power fail alarm, place the unit in STANDBY mode
before disconnecting power from Control Unit.

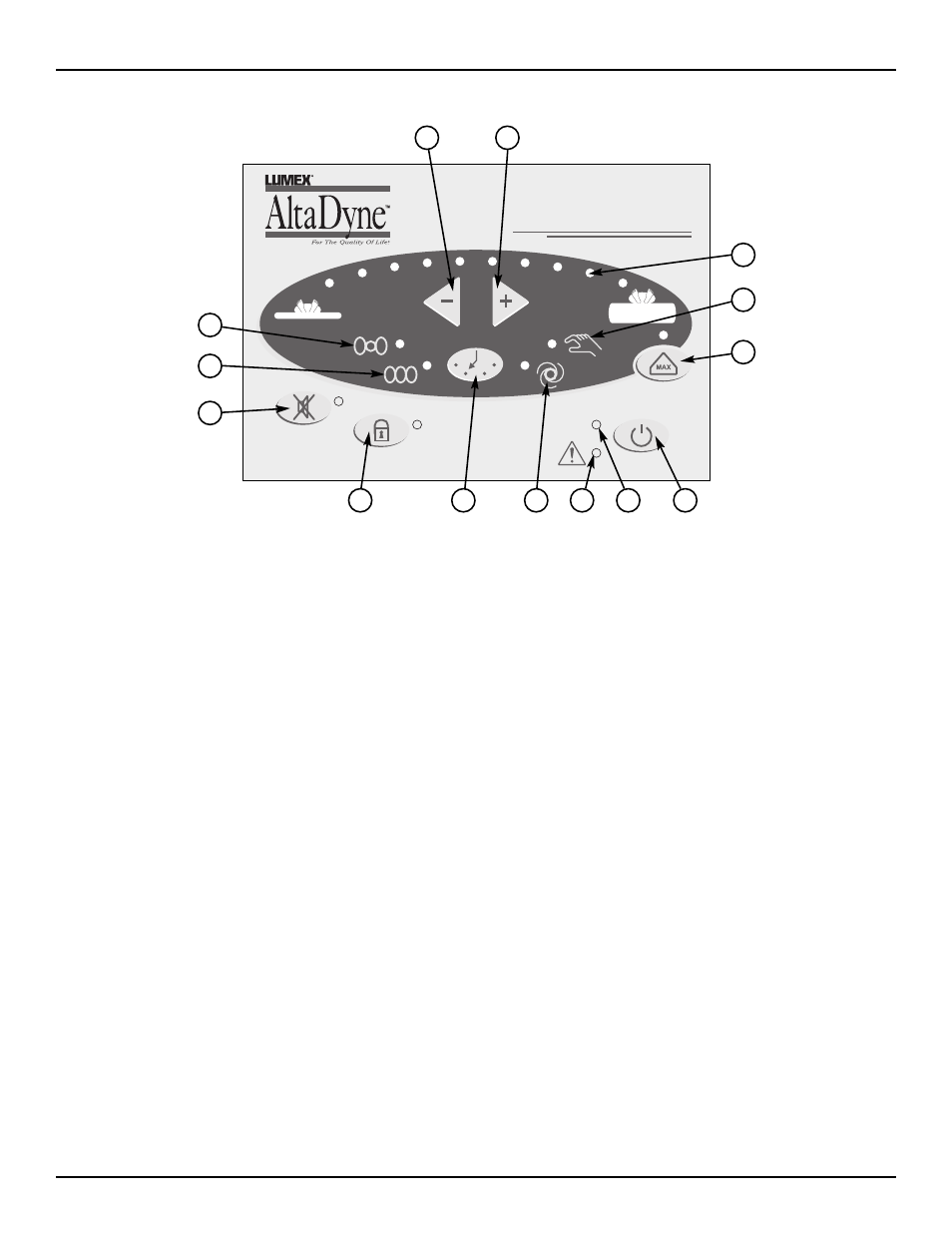

Auto Float
APM Plus
2
6
4
5
3.2
7
1
3.4
10
3.1
3
8
9
3.3
8.0 Operator Control Panel
