6 Genie TML-4000 and TML-4000N Part No. 97600
Operator's Manual Third Edition • Second Printing

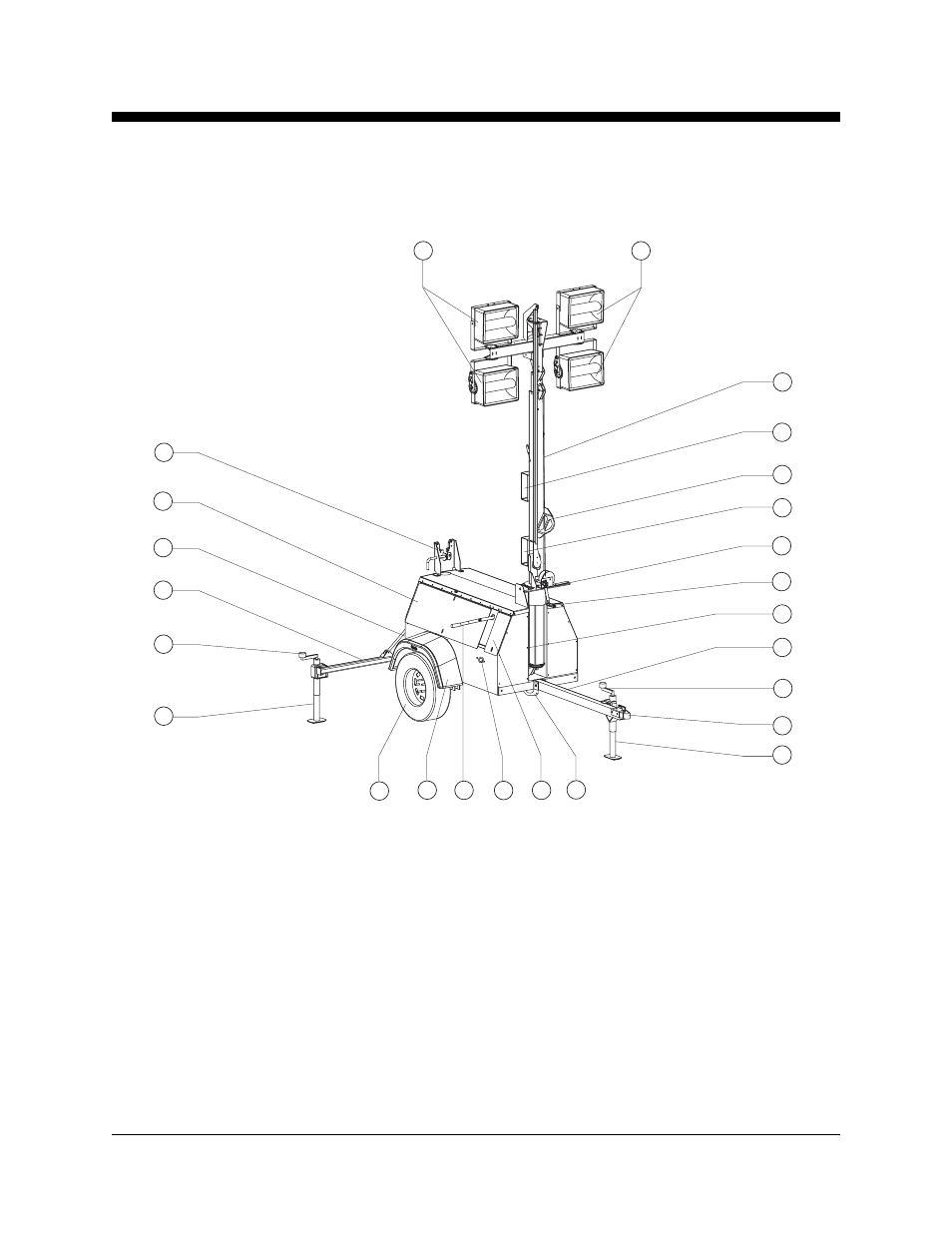

1 Outrigger leveling jack with
footpad
2 Outrigger jack handle
3 Outrigger
4 Transport tie-down (hidden
behind machine)
5 Cover
Access under this cover:
Engine
Generator
Grounding rod attachment
Power outlets (Standard models)
Access under opposite cover:
Fuel tank
Power outlets (Narrow models)
Manual storage container
6 Mast hold-down latch
7 Lamp fixtures
8 Mast
9 Forklift pocket
10 Lifting eye
11 Mast rotation lever
12 Extend/Retract winch handle
13 Front spring latch (behind
mast)
14 Tongue outrigger
15 Coupler
16 Transport tie-down (one on
each side of tongue outrigger)
17 Control panel (under cover)
18 Mast release latch
19 Raise/Lower winch handle
20 Fender
21 Tire
