14

CONNECTION AND PREPARATION

_

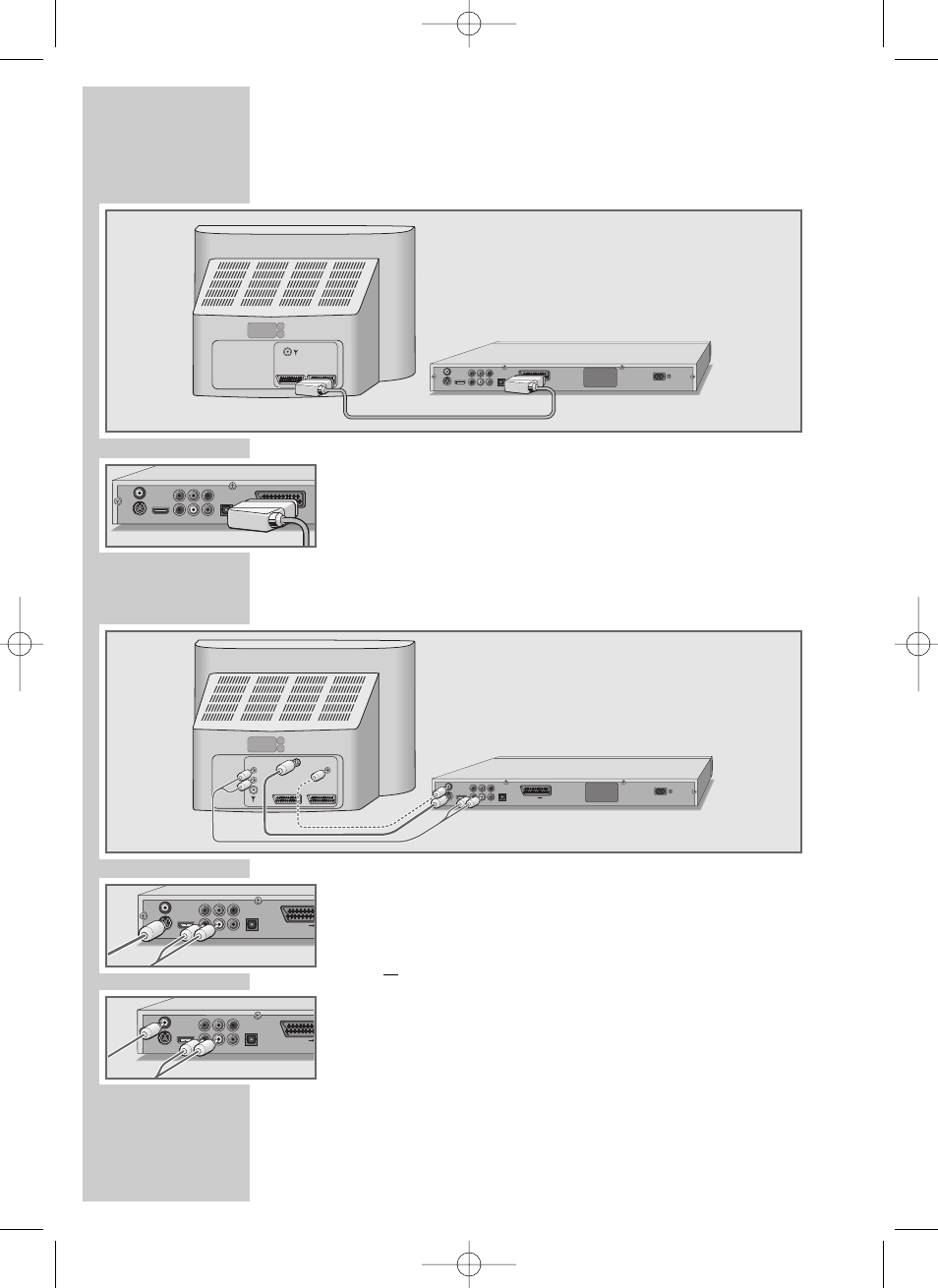

Connection using a EURO-AV (Scart) cable

1

Plug the EURO-AV cable supplied into the »

EURO AV

TV

«

socket of the DVD player and into the corresponding socket of
the television or flat screen.

Connection using a Y/C (S-VIDEO) cable or a
cinch cable (picture signal) and a cinch cable
(audio signal)

1

Plug a standard Y/C cable into the »

S VIDEO OUT

« socket

of the DVD player and into the corresponding socket (S VIDEO
IN) of the television or flat screen;

or

plug the cinch cable supplied into the »

VIDEO OUT

« socket

on the DVD player and the corresponding socket (VIDEO IN) on
the television or flat screen.

2

Plug the cinch cables supplied into the »

R AUDIO OUT L

«

sockets of the DVD player and the appropriate sockets (AUDIO
IN) on the television or flat screen.

EURO AV

S VIDEO OUT

DIGITAL AUDIO OUT

AUDIO OUT

Pr/Cr

Y

Pb/Cb

R

L

HDMI OUT

VIDEO OUT

EURO AV

S VIDEO OUT

DIGITAL AUDIO OUT

AUDIO OUT

Pr/Cr

Y

Pb/Cb

R

L

HDMI OUT

VIDEO OUT

AV1

AV2

S-VIDEO

IN

VIDEO

INPUT

L

AUDIO

INPUT

R

100-240 V~
50/60 Hz 15 W

EURO AV TV

S VIDEO OUT

DIGITAL AUDIO OUT

AUDIO OUT

Pr/Cr

Y

Pb/Cb

R

L

HDMI OUT

VIDEO OUT

EURO AV TV

S VIDEO OUT

DIGITAL AUDIO OUT

AUDIO OUT

Pr/Cr

Y

Pb/Cb

R

L

HDMI OUT

VIDEO OUT

100-240 V~
50/60 Hz 15 W

EURO AV TV

S VIDEO OUT

DIGITAL AUDIO OUT

AUDIO OUT

Pr/Cr

Y

Pb/Cb

R

L

HDMI OUT

VIDEO OUT

AV1

AV2
