G9956 Heavy-Duty Hanging Air Filter

-17-

-17-

G9956 Heavy-Duty Double Air Filter

Disconnect

power

from

machine before performing
any

electrical

service.

Failure to do this will result
in a shock hazard leading to
injury or death.

WV 250 ACV

CAP 20 MFD

SH CAPACITOR

110 Volts

Neutral

Ground

Ground

Motor

Breaker/Reset

Power Cord

Main Switch

Spade Plug

for Receiver

Connections for

Remote Control

Receiver

Made Here

Pin Plug

for Receiver

Pull Chain

Switch

Run Capacitor

Please use the component

diagrams to help with

identification.The main switch

and breaker/reset are shown

from the back.

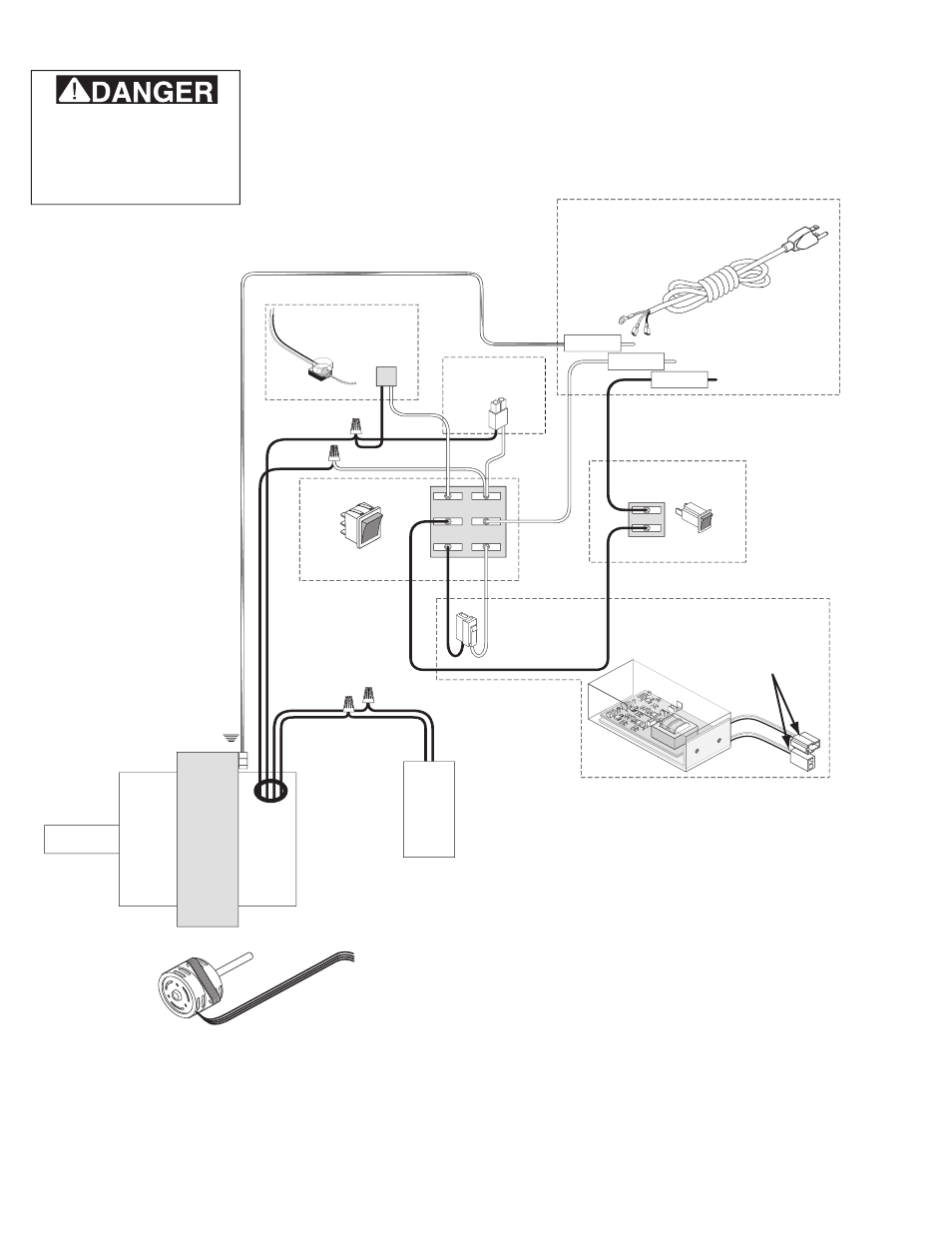

G9956 Wire Diagram
