For answers to your Monogram,

GE Profile

™

or GE

appliance questions, visit our website

at ge.com or call GE Answer Center

service,

800.626.2000.

110111

Specification Created 3/08

Listed by

Underwriters

Laboratories

ZIS360NX

GE Monogram

36" Built-In Side-by-Side Refrigerator with Automatic

Icemaker and Water Filter

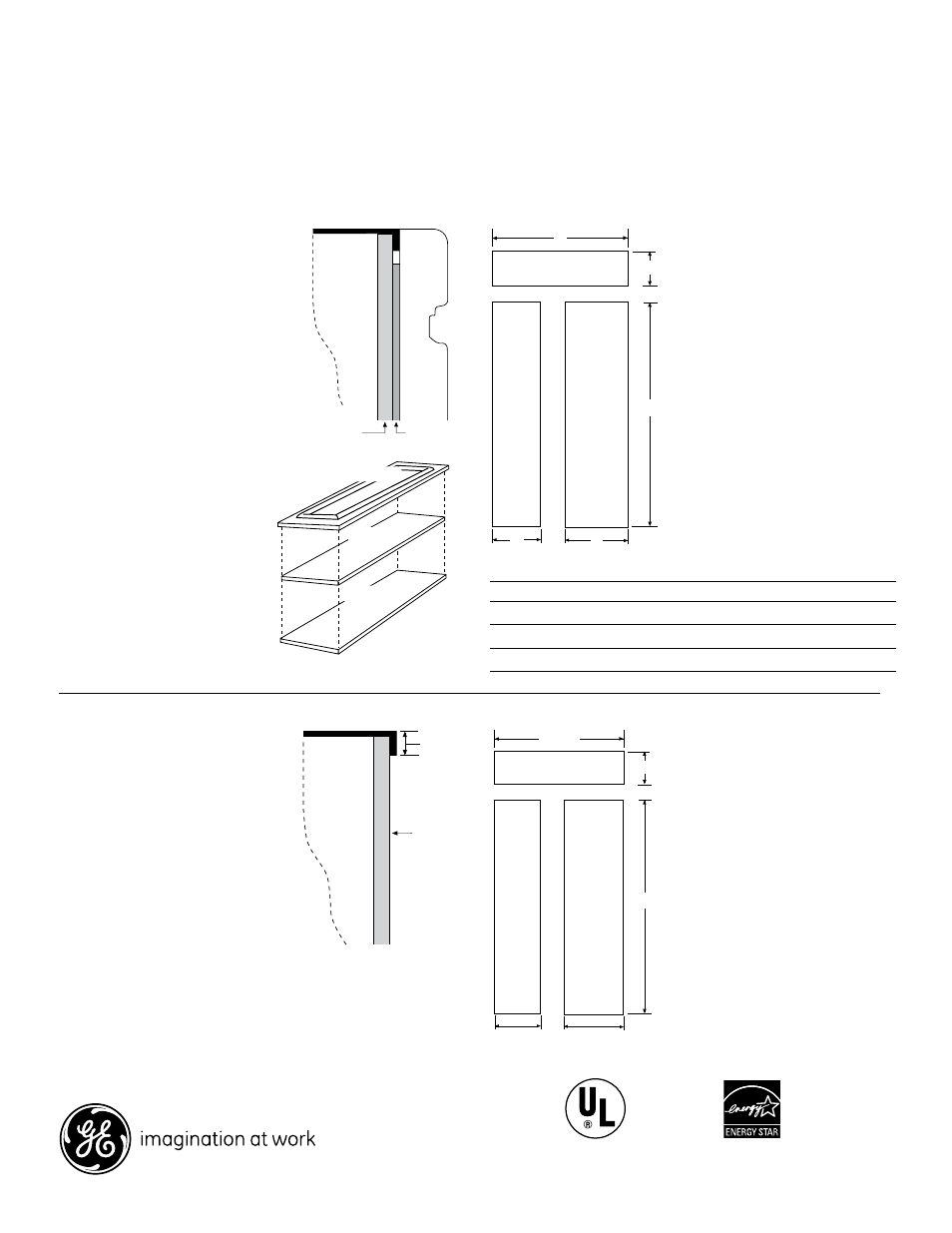

Dimensions and Installation Information (in inches)

As an EnErgy StAr

partner, gE has determined

that this product meets the

EnErgy StAr guidelines

for energy efficiency.

36" Side-by-Side (in inches)

1/4" Backer Panel 33-7/8 9

68-3/8 14-9/16 18-9/16

.10" Spacer Panel 33

8-3/8 67

13-1/4 17-1/4

3/4" Spacer Panel 34-1/8 9-1/4 68-5/8 14-13/16 18-13/16

Fresh Food

Panel

Freezer

Panel

14-19/16"

18-9/16"

33-7/8"

Grille Panel

68-3/8"

3/4" Overlay Panel

Dimensions

For a more custom appearance,

overlay panels may be installed

on trimmed models. The overlay

panel must be secured to a 1/4"-

thick backer panel which slides

into the trim. A spacer panel 0.10"

thick must be placed between the

overlay and backer panels.

194Dia_58

3/4"

Overlay

Panel

Door

.10"

Spacer

1/4"

Backer

Panel

.250" + .10" + .750" =

1.100" Total Panel Thickness

NOTE: Left-to-right offset

is not always equal to

top-to-bottom offset.

Important Note: Maximum total
panel weight:
• Fresh food door panel – 75 lbs.
• Freezer door panel – 53 lbs.
• Grille panel – 18 lbs.

Center each panel over the

other. Assemble the panels

with glue and screws. Screws

must be countersunk into the

backer panel.

194Dia_65

Spacer Panel

Overlay Panel

Backer Panel

1/4" Framed Panel

Dimensions

If you choose to install framed

panels, they must be cut to the

dimensions shown. The panels will

slide into the frame on the door and

grille.
If the custom panel is less than 1/4"

thick, and it fits loosely in the door

frame, it can be backed up with a

piece of filler material or foam tape

to improve the fit.
Important Note: Maximum weight

for fresh food panel is 50 pounds and

30 pounds for freezer panel.

194Dia_59

Door

5/16"

Trim

Reveal

1/4"

Panel

194Dia64

Fresh Food

Panel

Freezer

Panel

Grille Panel
