Installation

36" Island Vent Hood

Check
Installation
Hardware

Step

Check contents of the required
accessory, ZX858, ZX859 or ZX8510.

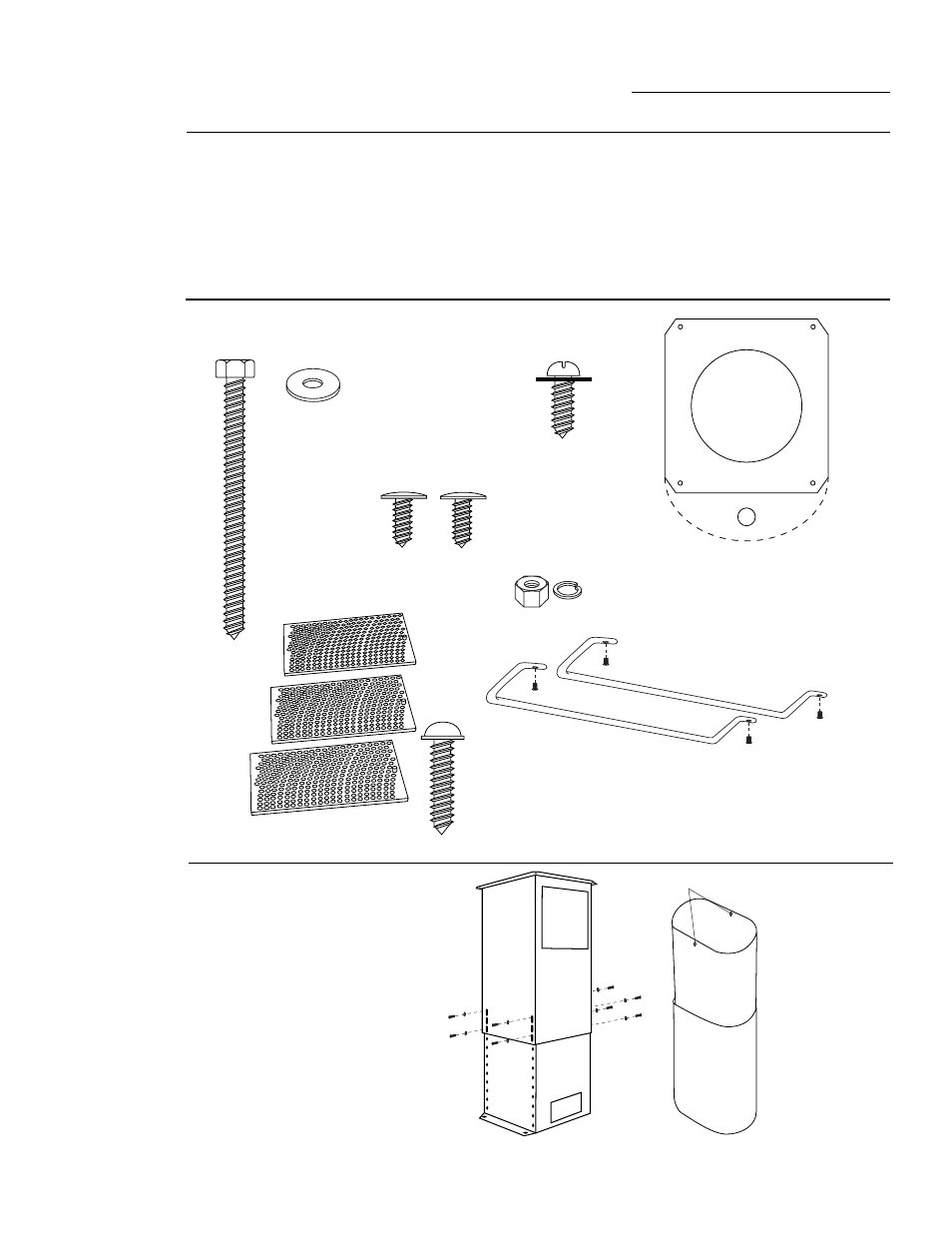

Locate the hardware accessory box packed
with the hood and check contents.

4 Hex head

wood lag screws

(6mm x 2-1/2")

(1/4 x 2-1/2")

4 Flat Washers

8 Frame Attachment

Screws with Washers

(attached to

accessory support

frames)

Template

2 Phillips Head

Decorative Screws

2 Side Bars With 4 Machine Screws

3 Filters

Check service manual envelope taped

to the front on the hood to be sure it

contains one stop screw. Leave this

screw in the envelope.

4 (10mm) Nuts and Lock Washers

Remove the
Packaging

Step

The vent hood is packed separate from the
required accessory ZX858, ZX859 or ZX8510.
• Remove the frame, cover, parts box, side bars

and packaging.

• Remove junction box cover.
• Install strain relief onto junction box cover.

Decorative Duct Covers

Front of Hood

Mounting Screw Holes

Support Frames

with 8 Screws

and 8 Washers
