Part # 4526029 (02/22/11)
Page 17

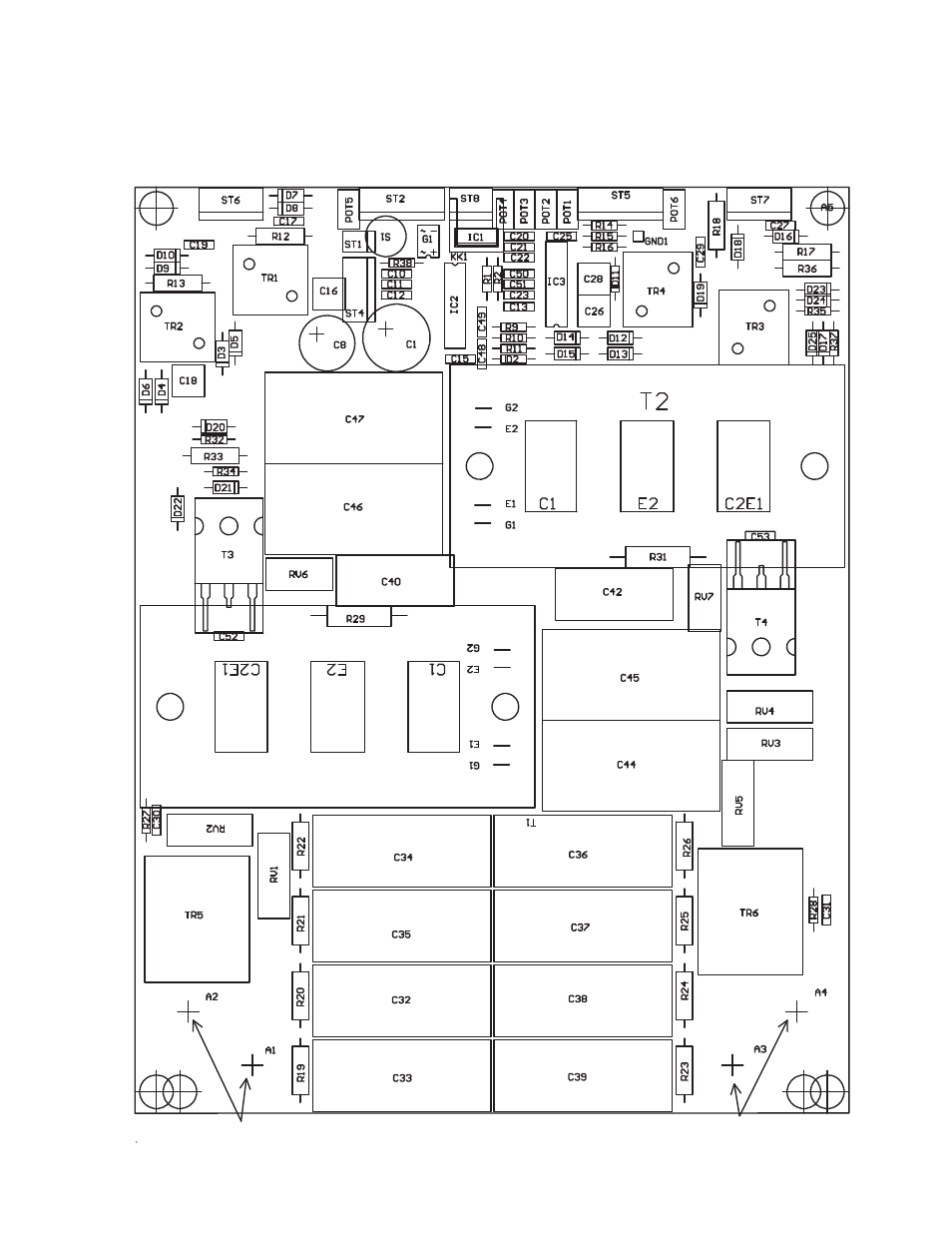

Power Circuit Board C026
View components side
power
adjustment
field 1
power
adjustment
field 2
POT1-4 und ST5
optional
current
measure
signal
Connection
with
c018 –
logic board
IGBT pre
drive
IGBT pre
drive
Coil connection
field 1
Coil connection
field 2
