Measure carefully when cutting the countertop.
Make sure sides of the opening are parallel.
• These cooktops require 8" free space below the
countertop to house the cooktop burner box.
• Allow additional clearances below the burner box
to install the regulator and make house supply
connections. Use a 90° elbow to route the gas
connections and limit interference with drawers
or other cabinetry features.
• These cooktops are designed to hang from the
countertop from its rear and side flanges.
• Smooth any rough edges on the countertop before
installing the cooktop.
– Formica countertop edges must be finished.
The countertop must be strong enough to
support the weight of the cooktop.
• Support cleats can be secured to cabinet sides.
OR
• Build a support deck or box inside the cabinet which
will support the weight of the cooktop.
– Build the support box using a solid material, cut a
5" x 5" square in the left rear corner for the gas inlet
and power cord clearances.
• After the cooktop is installed, the bottom front edge of
the cutout may need to be covered. Install a trim strip
from the cabinet manufacturer to match cabinetry.

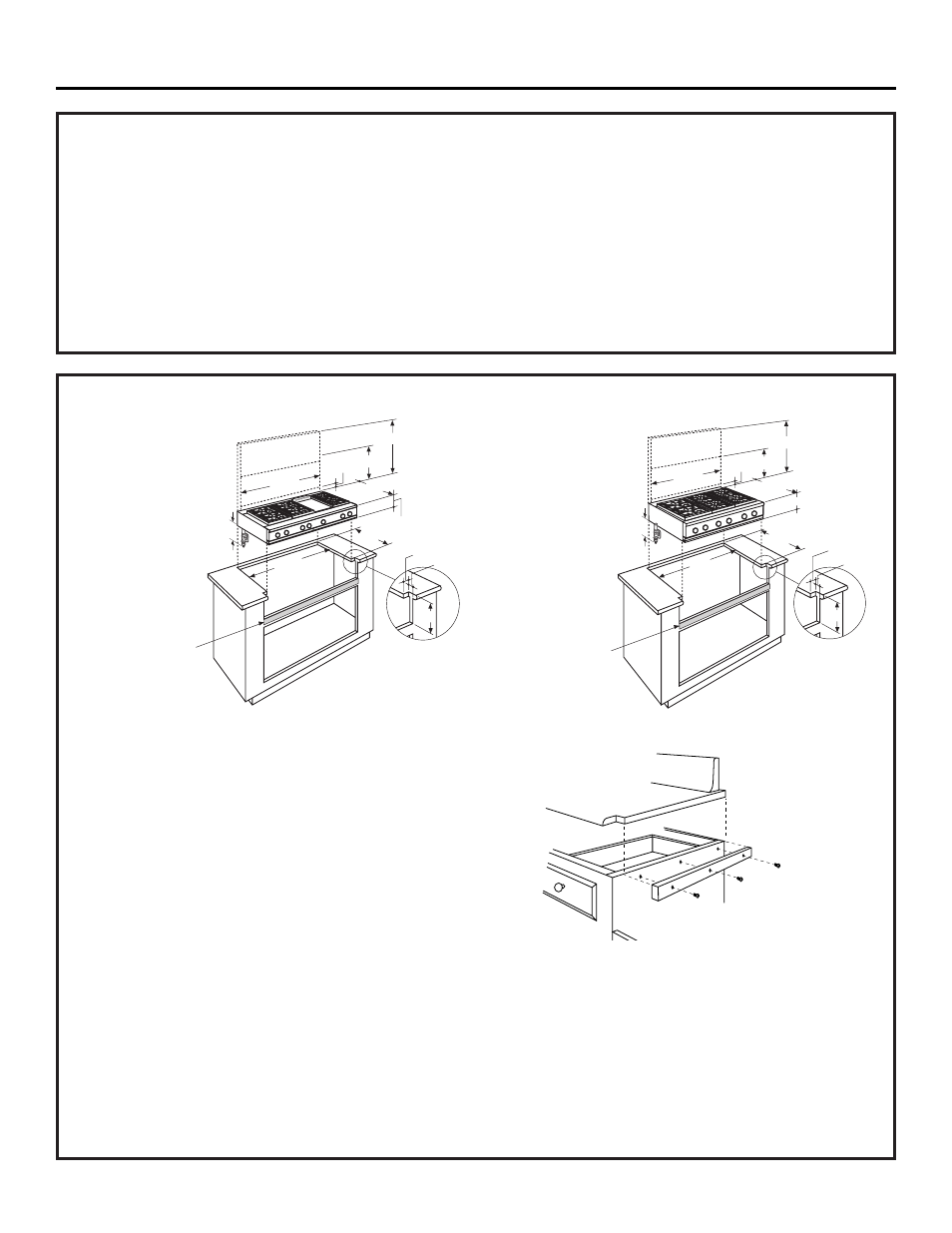

48" wide models are designed to fit in 48" or wider base cabinets 36" wide models are designed to fit in 36" or wider base cabinets
Allow Additional
Clearance Below
the Cooktop Burner
Box for the Regulator
and Gas Connections
8"
2-1/2"
7/8"
46-1/8"
22-3/4"
8-7/16"
26-5/8"
47-7/8"
22"
12" 1/2"
Available
Backsplas
h
Install a Matching Trim
Strip to Cover the Cut
Edge Below the Cooktop 8"
2-1/2"
1/2"
35"
22-3/4"
26-5/8"
8-7/16"
35-7/8"
22"
12" 1/2"
Available
Backsplash
Allow Additional
Clearance Below
the Cooktop Burner
Box for the Regulator
and Gas Connections
Install a Matching Trim
Strip to Cover the Cut
Edge Below the Cooktop
7
REMOVE PACKAGING
Use a hand-truck to move this cooktop.
Before moving the cooktop indoors:
• Remove outer carton and packing.
• Remove the straps holding the cooktop to the skid.
• Remove the grates and drawer, below the knobs
(on grill and griddle models).
• Remove grill and/or griddle covers. DO NOT ATTEMPT
TO REMOVE A GRILL OR GRIDDLE ASSEMBLY.
• Flatten the carton and use a piece as a pad on the
bottom and back of the hand-truck. Lift the cooktop onto
the hand-truck standing on its end, with the bottom of
the cooktop resting against the back of the hand-truck.
Move the cooktop indoors:
If door and passageways into the installation location are
less than 30" wide, remove the cooktop knobs.
STEP 1
CUT THE COUNTERTOP OPENING STEP 2
Installation
Counter Sunk
Screws
Adjacent Cabinet
and Countertop
