ITEM PART NO. QTY. DESCRIPTION
1 0E6134 1 MUFFLER, 3.0L FORD
2 0E6464 2 EXHAUST ELBOW 3.0L FORD HSB
3 0E6465 1 EXHAUST PIPE LH 3.0L FORD HSB
4 0E6465A 1 EXHAUST PIPE RH 3.0L FORD HSB
5 0E5914 1 BRACKET MUFFLER 3.0L FORD
HSB
6 060366 1 MUFFLR STRAP 6IN DIA
7 027837 1 SCREW RHM 1/4-20 X 2-1/4
8 036797 4 BOLT U 5/16-18 X 2.25
9 039253 2 SCREW HHC M8-1.25 X 20 G8.8
10 022145 2 WASHER FLAT 5/16-M8 ZINC
ITEM PART NO. QTY. DESCRIPTION
11 022129 10 WASHER LOCK M8-5/16
12 045771 2 NUT HEX M8-1.25 G8 YEL CHR
13 0C2454 4 SCREW TH-FRM M6-1X16 N WA
Z/JS
17 044149 2 GASKET EXHAUST RING
18 0E0170 2 EXHAUST BLANKET 750MM
19 085917 4 WASHER LOCK 3/8 SS
20 0D2611 4 SCREW HHC 3/8-16 X 1-3/4 SS
21 081265 2 MOUNTING FLANGE
22 022259 8 NUT HEX 5/16-18 STEEL
MANIFOLD
2
8
1
13
13
7
6
9
MANIFOLD
18
3
8
20
19
21
17
18
TO
COMPARTMENT
TO
10
13
8
2
12
10
11
11
13
11
22
8
12
5
4
TO
19
20
21
17
44 Generac ® Power Systems, Inc.
Section 9 - Exploded Views and Parts
Guardian Liquid-cooled 27 kW and 30 kW Generators

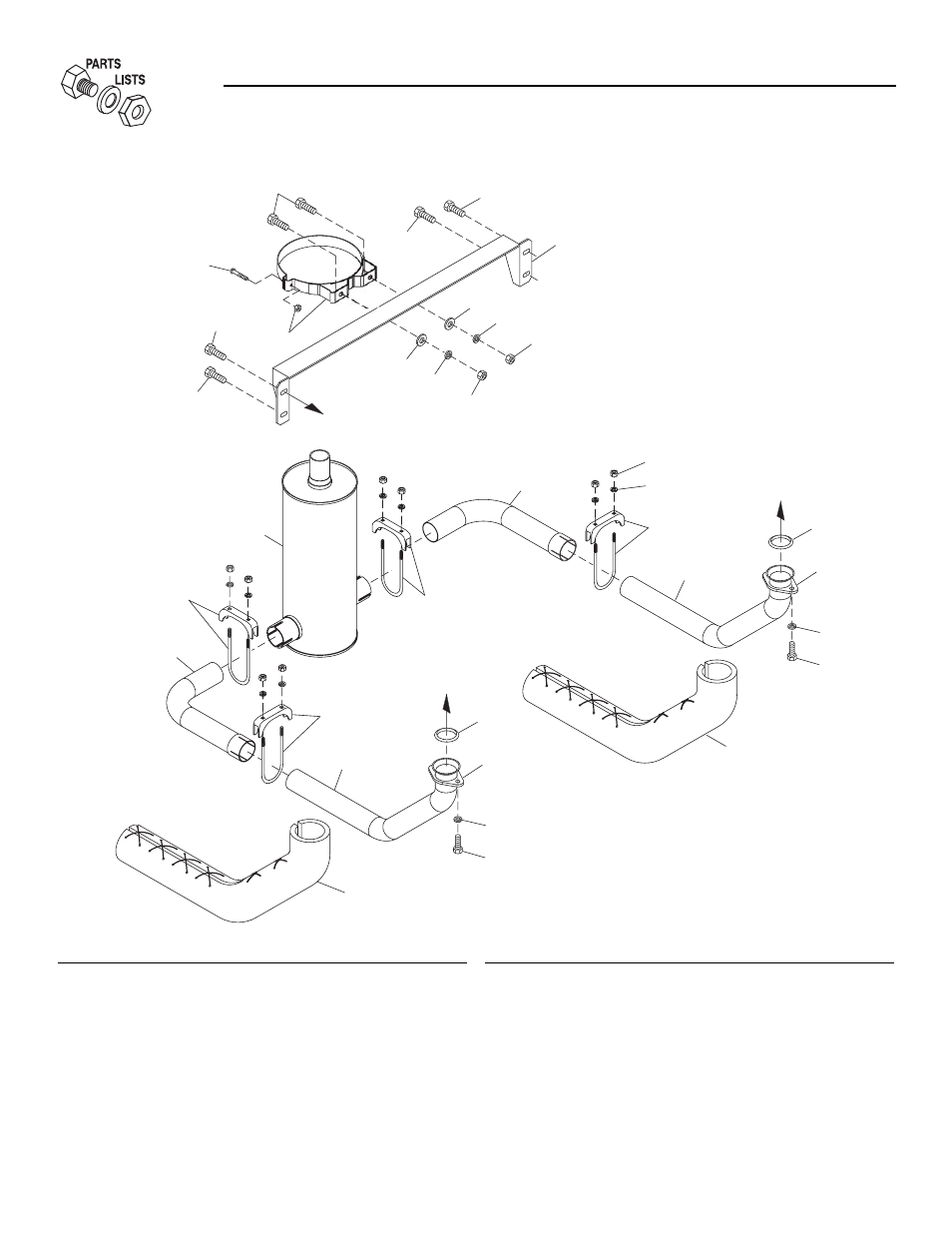

Muffler — Drawing No. 0E6479-E
