Gold's Gym Platinum GGBE0957.0 - Manual (Page 7)

7
2
1
29
4
26
3
4
3
1
9
Holes
Holes
9
8
25
27
27
27
27
29
29
25
19
19

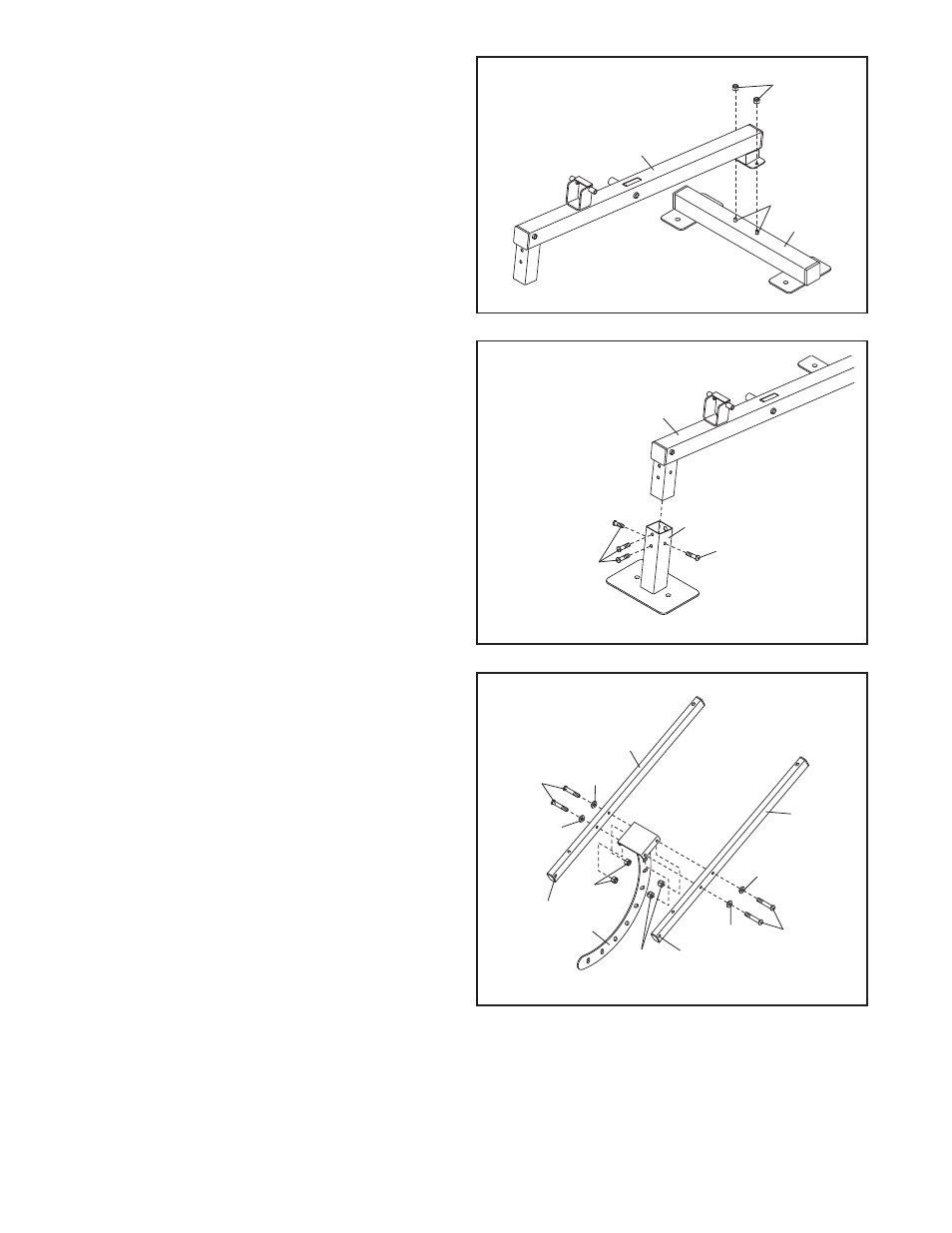

2. Attach the Frame (1) to the Base (4) with the
two M8 x 70mm Carriage Bolts (26) and two
M8 Nylon Locknuts (29).
Do not tighten the
Nylon Locknuts yet.
3. Attach the Front Stabilizer (3) to the Frame (1)
with four M8 x 15mm Screws (19).
See step 2. Tighten the M8 Nylon Locknuts
(29).
4. Orient the two Backrest Tubes (9) so that the
indicated holes are closer to the tops of the
Backrest Tubes.
Attach the Backrest Bracket (8) to the Backrest
Tubes (9) with four M8 x 40mm Bolts (25), four
M8 Washers (27), and four M8 Nylon
Locknuts (29).
Do not tighten the Nylon
Locknuts yet.
