g0665 slow speed Cold Cut saw
-17-
To set the cutting angle:
1. disConneCt sAW FroM poWer!
2. Move the miter lock lever to the left to release
the saw pivot ( figure 18).
figure 18. Miter lock lever.
3. rotate the saw to the desired angle using the
scale as a guide. When the desired angle is
reached, lock the saw in position by moving
the lever to the right.
4. test the blade clearance by lowering the
saw. if necessary, move the adjustable vise
jaw and the auxiliary stability bracket to pro-
vide adequate clearance, as outlined in
vise
on Page 18.
5. return the saw to the upright position.
Cutting Angle
Saw Lever: lowers the saw into the workpiece.
Trigger Switch: turns the motor ON, spinning
the blade and activating the cutting fluid pump.
Miter Lock Lever: releases or locks rotation of
the saw base for angled cuts.
Work Stop: set at a particular distance from the
blade to produce multiple same-length cuts.

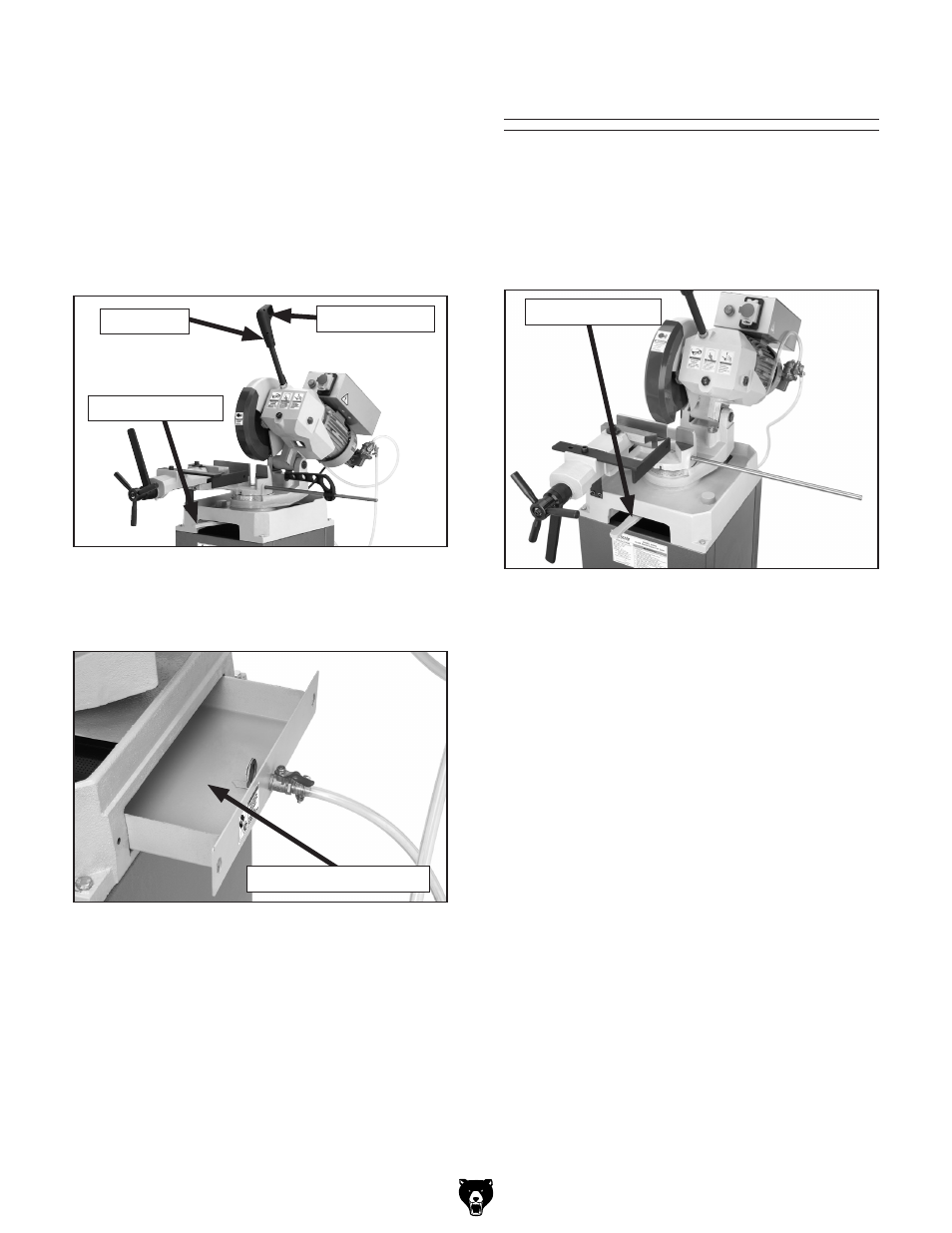

figure 16. saw controls.
figure 17. Cutting fluid reservoir.
Cutting fluid Reservoir: holds cutting fluid and
can be removed for disposal and cleaning.
saw lever trigger switch
Miter lock lever
Cutting Fluid reservoir
Miter lock lever
